Product Specifications
| Manufacturer Part Number | 02503392 |
| Body Diameter (Decimal Inch) | 5.118" |
| Body Diameter (mm) | 130.00mm |
| Minimum Cutting Diameter (Decimal Inch) | 8.032" |
| Minimum Cutting Diameter (mm) | 204.00mm |
| Connection Diameter Workpiece Side (Decimal Inch) | 1.575" |
| Connection Diameter Workpiece Side (mm) | 40.00mm |
| Maximum Cutting Diameter (Decimal Inch) | 25.787" |
| Maximum Cutting Diameter (mm) | 655.00mm |
| Shank Diameter (Decimal Inch) | 1.575" |
| Shank Diameter (mm) | 40.00mm |
| Functional Length (Decimal Inch) | 2.559" |
| Functional Length (mm) | 65.00mm |
| Overall Length (Decimal Inch) | 6.565" |
| Overall Length (mm) | 166.75mm |
| Data Chip Provision | 1 |

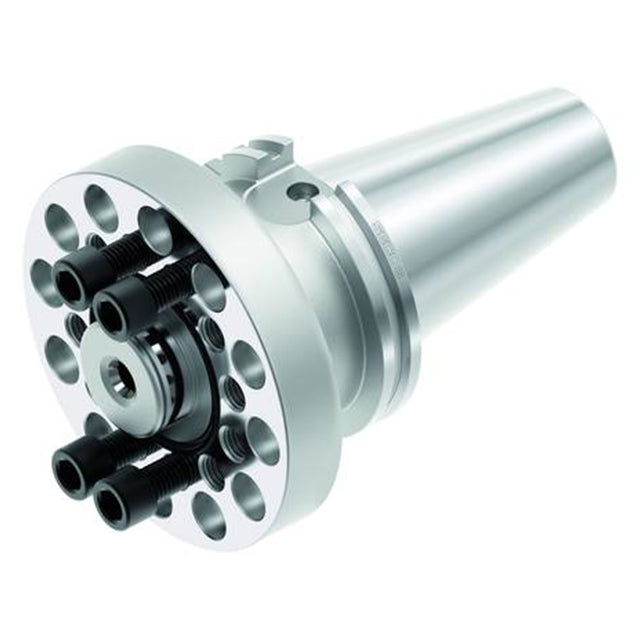

| Product Type | End Mill Adapter |
