Product Specifications
| Manufacturer Part Number | 02503383 |
| Body Diameter (Decimal Inch) | 2.480" |
| Body Diameter (mm) | 63.00mm |
| Body Diameter 1 (Decimal Inch) | 3.858" |
| Body Diameter 1 (mm) | 98.00mm |
| Connection Bore Diameter (Decimal Inch) | 1.417" |
| Connection Bore Diameter (mm) | 36.00mm |
| Body Length (Decimal Inch) | 0.984" |
| Body Length (mm) | 25.00mm |
| Functional Length (Decimal Inch) | 2.480" |
| Functional Length (mm) | 63.00mm |
| Overall Length (Decimal Inch) | 6.488" |
| Overall Length (mm) | 164.80mm |
| Data Chip Provision | 1 |

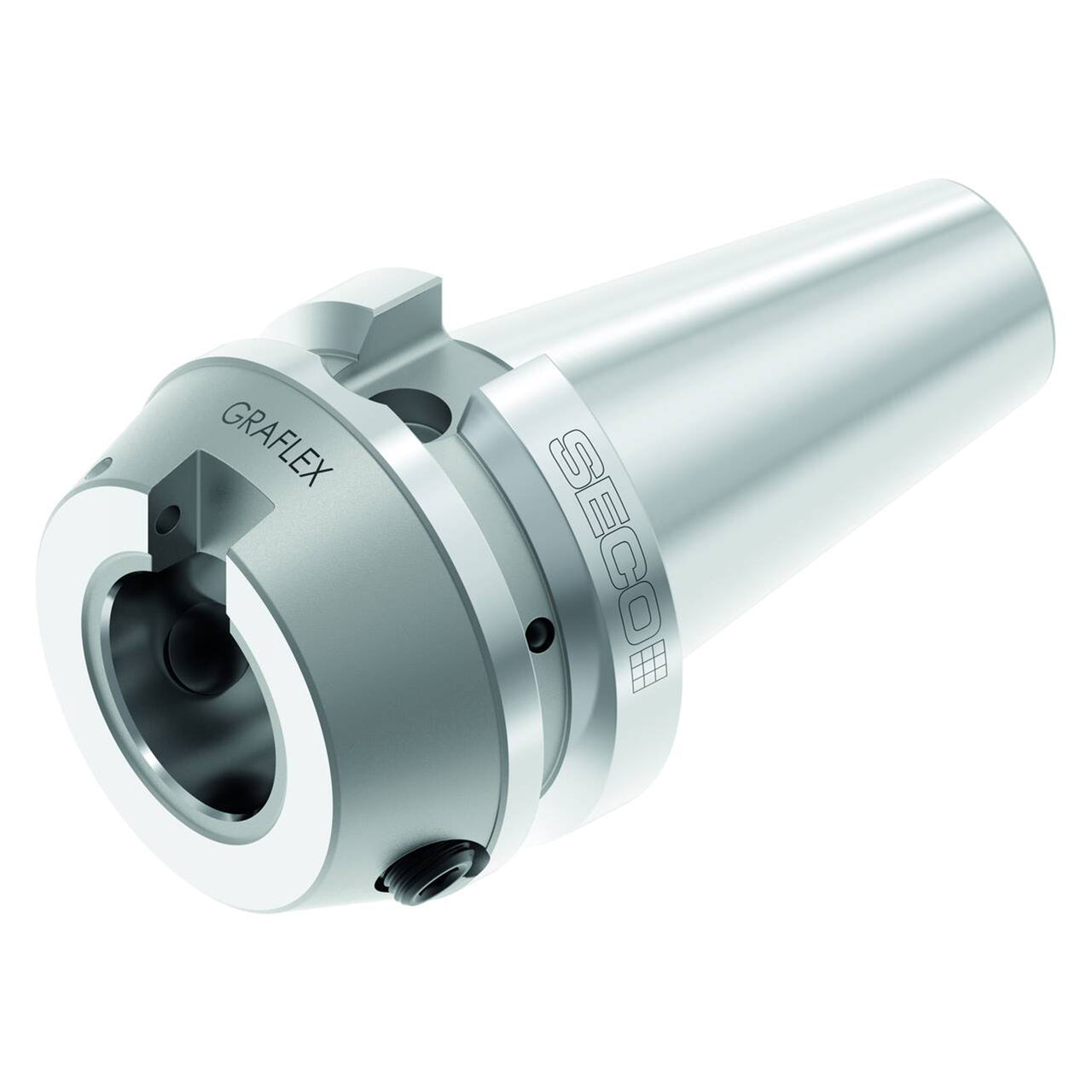

| Product Type | Modular Tool Holding System Adapter |
