Product Specifications
| Manufacturer Part Number | 02503368 |
| Body Diameter (Decimal Inch) | 1.575" |
| Body Diameter (mm) | 40.00mm |
| Body Diameter 1 (Decimal Inch) | 2.441" |
| Body Diameter 1 (mm) | 62.00mm |
| Connection Bore Diameter (Decimal Inch) | 0.866" |
| Connection Bore Diameter (mm) | 22.00mm |
| Body Length (Decimal Inch) | 0.709" |
| Body Length (mm) | 18.00mm |
| Functional Length (Decimal Inch) | 1.772" |
| Functional Length (mm) | 45.00mm |
| Overall Length (Decimal Inch) | 4.347" |
| Overall Length (mm) | 110.40mm |
| Data Chip Provision | 1 |

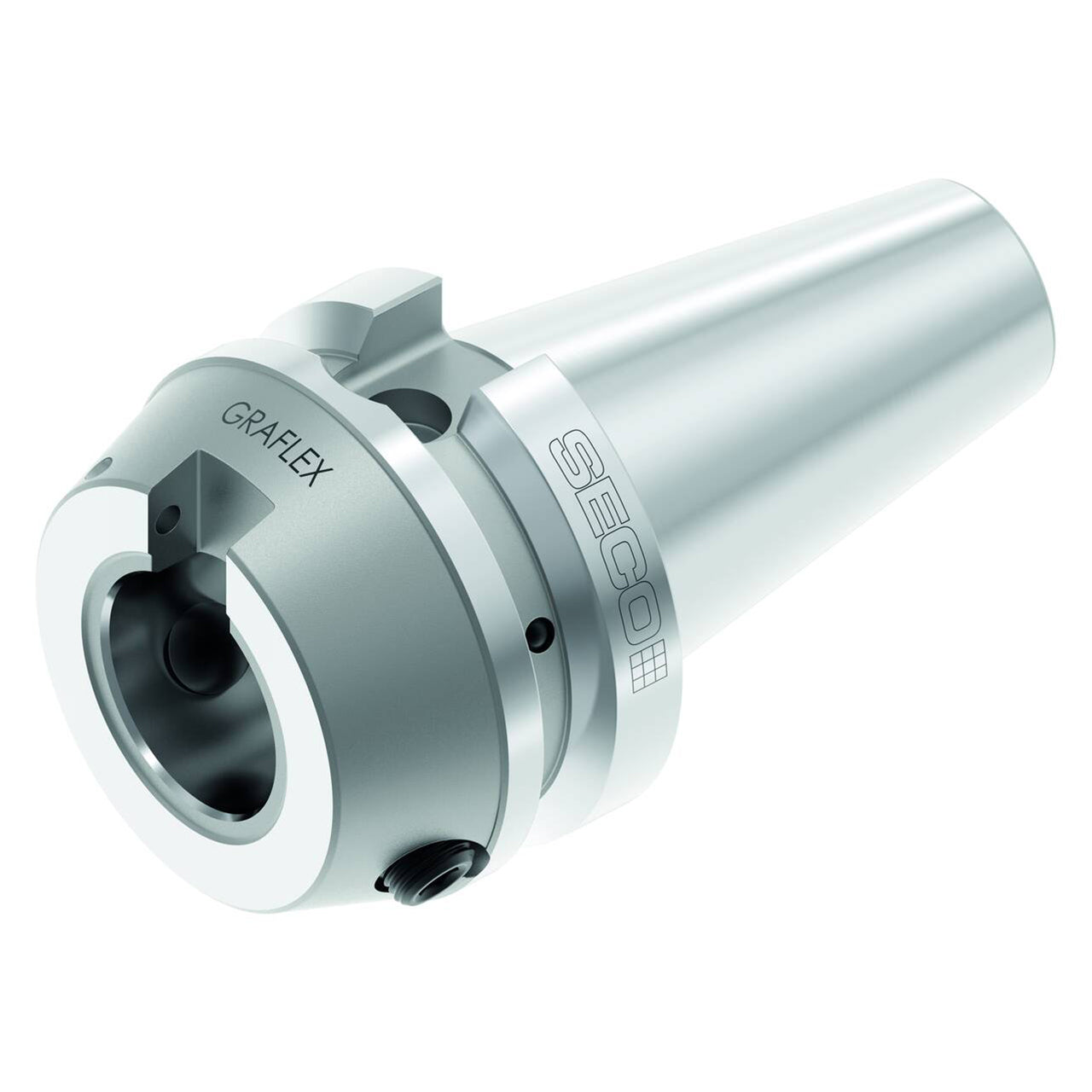

| Product Type | Modular Tool Holding System Adapter |
