Product Specifications

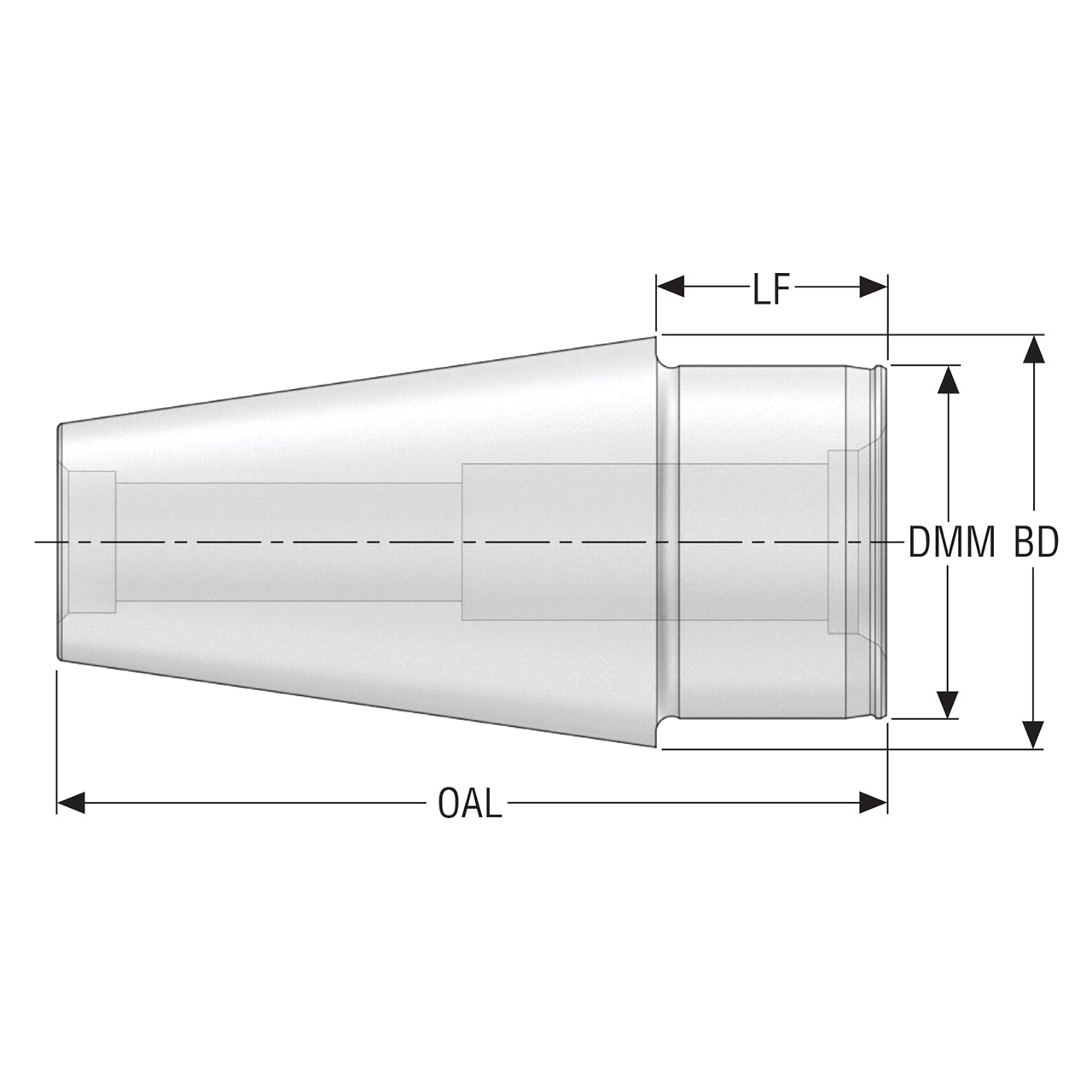

| Manufacturer Part Number | 02502471 |
| Body Diameter (Decimal Inch) | 2.756" |
| Body Diameter (mm) | 70.00mm |
| Minimum Cutting Diameter (Decimal Inch) | 25.748" |
| Minimum Cutting Diameter (mm) | 654.00mm |
| Connection Diameter Workpiece Side (Decimal Inch) | 2.362" |
| Connection Diameter Workpiece Side (mm) | 60.00mm |
| Maximum Cutting Diameter (Decimal Inch) | 84.843" |
| Maximum Cutting Diameter (mm) | 2155.00mm |
| Shank Diameter (Decimal Inch) | 2.362" |
| Shank Diameter (mm) | 60.00mm |
| Functional Length (Decimal Inch) | 1.535" |
| Functional Length (mm) | 39.00mm |
| Overall Length (Decimal Inch) | 5.537" |
| Overall Length (mm) | 140.65mm |
| Data Chip Provision | 1 |

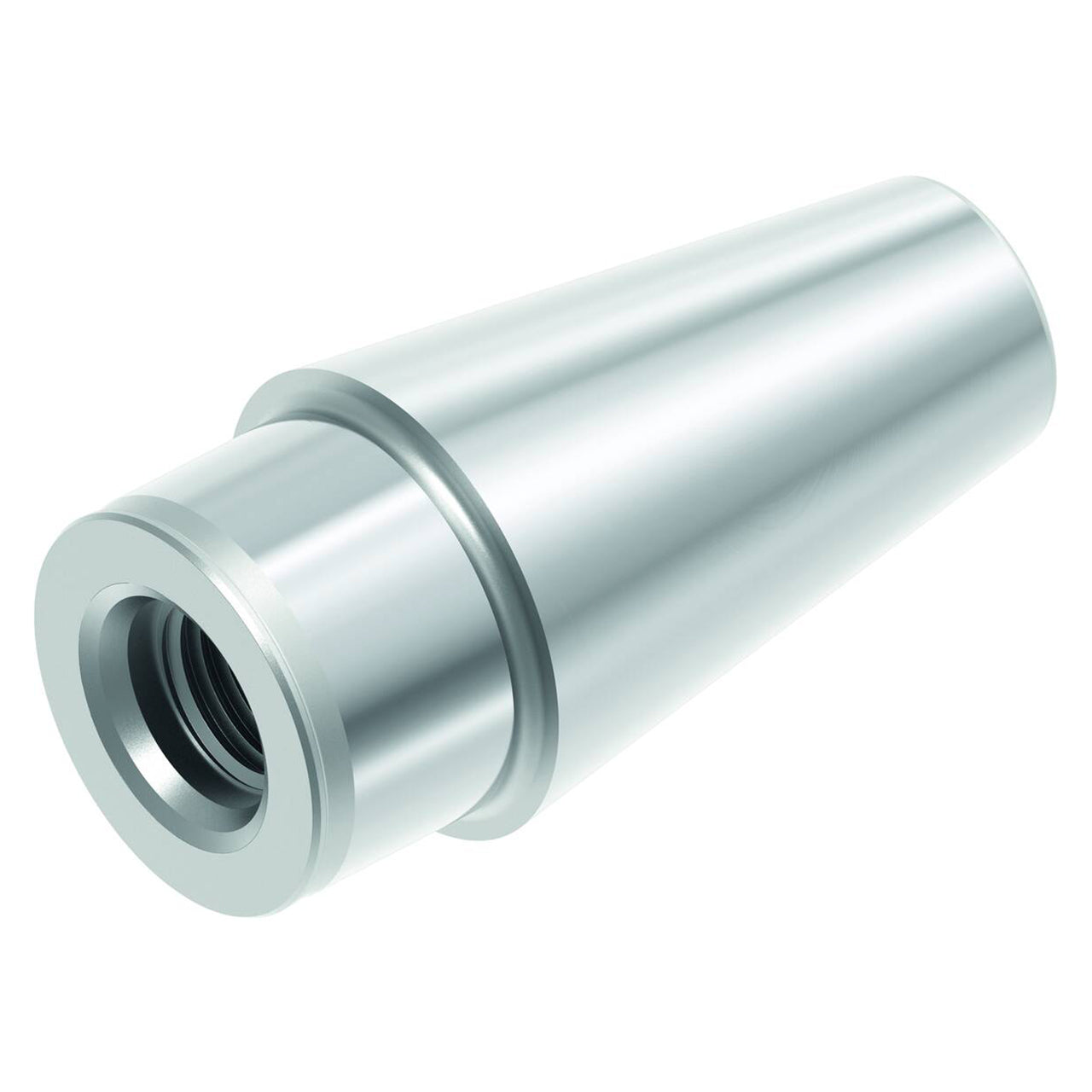

| Product Type | End Mill Adapter |
