Product Specifications
| Manufacturer Part Number | 02486653 |
| Cutting Diameter (Decimal Inch) | 6.299" |
| Cutting Diameter (mm) | 160.00mm |
| Connection Bore Diameter (Decimal Inch) | 2.000" |
| Connection Bore Diameter (mm) | 50.80mm |
| Maximum Cutting Diameter (Decimal Inch) | 6.890" |
| Maximum Cutting Diameter (mm) | 175.00mm |
| Contact Surface Diameter Machine Side (Decimal Inch) | 3.543" |
| Contact Surface Diameter Machine Side (mm) | 90.00mm |
| Functional Length (Decimal Inch) | 2.480" |
| Functional Length (mm) | 63.00mm |
| Keyway Width (Decimal Inch) | 0.756" |
| Keyway Width (mm) | 19.20mm |
| Maximum Depth of Cut (Decimal Inch) | 0.295" |
| Maximum Depth of Cut (mm) | 7.50mm |
| Depth of Key Way (Decimal Inch) | 0.441" |
| Depth of Key Way (mm) | 11.20mm |
| Tool Cutting Edge Angle (Degree) | 45 Degree |
| Tool Cutting Edge Angle In Feed Direction Side (Degree) | 45 Degree |
| Rake Radial Angle (Degree) | -5 Degree |
| Rake Orthogonal Angle (Degree) | 10 Degree |
| Cutting Direction | Right Hand |
| Maximum Rotational Speed (rpm) | 5200 rpm |
| Cutting Pitch Differential | 1 |
| Cutting Pitch Density | Normal |
| Pocket Seat Code of The Cutter | SE.X1505 |
| Cutting Item Material Type | Steel |
| Shank Type | Arbor |
| Insert Shape Code | S |

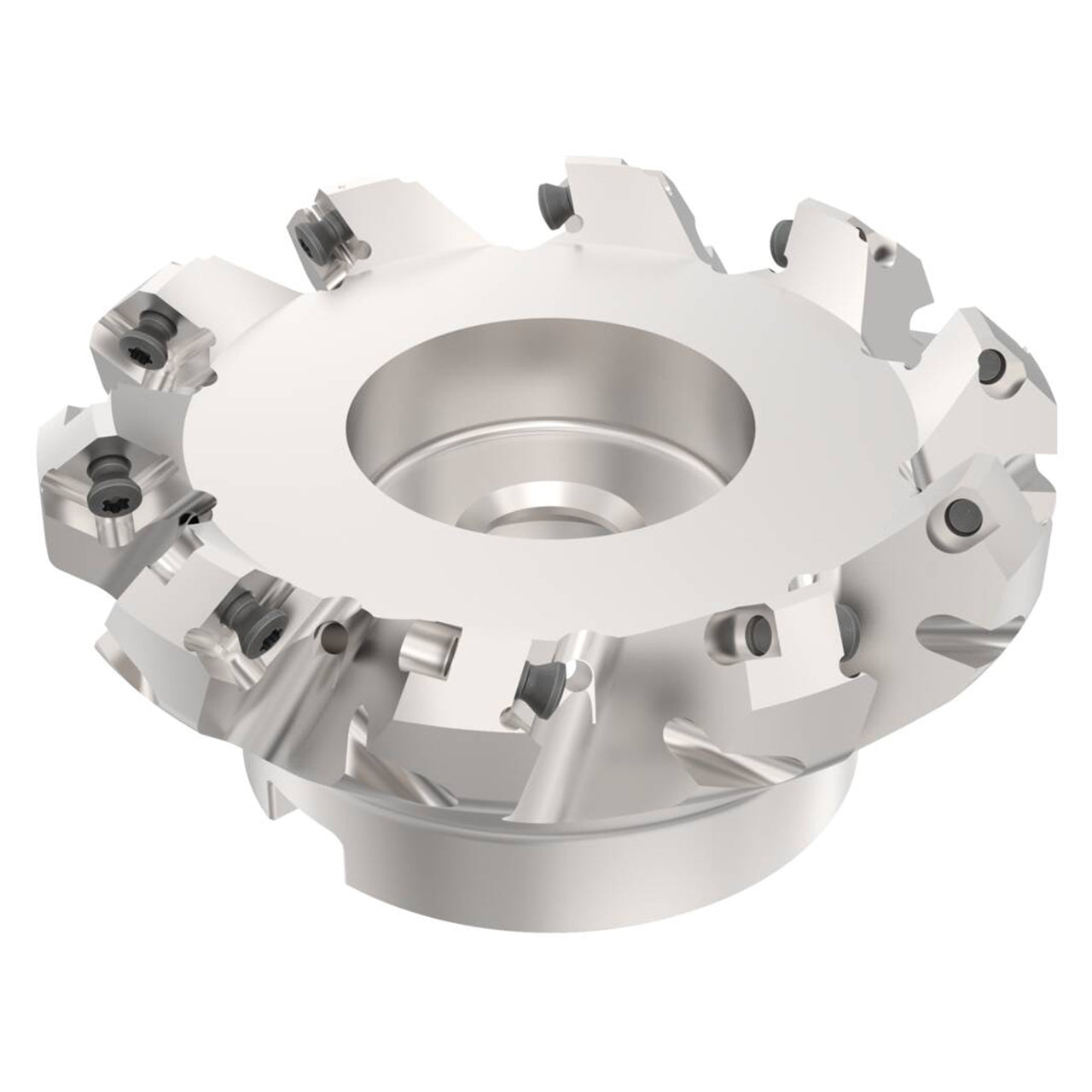

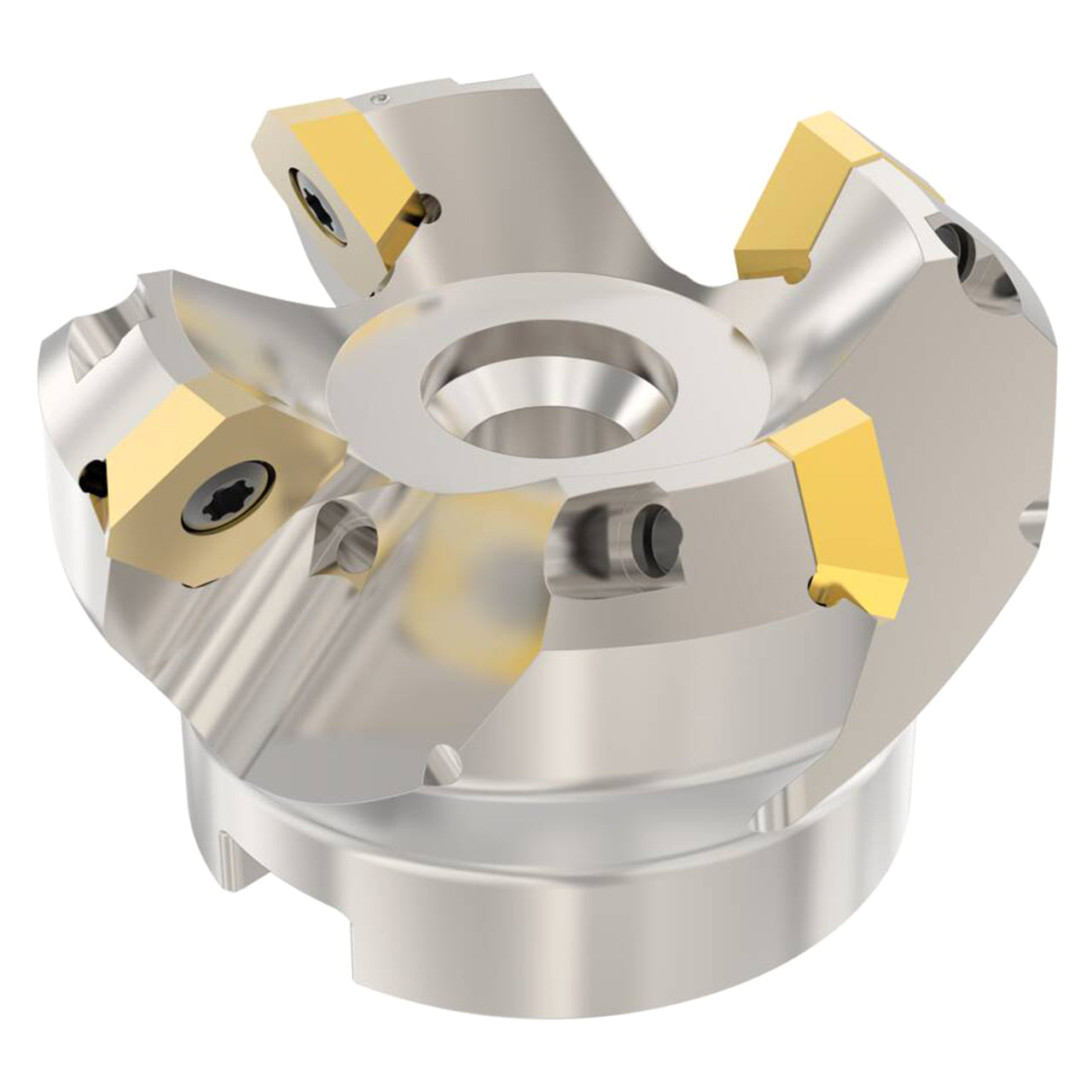

| Product Type | Indexable Chamfer & Angle Face Mill |
