Product Specifications
| Manufacturer Part Number | 02484029 |

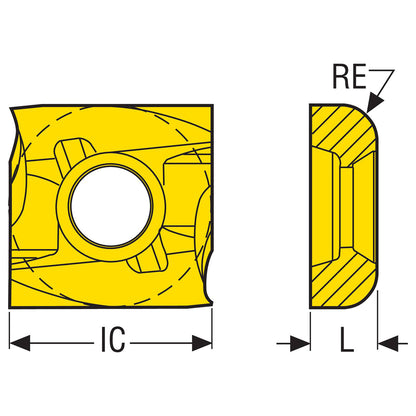

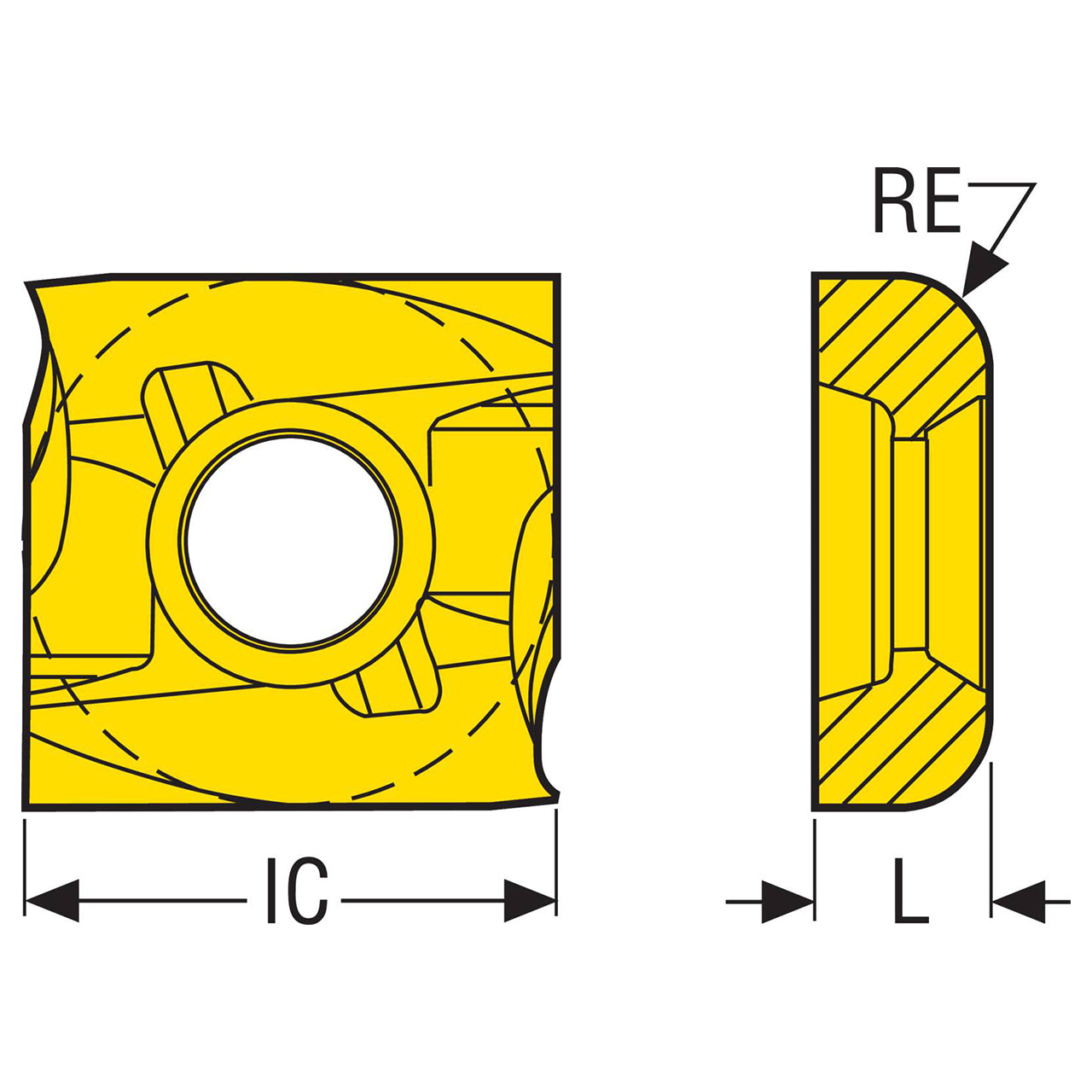

| Inscribed Circle Diameter (Decimal Inch) | 0.500" |
| Inscribed Circle Diameter (mm) | 12.70mm |
| Cutting Edge Effective Length (Decimal Inch) | 0.244" |
| Cutting Edge Effective Length (mm) | 6.20mm |
| Shank Width (Decimal Inch) | 1.000" |
| Shank Width (mm) | 25.40mm |
| Functional Width (Decimal Inch) | 1.250" |
| Functional Width (mm) | 31.75mm |
| Corner Radius (Decimal Inch) | 0.122" |
| Corner Radius (mm) | 3.10mm |
| Cutting Edge Count | 2 |
| Cutting Geometry Type Technical | M07 |
| Pocket Seat Code of The Cutter | 335.19-1207 |
| Insert Size And Shape | SNHQ1207 |
| Insert Rake Angle (Degree) | 20 Degree |
| Insert Hand | Right Hand |
| Material | Carbide |

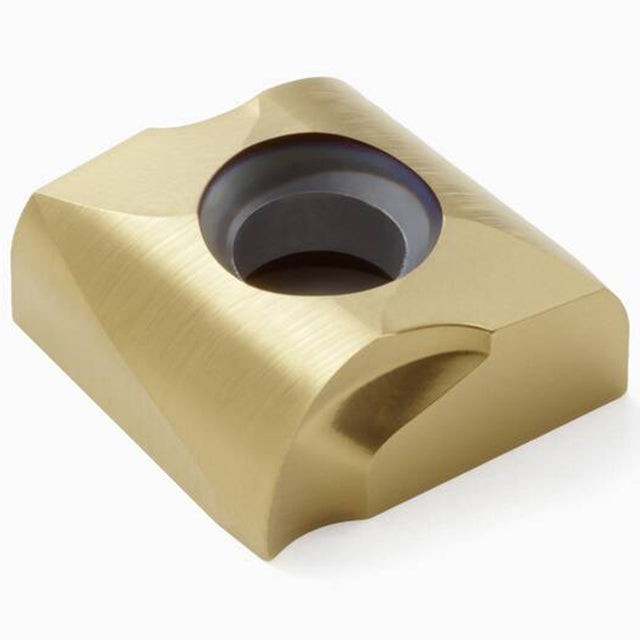

| Product Type | Disc Milling Insert |
