Product Specifications
| Manufacturer Part Number | 02483996 |
| Functional Length (Decimal Inch) | 5.000" |
| Functional Length (mm) | 127.00mm |
| Head Length (Decimal Inch) | 0.900" |
| Head Length (mm) | 22.86mm |
| Shank Width (Decimal Inch) | 0.750" |
| Shank Width (mm) | 19.05mm |
| Height of Tool Holder Shank (Decimal Inch) | 0.750" |
| Height of Tool Holder Shank (mm) | 19.05mm |
| Functional Width (Decimal Inch) | 1.000" |
| Functional Width (mm) | 25.40mm |
| Cutting Direction | Right Hand |
| Insert Clamping System | C |
| Shank Type | Square Shank |

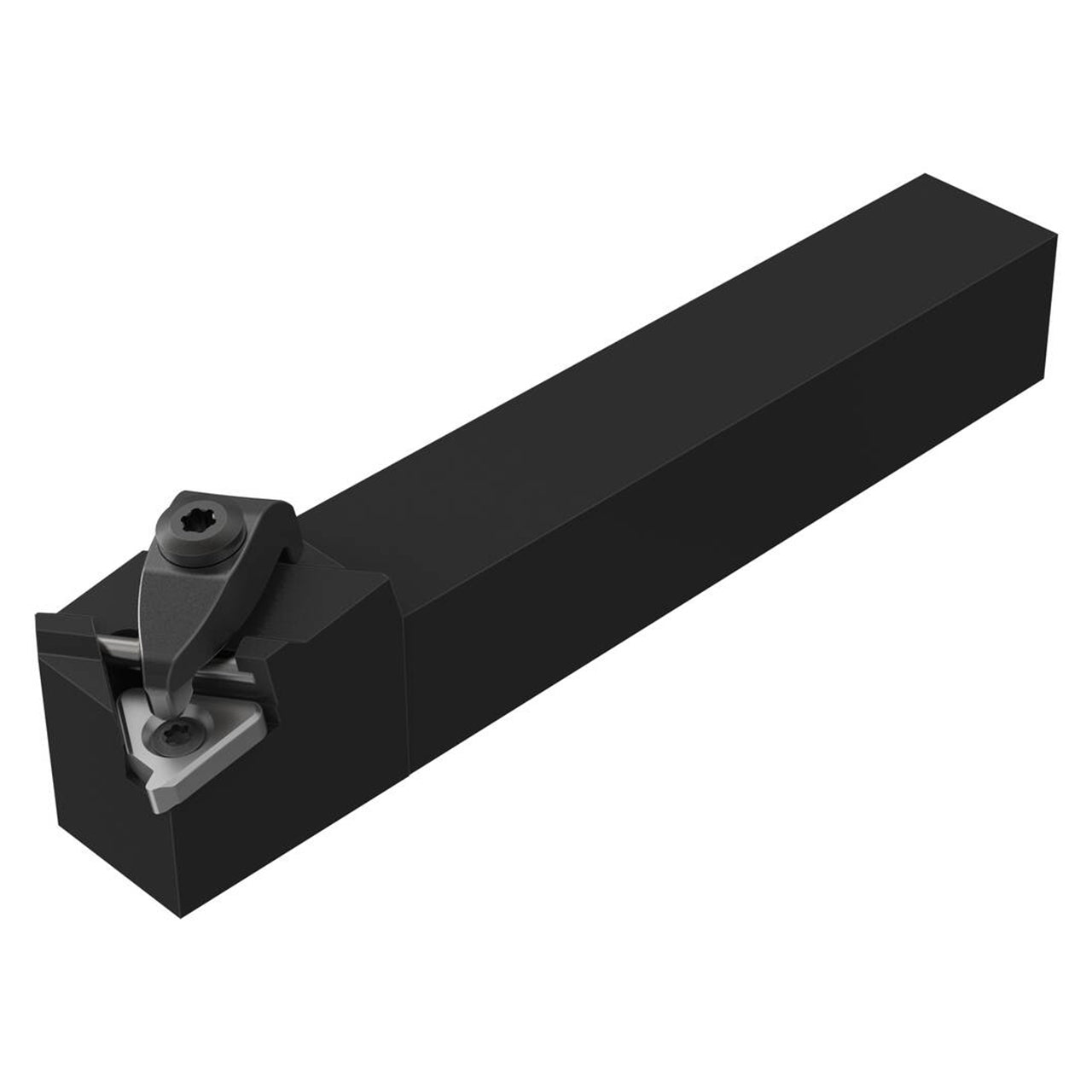

| Product Type | Indexable Threading Toolholder |
