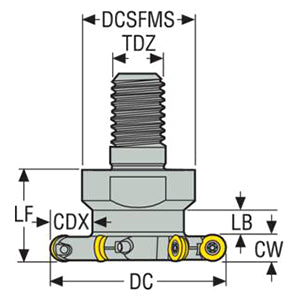

Product Specifications
| Manufacturer Part Number | 02477694 |
| Cutting Diameter (Decimal Inch) | 1.500" |
| Cutting Diameter (mm) | 38.10mm |
| Contact Surface Diameter Machine Side (Decimal Inch) | 0.906" |
| Contact Surface Diameter Machine Side (mm) | 23.00mm |
| Maximum Cutting Diameter (Decimal Inch) | 1.500" |
| Maximum Cutting Diameter (mm) | 38.10mm |
| Thread Diameter Size | M12 |
| Functional Length (Decimal Inch) | 1.102" |
| Functional Length (mm) | 28.00mm |
| Maximum Depth of Cut (mm) | 6.00mm |
| Maximum Depth of Cut (Decimal Inch) | 0.236" |
| Maximum Cutting Depth (Decimal Inch) | 0.297" |
| Maximum Cutting Depth (mm) | 7.55mm |
| Connection Mounting Torque (Nm) | 60.0 Nm |
| Cutting Width (Decimal Inch) | 0.236" |
| Cutting Width (mm) | 6.00mm |
| Cutting Pitch Density | Normal |
| Cutting Direction | Right Hand |
| Tool Cutting Edge Angle (Degree) | 90 Degree |
| Tool Cutting Edge Angle In Feed Direction End (Degree) | 90 Degree |
| Tool Cutting Edge Angle In Feed Direction Side (Degree) | 90 Degree |
| Maximum Rotational Speed (rpm) | 33700 rpm |
| Shank Type | Combimaster |

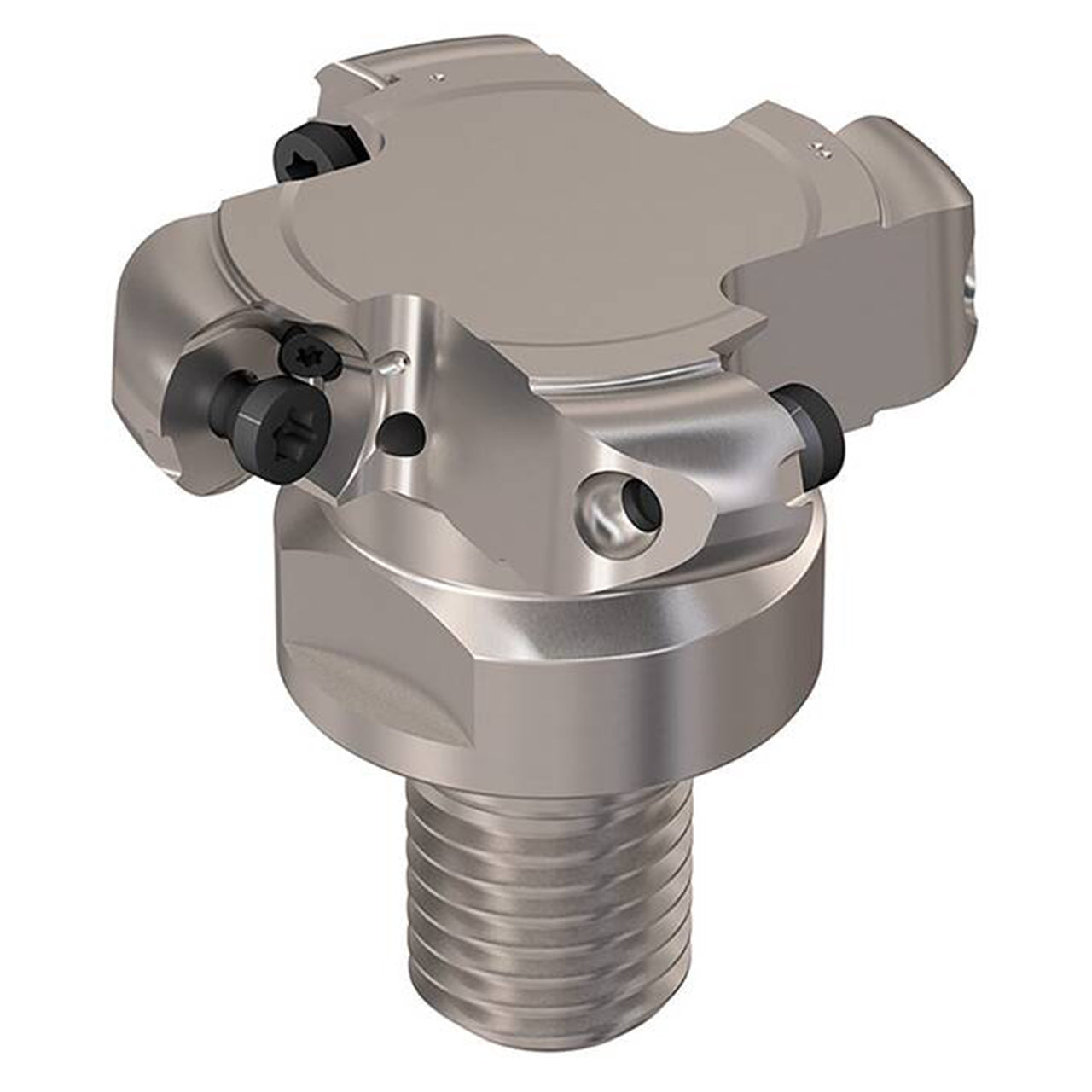

| Product Type | Indexable Slotting Cutter |
