Product Specifications

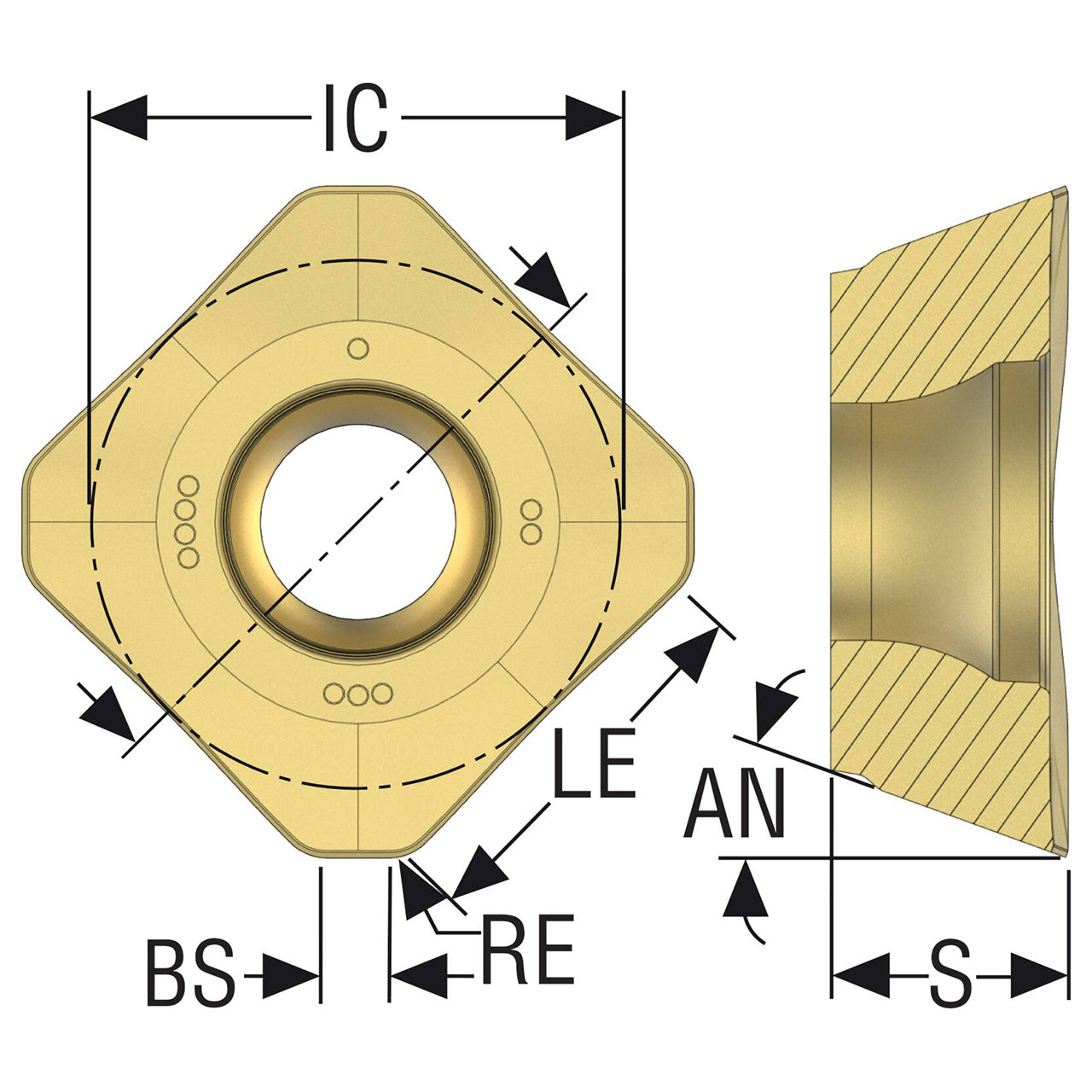

| Manufacturer Part Number | 02466767 |
| Fixing Hole Diameter (Decimal Inch) | 0.221" |
| Fixing Hole Diameter (mm) | 5.60mm |
| Inscribed Circle Diameter (Decimal Inch) | 0.625" |
| Inscribed Circle Diameter (mm) | 15.88mm |
| Wiper Edge Length (Decimal Inch) | 0.071" |
| Wiper Edge Length (mm) | 1.80mm |
| Cutting Edge Effective Length (Decimal Inch) | 0.406" |
| Cutting Edge Effective Length (mm) | 10.30mm |
| Functional Width (Decimal Inch) | 0.188" |
| Functional Width (mm) | 4.78mm |
| Corner Radius (Decimal Inch) | 0.059" |
| Corner Radius (mm) | 1.50mm |
| Insert Thickness (Decimal Inch) | 0.219" |
| Insert Thickness (mm) | 5.56mm |
| Clearance Angle Major (Degree) | 20 Degree |
| Cutting Edge Count | 4 |
| Cutting Geometry Type Technical | E10 |
| Pocket Seat Code of The Cutter | SE.X1505 |
| Insert Size And Shape | SEEX1505 |
| Insert Rake Angle (Degree) | 25 Degree |
| Insert Hand | Neutral |
| Material | Carbide |

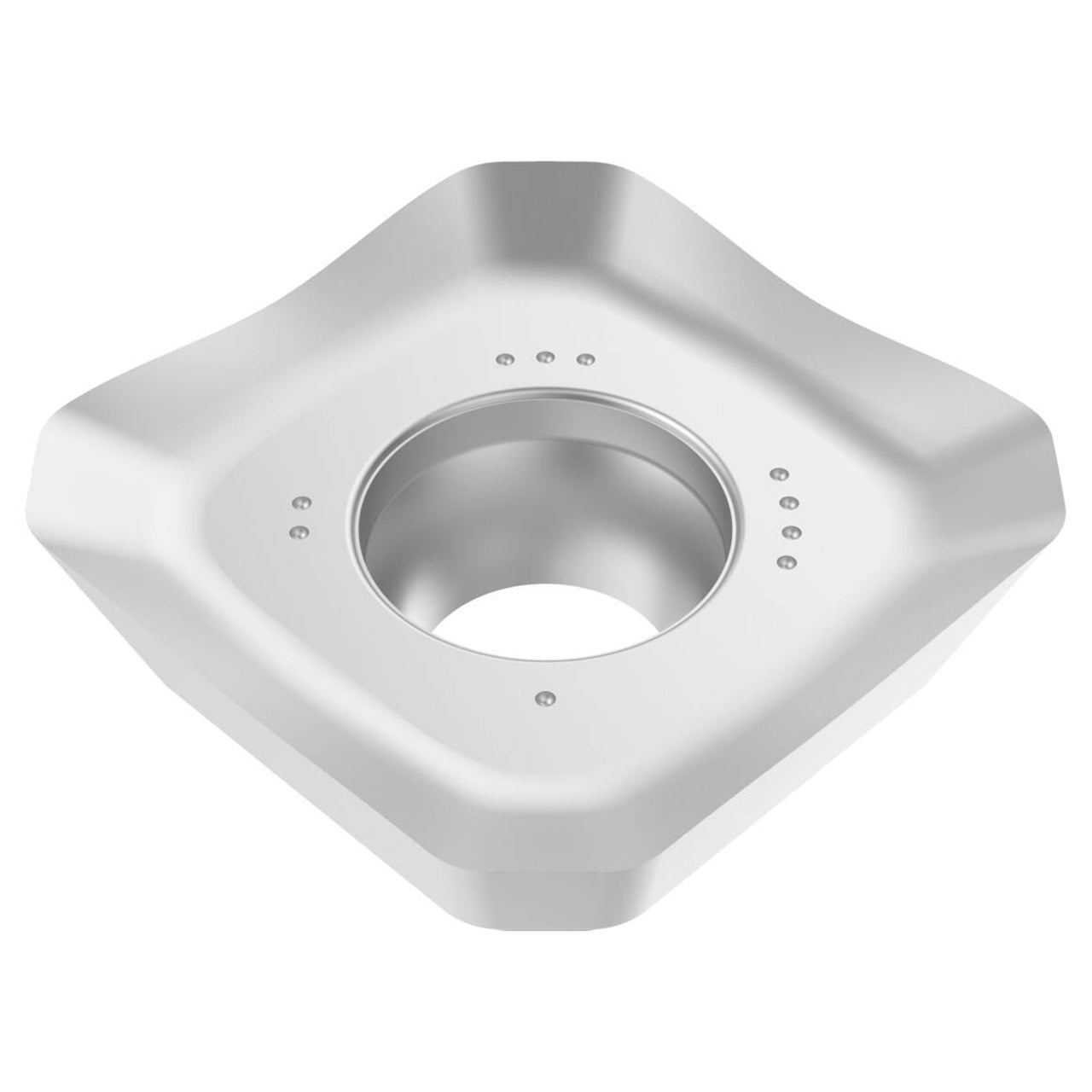

| Product Type | Quattromill Insert |
