Product Specifications
| Manufacturer Part Number | 02462850 |
| Minimum Cutting Diameter (mm) | 24.00mm |
| Connection Diameter Machine Side (mm) | 25.00mm |
| Maximum Cutting Diameter (mm) | 25.99mm |
| Flange Diameter (mm) | 31.00mm |
| Shank Diameter (mm) | 25.00mm |
| Body Diameter (mm) | 23.50mm |
| Shank Length (mm) | 56.00mm |
| Usable Length (mm) | 125.00mm |
| Overall Length (mm) | 214.50mm |
| Coolant Entry Style Code | 4 |
| Coolant Supply Property | 1 |
| Coolant Exit Style Code | 4 |

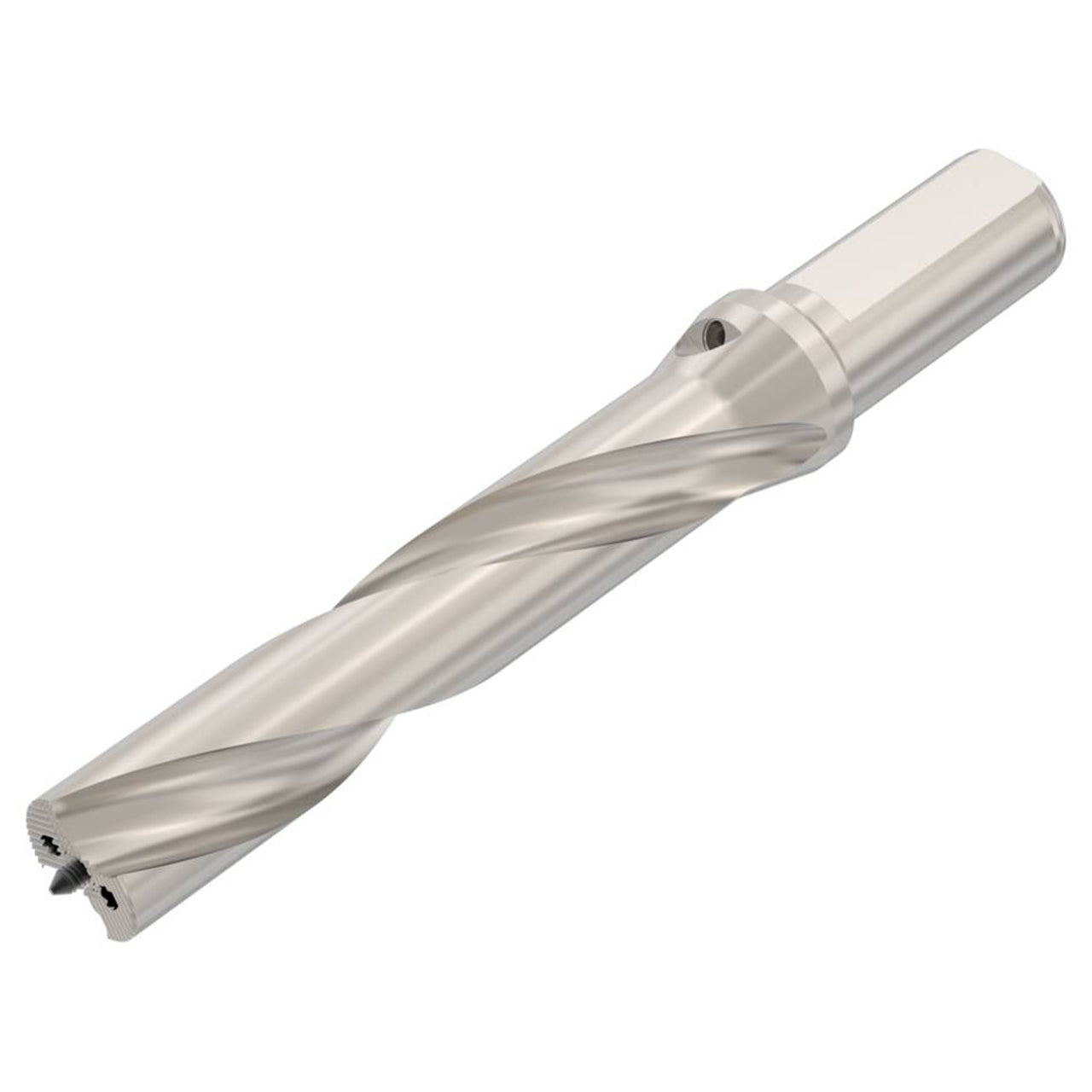

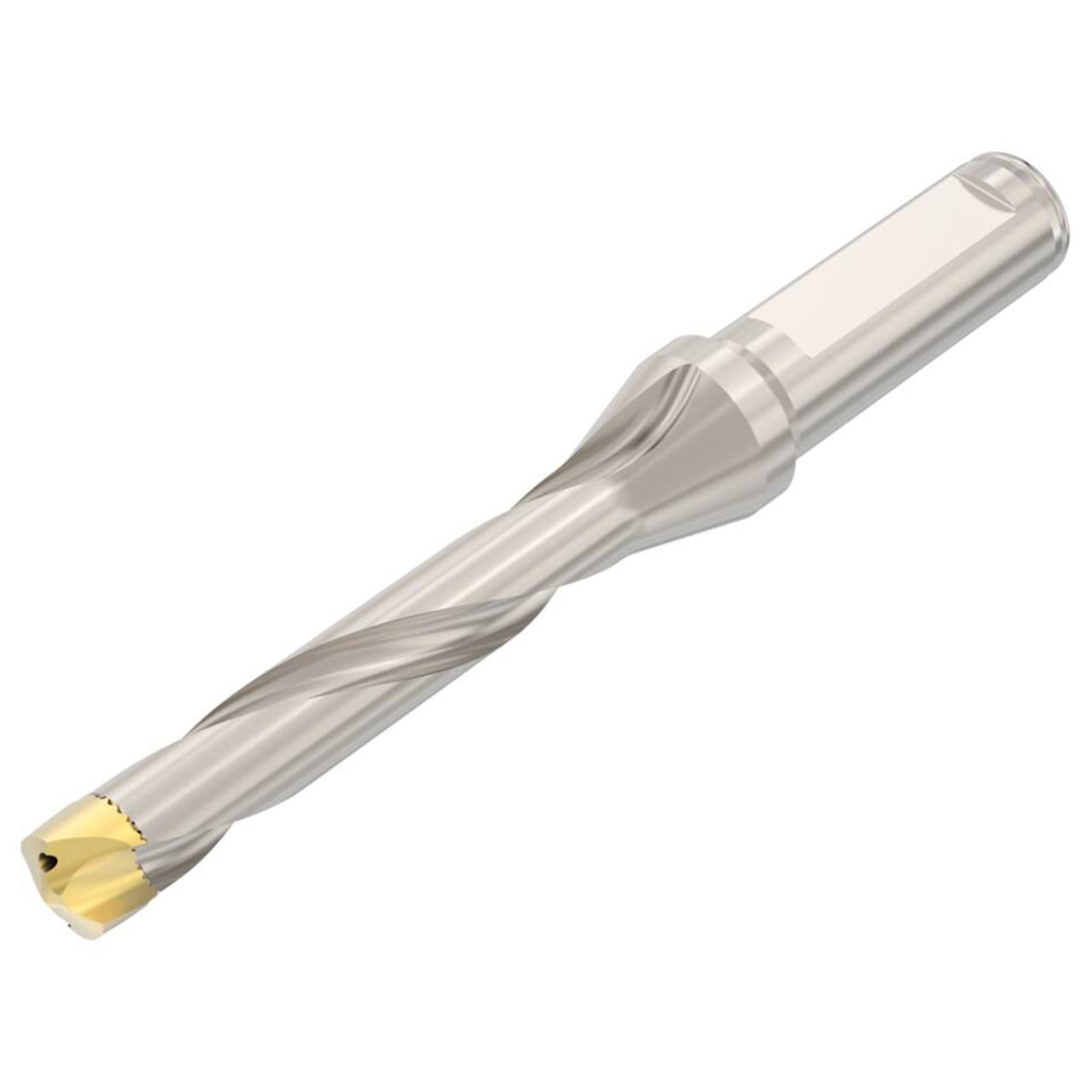

| Product Type | Replaceable-Tip Drill |
