Product Specifications
| Manufacturer Part Number | 02462817 |
| Fixing Hole Diameter (Decimal Inch) | 0.114" |
| Fixing Hole Diameter (mm) | 2.90mm |
| Inscribed Circle Diameter (Decimal Inch) | 0.276" |
| Inscribed Circle Diameter (mm) | 7.00mm |
| Theoretical Cutting Edge Length (Decimal Inch) | 0.276" |
| Theoretical Cutting Edge Length (mm) | 7.00mm |

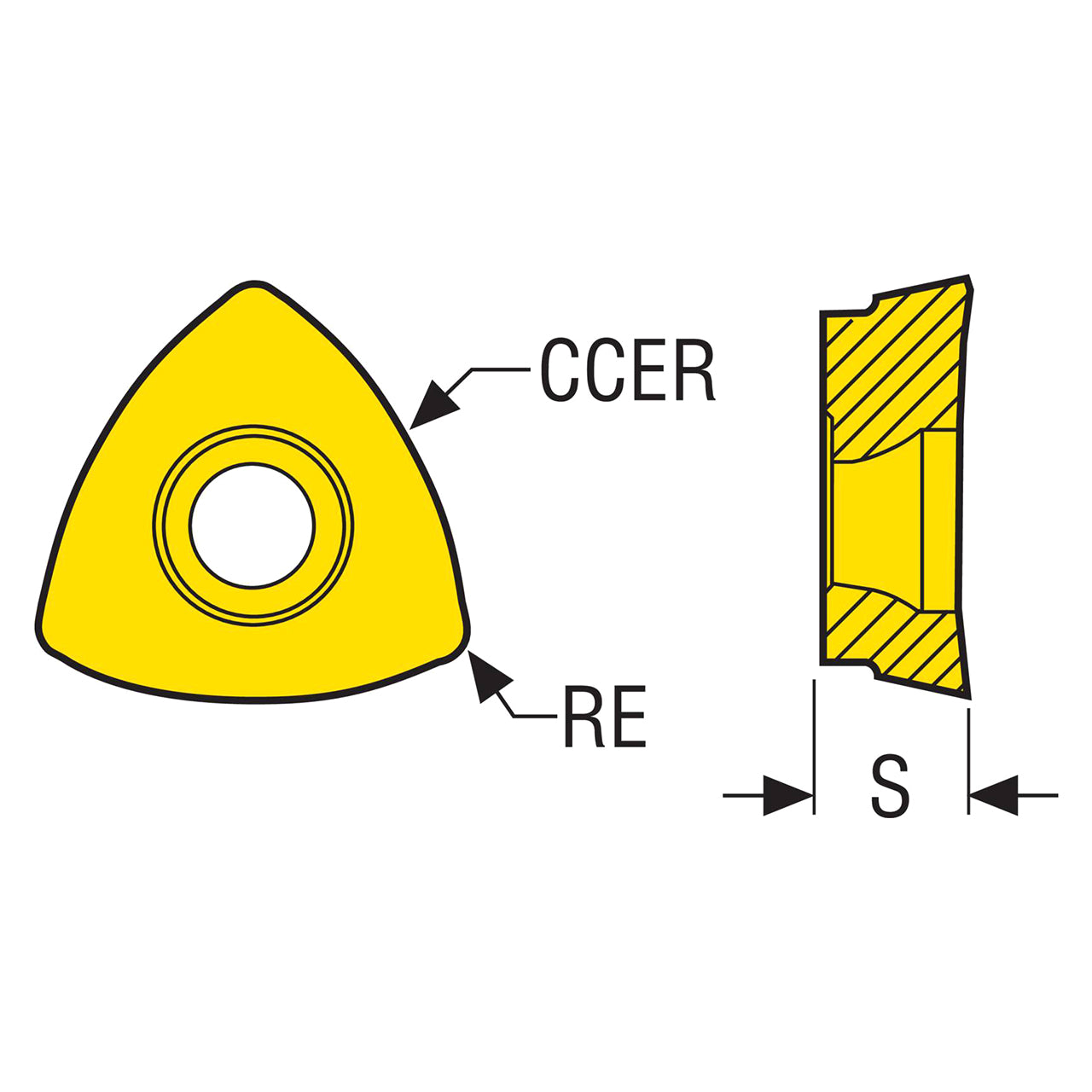

| Curved Cutting Edge Radius (Decimal Inch) | 0.394" |
| Curved Cutting Edge Radius (mm) | 10.00mm |
| Corner Radius (Decimal Inch) | 0.032" |
| Corner Radius (mm) | 0.80mm |
| Insert Thickness (Decimal Inch) | 0.111" |
| Insert Thickness (mm) | 2.81mm |
| Cutting Edge Count | 3 |
| Clearance Angle Major (Degree) | 12 Degree |
| Cutting Edge Condition Code | T |
| Cutting Geometry Type | MD |
| Cutting Geometry Type Technical | MD08 |
| Pocket Seat Code of The Cutter | 218.19-100 |
| Insert Size And Shape | 218.19-100 - CBN |
| Material | PCBN |

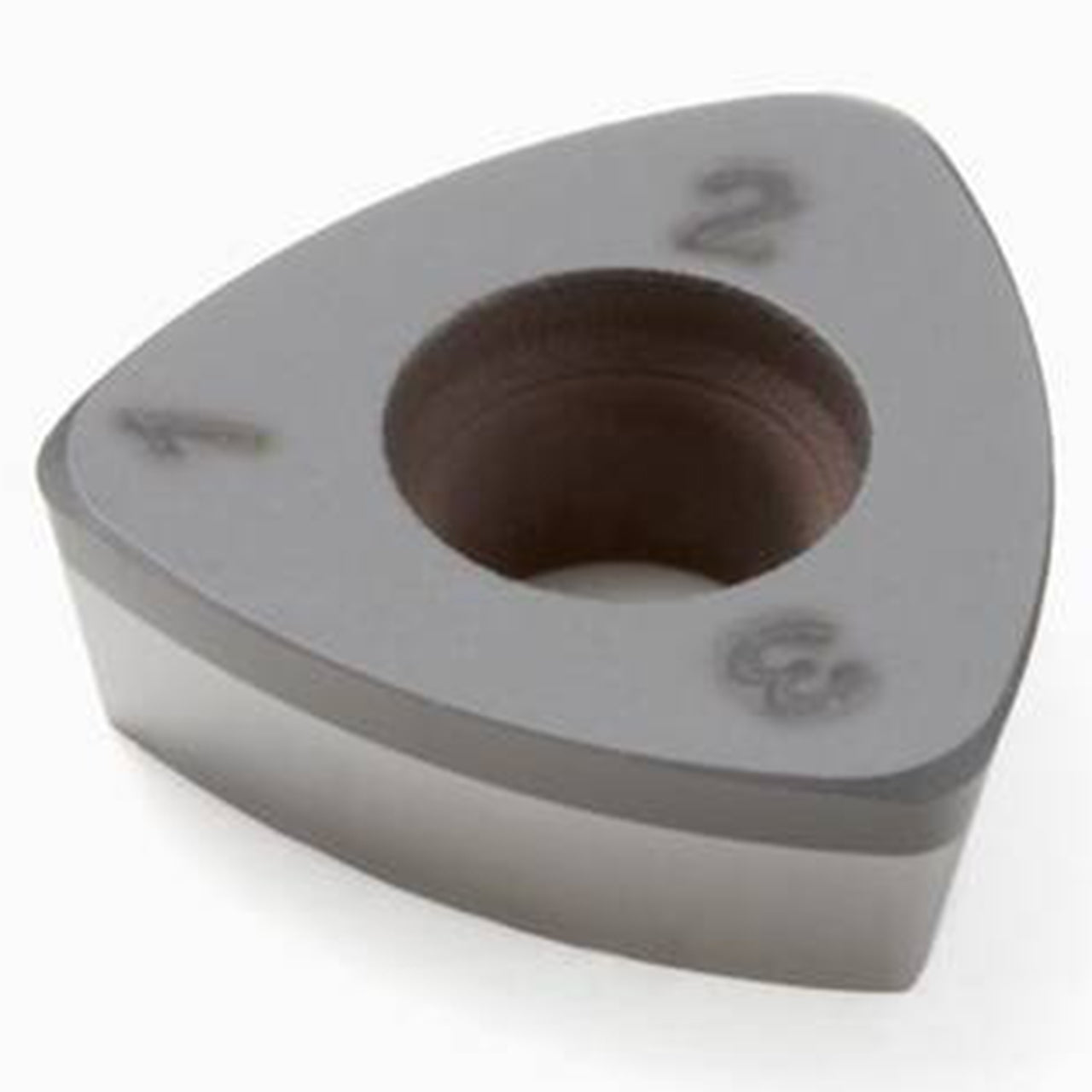

| Product Type | Milling Insert |
