Product Specifications
| Manufacturer Part Number | 02462581 |
| Minimum Cutting Diameter (Decimal Inch) | 0.020" |
| Minimum Cutting Diameter (mm) | 0.50mm |
| Connection Diameter Machine Side (Decimal Inch) | 0.158" |
| Connection Diameter Machine Side (mm) | 4.00mm |
| Maximum Cutting Diameter (Decimal Inch) | 0.043" |
| Maximum Cutting Diameter (mm) | 1.10mm |
| Shank Diameter (Decimal Inch) | 0.158" |
| Shank Diameter (mm) | 4.00mm |
| Body Length (Decimal Inch) | 0.079" |
| Body Length (mm) | 2.00mm |
| Functional Length (Decimal Inch) | 0.610" |
| Functional Length (mm) | 15.50mm |
| Overall Length (Decimal Inch) | 1.209" |
| Overall Length (mm) | 30.70mm |
| Maximum Depth of Cut (mm) | 0.02mm |
| Maximum Depth of Cut (Decimal Inch) | 0.001" |
| Body Width (Decimal Inch) | 0.0177 |
| Body Width (mm) | 0.45 |
| Functional Width (Decimal Inch) | 0.008" |
| Functional Width (mm) | 0.20mm |
| Tool Cutting Edge Angle (Degree) | 98 Degree |

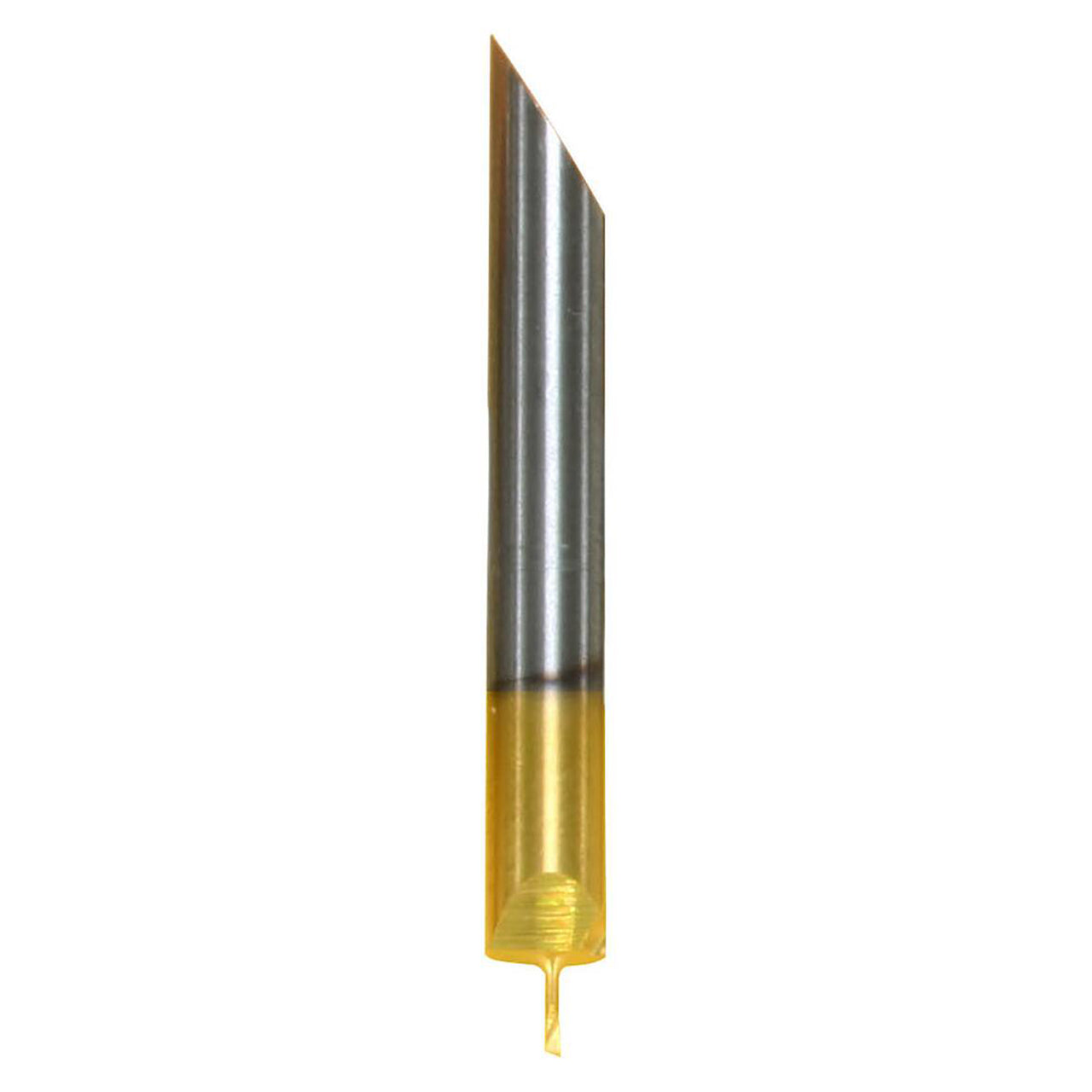

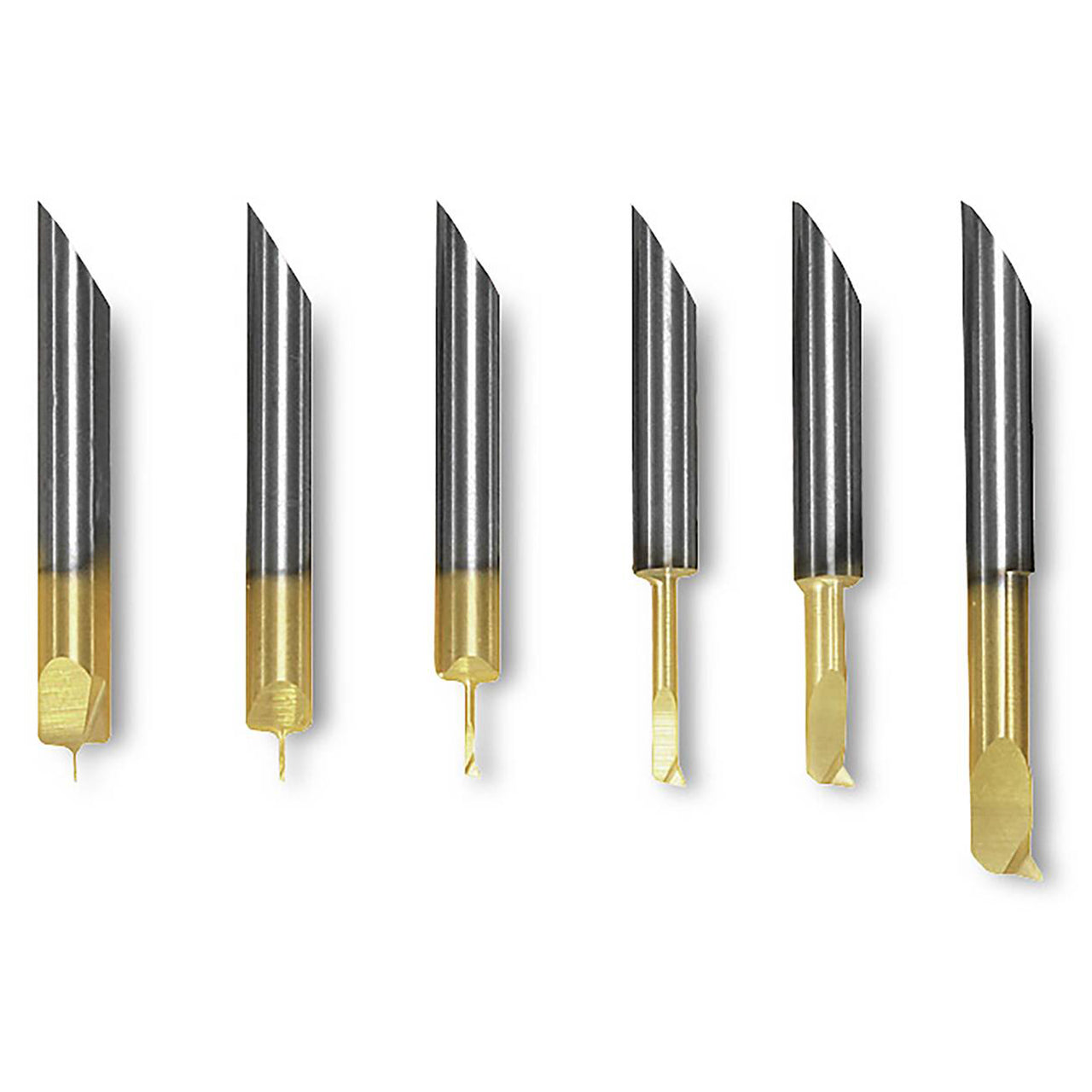

| Product Type | Boring Bar |
