Product Specifications
| Manufacturer Part Number | 02456326 |
| Theoretical Cutting Edge Length (Decimal Inch) | 2.155" |
| Theoretical Cutting Edge Length (mm) | 54.75mm |

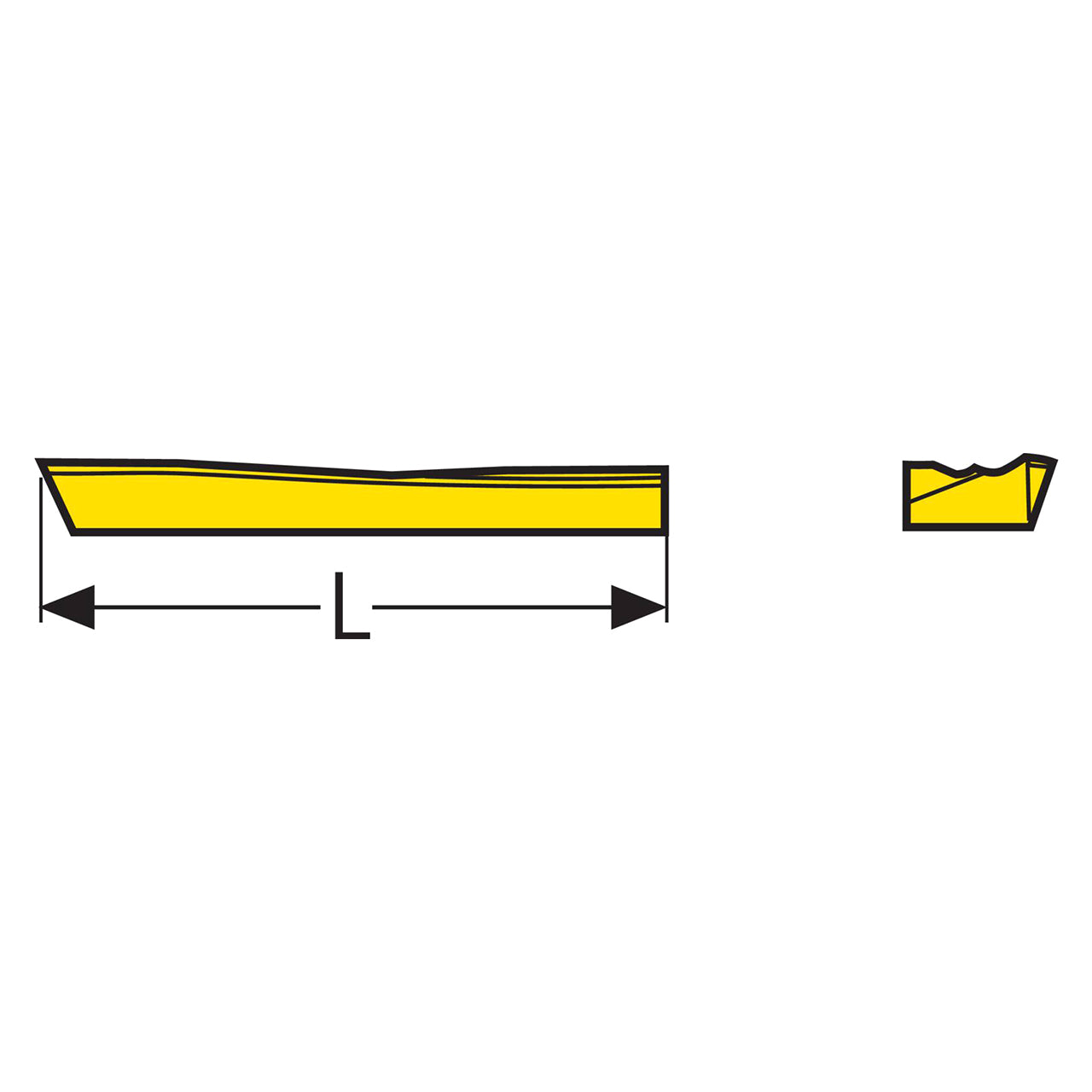

| Insert Length (Decimal Inch) | 2.155" |
| Insert Length (mm) | 54.75mm |
| Corner Radius (Decimal Inch) | 0.016" |
| Corner Radius (mm) | 0.40mm |
| Insert Thickness (Decimal Inch) | 0.197" |
| Insert Thickness (mm) | 5.00mm |
| Cutting Edge Count | 1 |
| Clearance Angle Major (Degree) | 15 Degree |
| Insert Rake Angle (Degree) | 22 Degree |
| Insert Hand | Right Hand |
| Cutting Geometry Type | E |
| Cutting Geometry Type Technical | E05 |
| Pocket Seat Code of The Cutter | R235.15-080 |
| Insert Size And Shape | R235.15-080 |
| Material | Carbide |

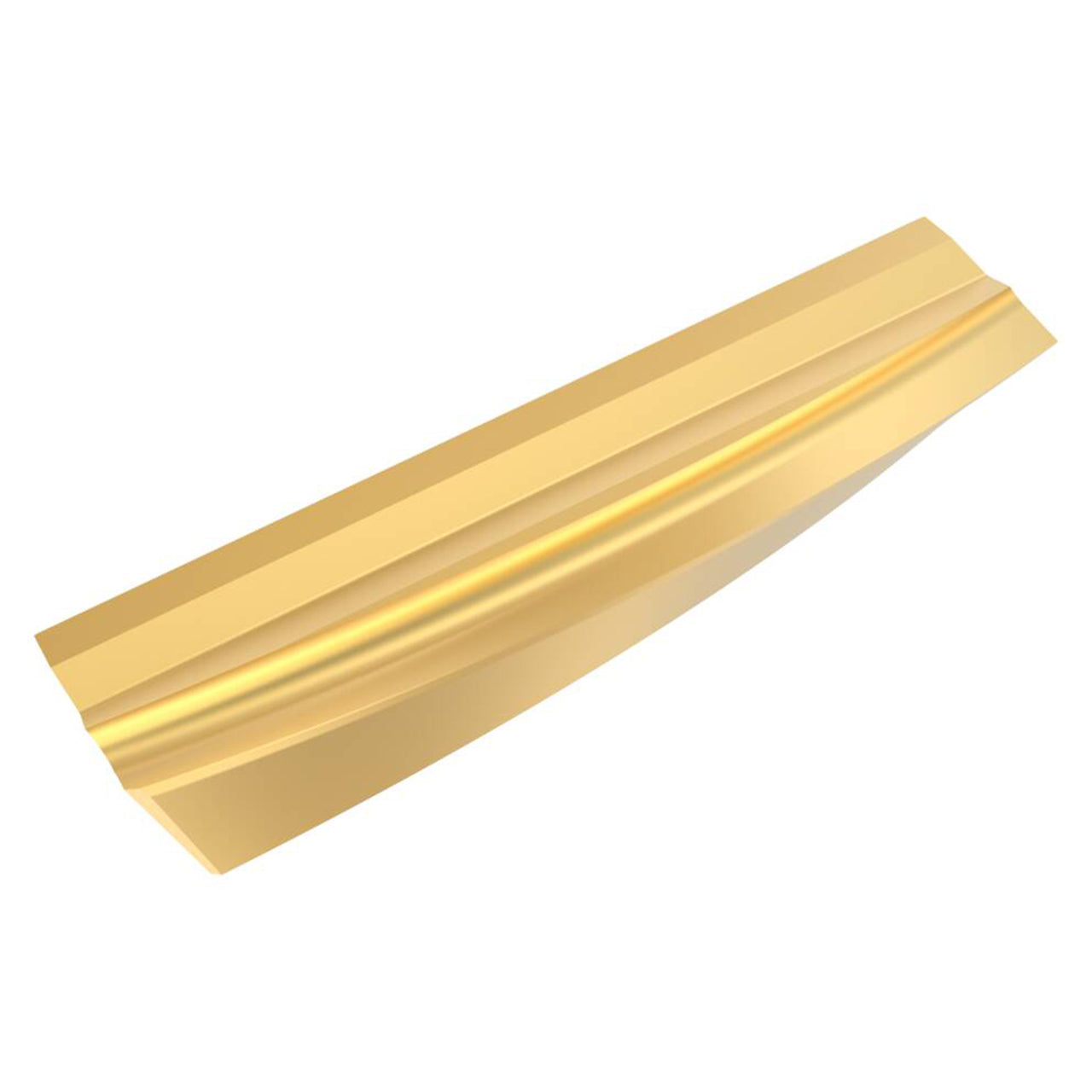

| Product Type | Milling Insert |
