Product Specifications
| Manufacturer Part Number | 02456296 |

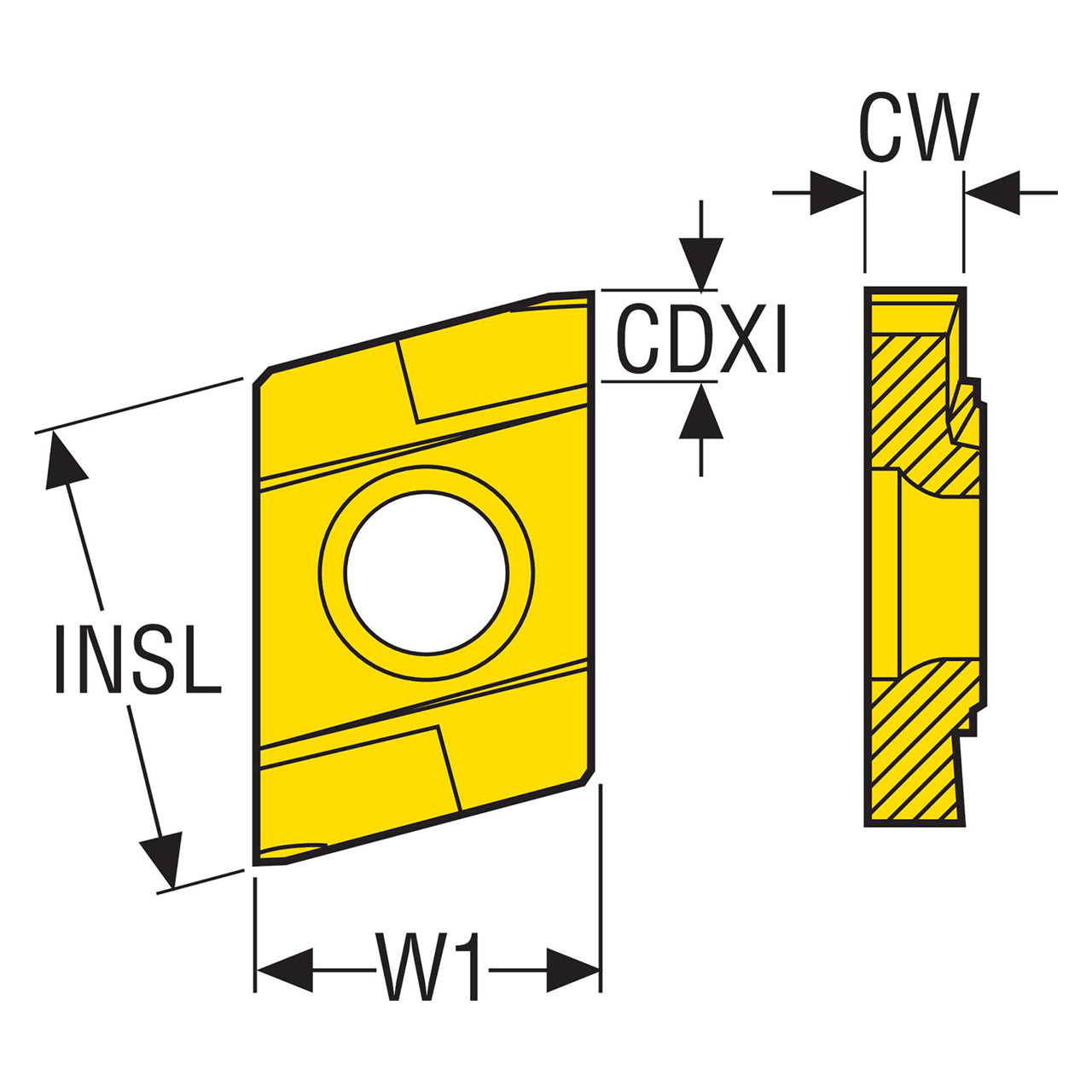

| Maximum Cutting Depth Insert (Decimal Inch) | 0.124" |
| Maximum Cutting Depth Insert (mm) | 3.15mm |
| Cutting Width (Decimal Inch) | 0.086" |
| Cutting Width (mm) | 2.18mm |
| Insert Length (Decimal Inch) | 0.532" |
| Insert Length (mm) | 13.50mm |
| Insert Width (Decimal Inch) | 0.354" |
| Insert Width (mm) | 9.00mm |
| Clearance Angle Major (Degree) | 15 Degree |
| Cutting Edge Count | 2 |
| Cutting Geometry Type Technical | M10 |
| Insert Size And Shape | R335.15-13 |
| Material | Carbide |
| Insert Hand | Right Hand |

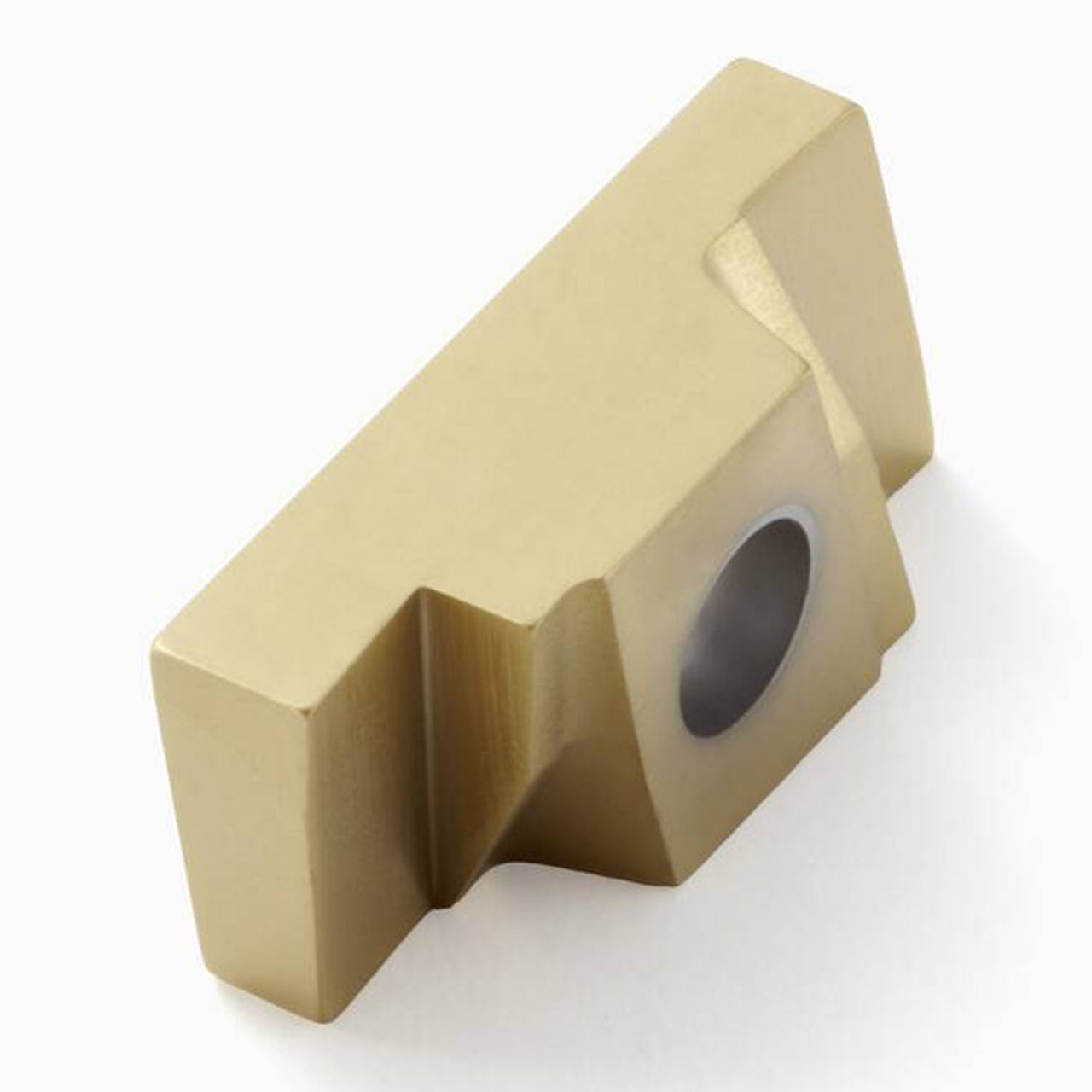

| Product Type | Disc Milling Insert |
