Product Specifications
| Manufacturer Part Number | 02450442 |
| Minimum Cutting Diameter Internal (Decimal Inch) | 0.315" |
| Minimum Cutting Diameter Internal (mm) | 8.00mm |
| Connection Diameter Machine Side (Decimal Inch) | 0.250" |
| Connection Diameter Machine Side (mm) | 6.35mm |
| Shank Diameter (Decimal Inch) | 0.250" |
| Shank Diameter (mm) | 6.35mm |
| Overall Length (Decimal Inch) | 3.406" |
| Overall Length (mm) | 86.50mm |
| Height of Tool Holder Shank (Decimal Inch) | 0.217" |
| Height of Tool Holder Shank (mm) | 5.50mm |
| Shank Width (Decimal Inch) | 0.233" |
| Shank Width (mm) | 5.92mm |
| Maximum Cutting Depth (Decimal Inch) | 393.661" |
| Maximum Cutting Depth (mm) | 9999.00mm |
| Tool Cutting Edge Angle (Degree) | 90 Degree |
| Cutting Direction | Neutral |
| Coolant Supply Property | 1 |
| Shank Type | Cylindrical |

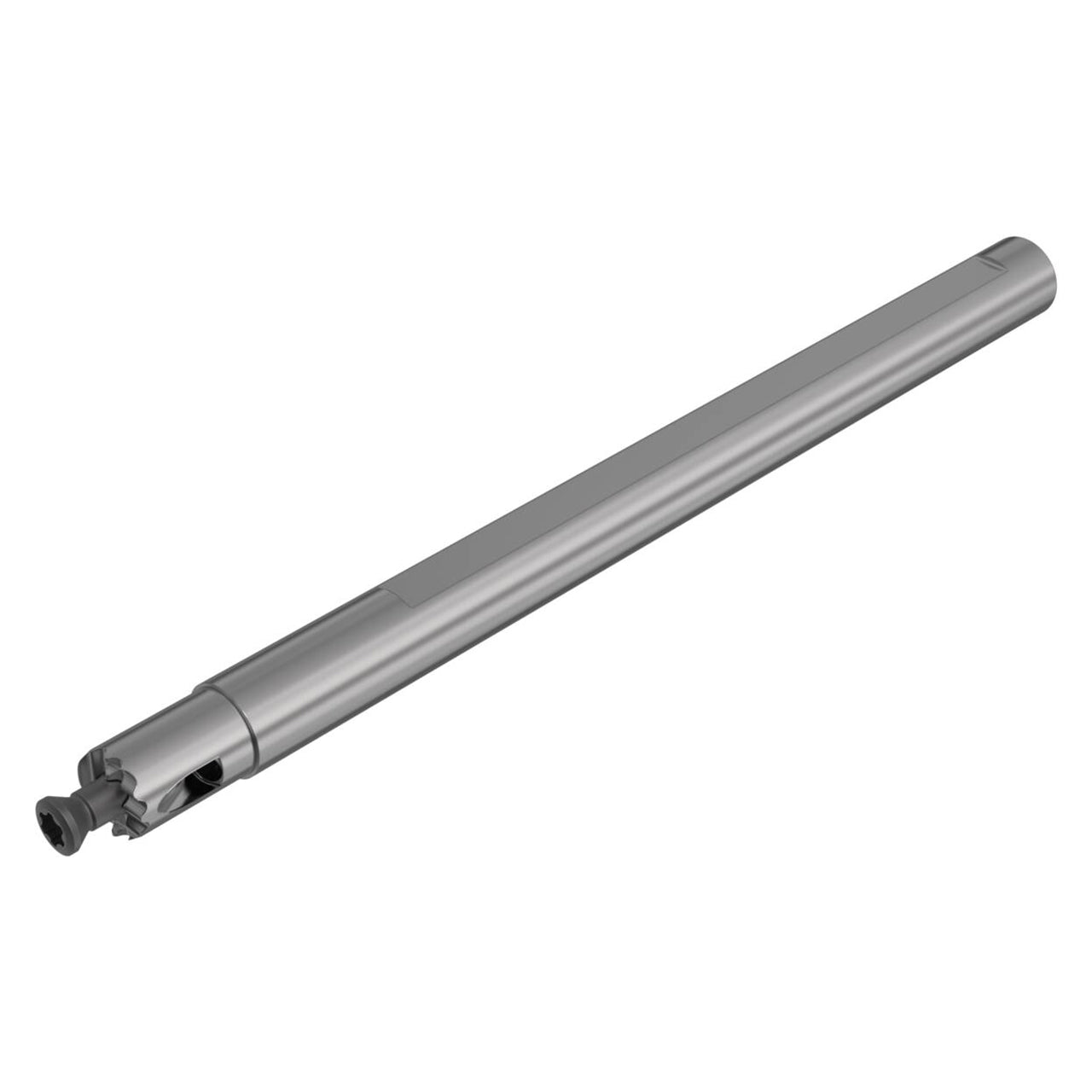

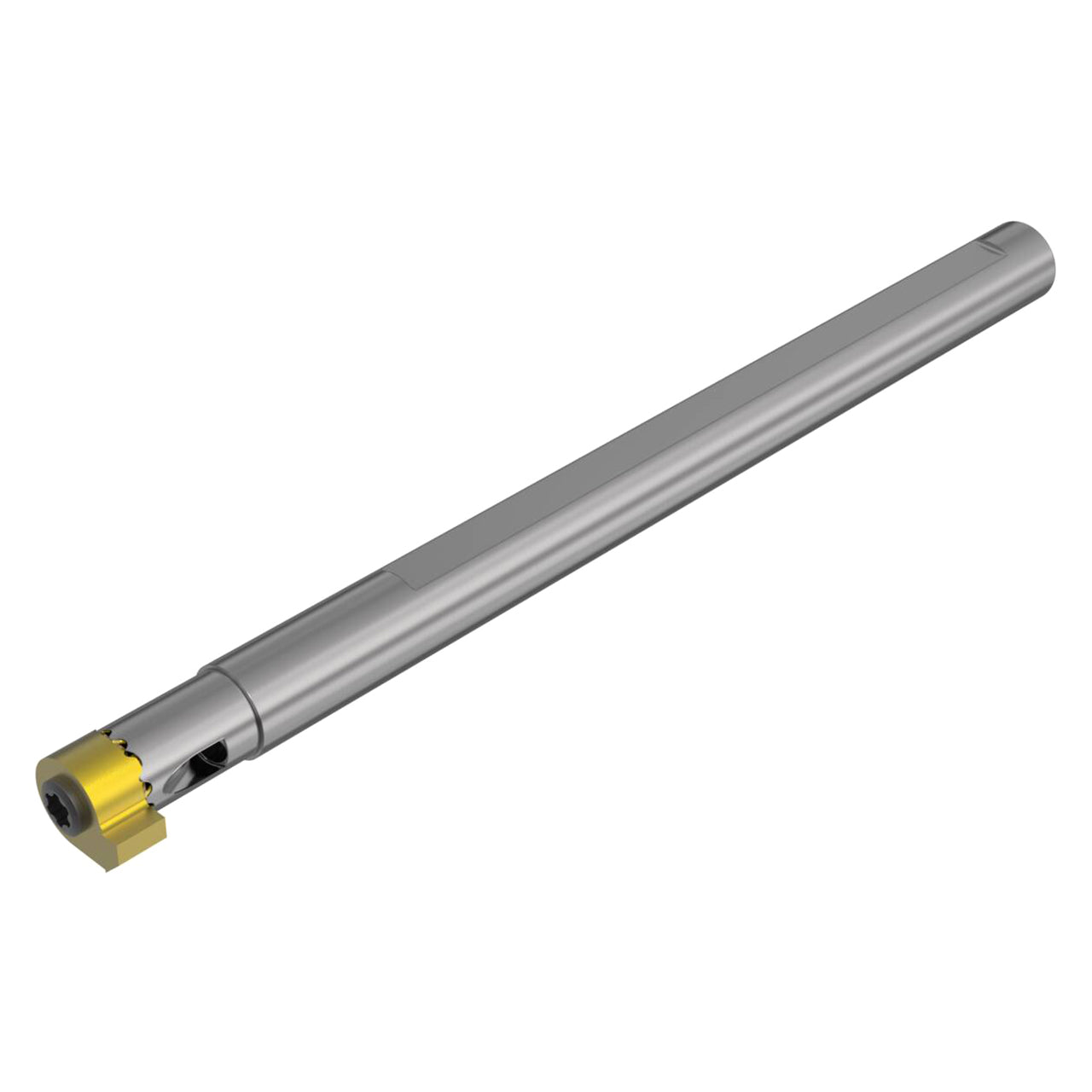

| Product Type | Indexable Boring Bar |
