Product Specifications
| Manufacturer Part Number | 02447669 |
| Body Diameter (Decimal Inch) | 1.181" |
| Body Diameter (mm) | 30.00mm |
| Body Diameter 1 (Decimal Inch) | 1.248" |
| Body Diameter 1 (mm) | 31.70mm |
| Body Diameter 2 (Decimal Inch) | 1.535" |
| Body Diameter 2 (mm) | 39.00mm |
| Body Length (Decimal Inch) | 5.709" |
| Body Length (mm) | 145.00mm |
| Body Length 1 (Decimal Inch) | 1.378" |
| Body Length 1 (mm) | 35.00mm |
| Functional Length (Decimal Inch) | 9.055" |
| Functional Length (mm) | 230.00mm |
| Protruding Length (Decimal Inch) | 9.055" |
| Protruding Length (mm) | 230.00mm |
| Overall Length (Decimal Inch) | 11.811" |
| Overall Length (mm) | 300.00mm |
| Body Half Taper Angle Degree) | 1.9 Degree |

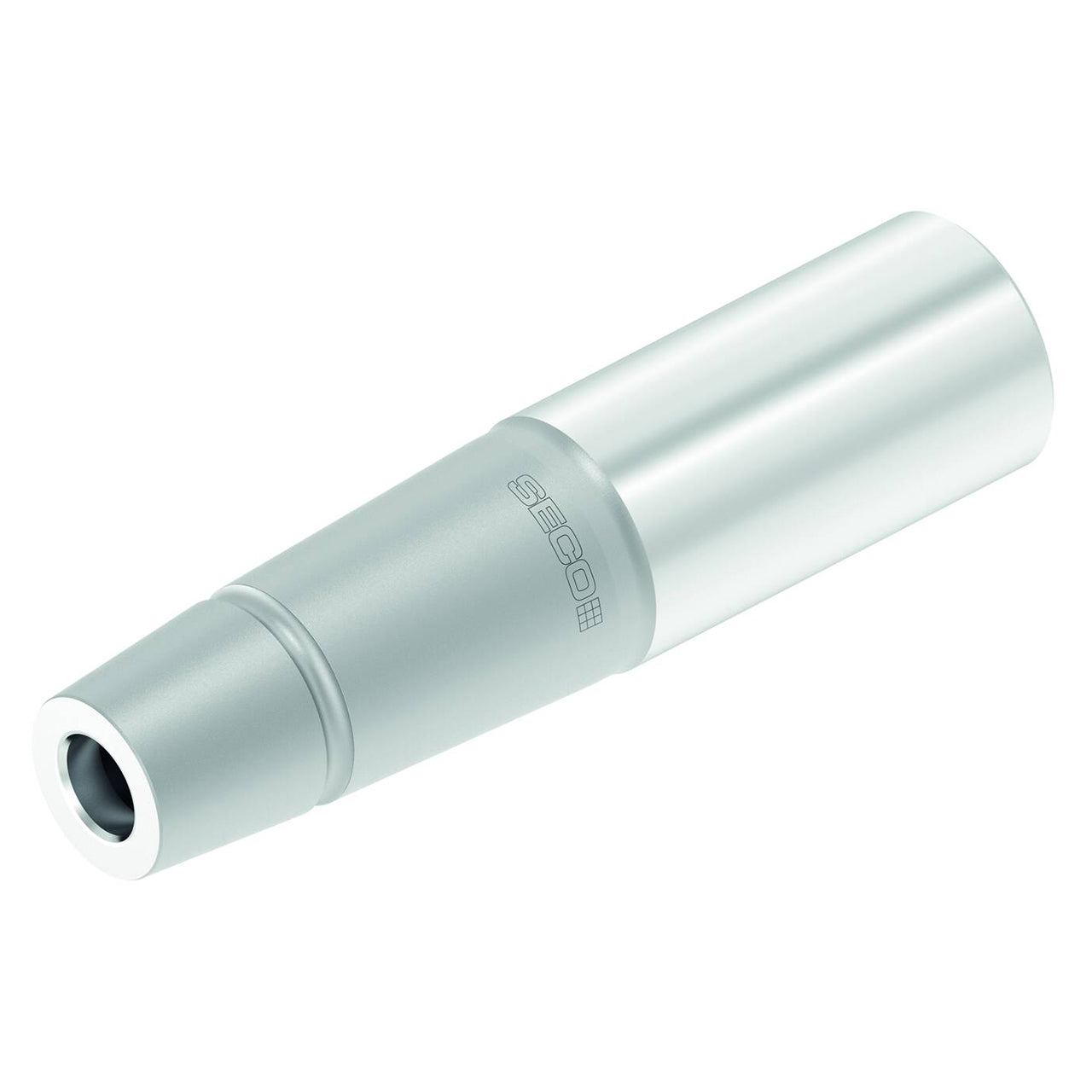

| Product Type | Shrink-Fit Tool Holder |
