Product Specifications

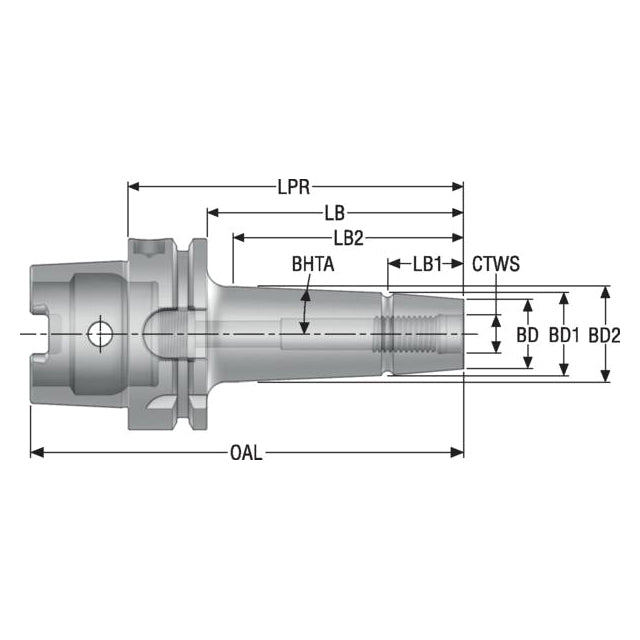

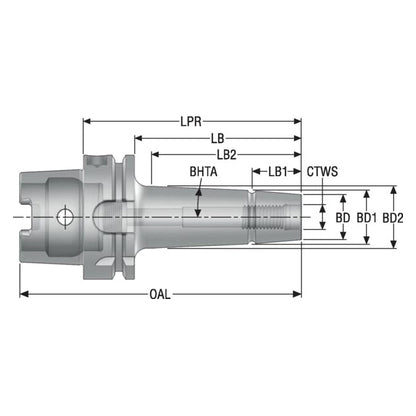

| Manufacturer Part Number | 02445333 |
| Body Diameter (Decimal Inch) | 0.906" |
| Body Diameter (mm) | 23.00mm |
| Body Diameter 1 (Decimal Inch) | 0.972" |
| Body Diameter 1 (mm) | 24.70mm |
| Body Diameter 2 (Decimal Inch) | 1.673" |
| Body Diameter 2 (mm) | 42.50mm |
| Body Length (Decimal Inch) | 6.142" |
| Body Length (mm) | 156.00mm |
| Body Length 1 (Decimal Inch) | 1.181" |
| Body Length 1 (mm) | 30.00mm |
| Body Length 2 (Decimal Inch) | 5.906" |
| Body Length 2 (mm) | 150.00mm |
| Body Length 3 (Decimal Inch) | 6.142" |
| Body Length 3 (mm) | 156.00mm |
| Functional Length (Decimal Inch) | 7.284" |
| Functional Length (mm) | 185.00mm |
| Protruding Length (Decimal Inch) | 7.284" |
| Protruding Length (mm) | 185.00mm |
| Overall Length (Decimal Inch) | 9.252" |
| Overall Length (mm) | 235.00mm |
| Body Half Taper Angle Degree) | 4.2 Degree |
| Data Chip Provision | 1 |

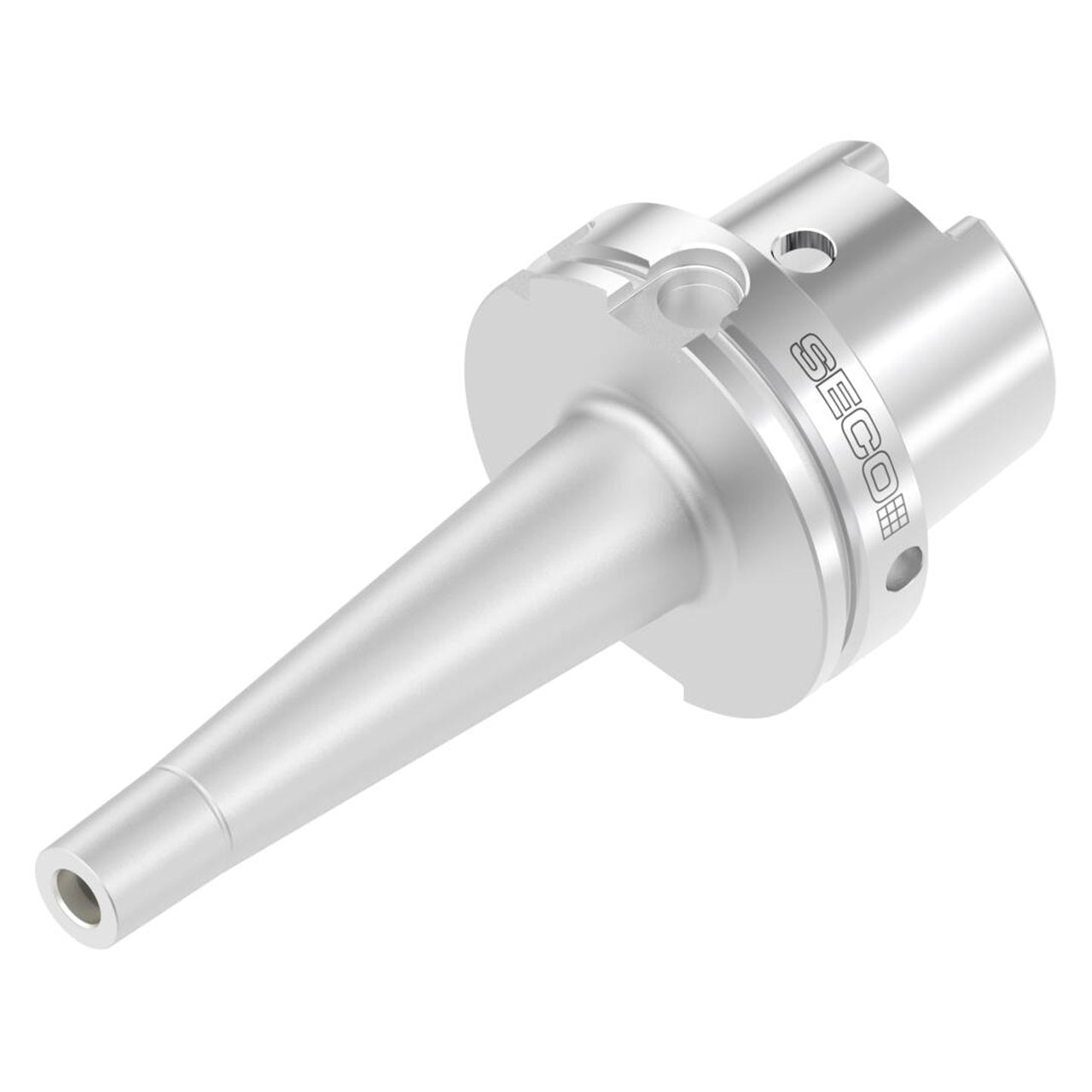

| Product Type | End Mill Holder |
