Product Specifications
| Manufacturer Part Number | 02444759 |
| Body Diameter (Decimal Inch) | 1.181" |
| Body Diameter (mm) | 30.00mm |
| Body Diameter 1 (Decimal Inch) | 1.248" |
| Body Diameter 1 (mm) | 31.70mm |
| Body Diameter 2 (Decimal Inch) | 2.343" |
| Body Diameter 2 (mm) | 59.50mm |
| Body Length (Decimal Inch) | 10.866" |
| Body Length (mm) | 276.00mm |
| Body Length 1 (Decimal Inch) | 1.378" |
| Body Length 1 (mm) | 35.00mm |
| Body Length 2 (Decimal Inch) | 9.843" |
| Body Length 2 (mm) | 250.00mm |
| Body Length 3 (Decimal Inch) | 10.866" |
| Body Length 3 (mm) | 276.00mm |
| Functional Length (Decimal Inch) | 11.614" |
| Functional Length (mm) | 295.00mm |
| Protruding Length (Decimal Inch) | 11.614" |
| Protruding Length (mm) | 295.00mm |
| Overall Length (Decimal Inch) | 15.618" |
| Overall Length (mm) | 396.70mm |
| Body Half Taper Angle Degree) | 3.7 Degree |
| Data Chip Provision | 1 |

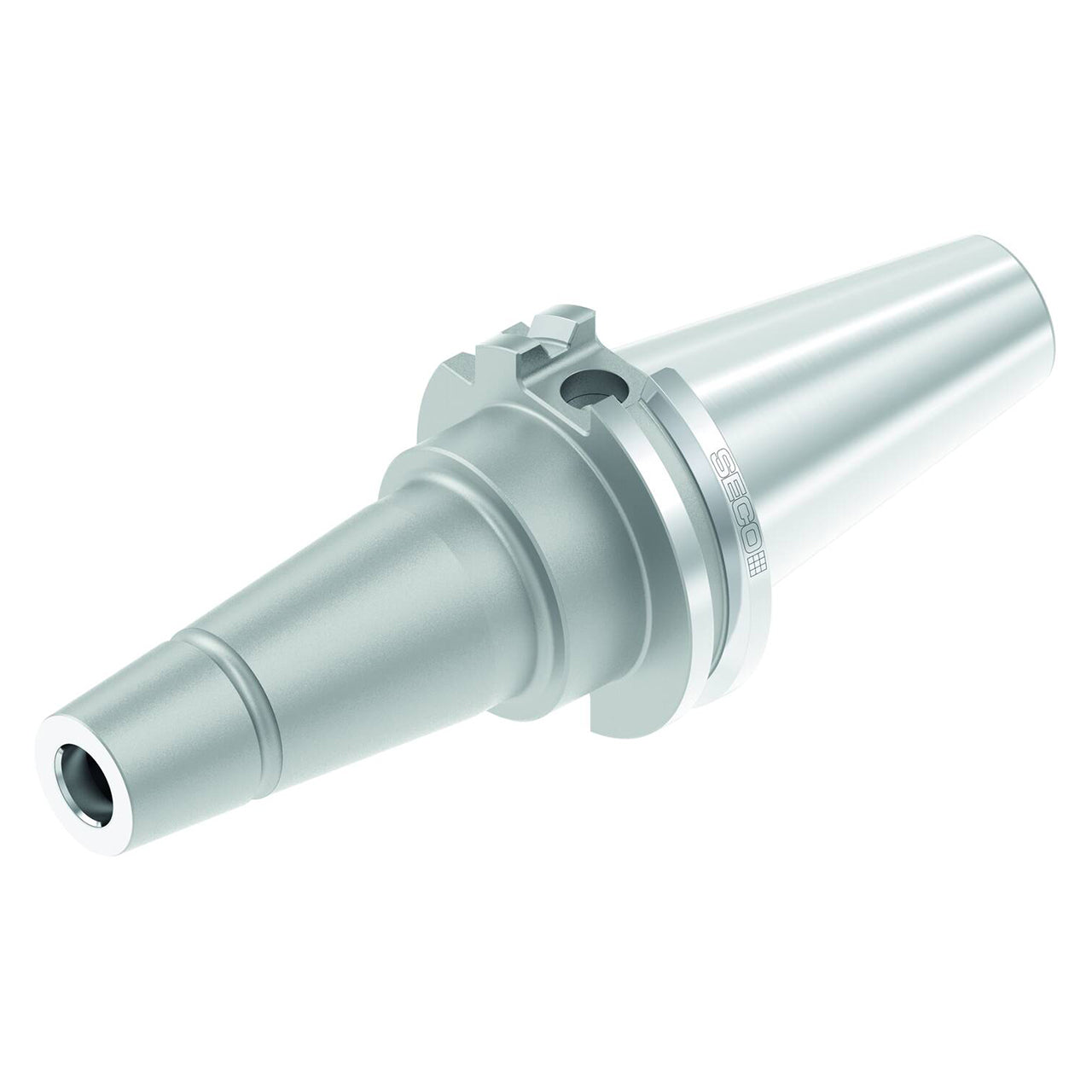

| Product Type | End Mill Adapter |
