Product Specifications
| Manufacturer Part Number | 02444656 |
| Body Diameter (Decimal Inch) | 1.181" |
| Body Diameter (mm) | 30.00mm |
| Body Diameter 1 (Decimal Inch) | 1.248" |
| Body Diameter 1 (mm) | 31.70mm |
| Body Diameter 2 (Decimal Inch) | 1.713" |
| Body Diameter 2 (mm) | 43.50mm |
| Body Length (Decimal Inch) | 6.535" |
| Body Length (mm) | 166.00mm |
| Body Length 1 (Decimal Inch) | 1.378" |
| Body Length 1 (mm) | 35.00mm |
| Body Length 2 (Decimal Inch) | 5.906" |
| Body Length 2 (mm) | 150.00mm |
| Body Length 3 (Decimal Inch) | 6.535" |
| Body Length 3 (mm) | 166.00mm |
| Functional Length (Decimal Inch) | 7.284" |
| Functional Length (mm) | 185.00mm |
| Protruding Length (Decimal Inch) | 7.284" |
| Protruding Length (mm) | 185.00mm |
| Overall Length (Decimal Inch) | 9.976" |
| Overall Length (mm) | 253.40mm |
| Body Half Taper Angle Degree) | 2.9 Degree |
| Data Chip Provision | 1 |

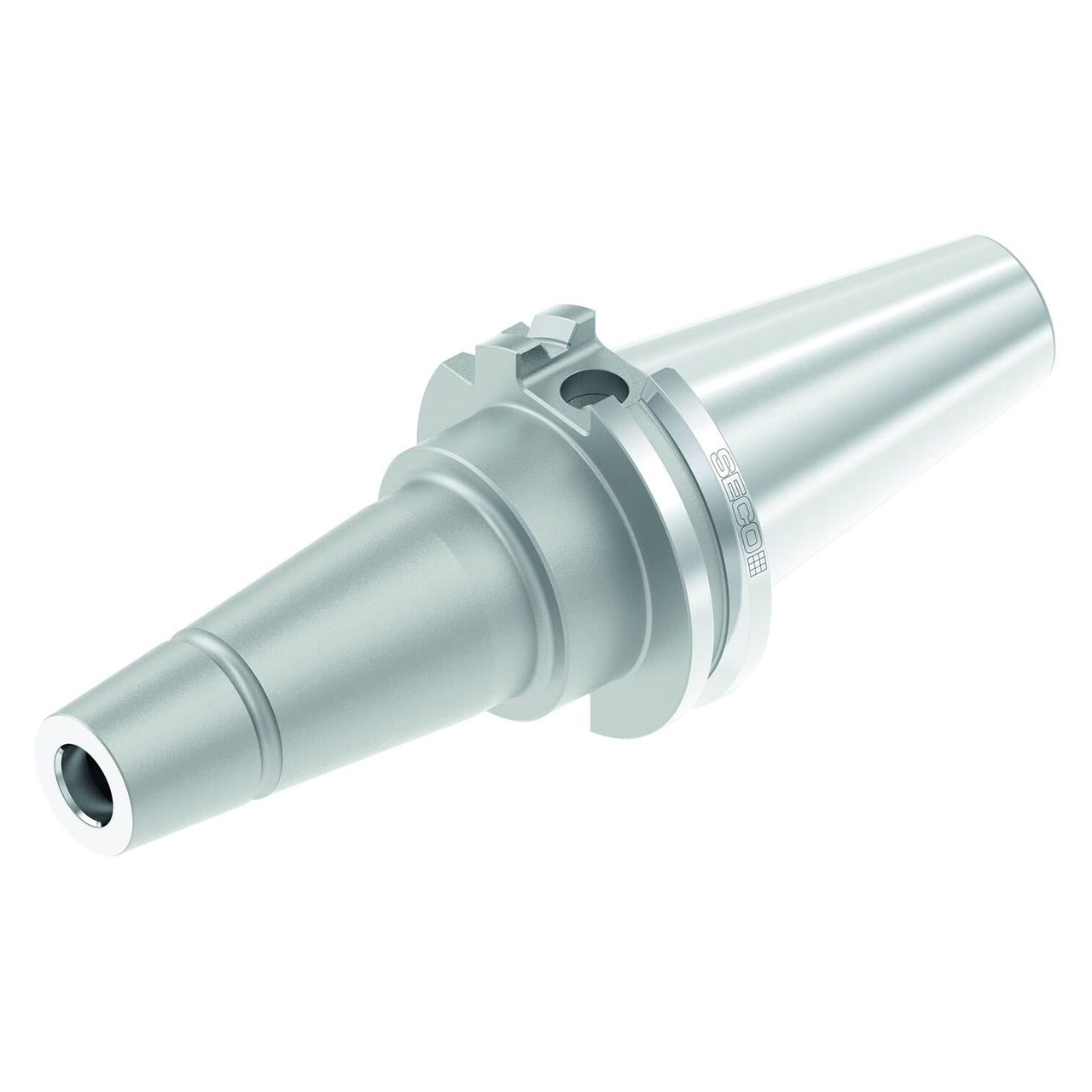

| Product Type | End Mill Holder |
