Product Specifications
| Manufacturer Part Number | 02444621 |
| Body Diameter (Decimal Inch) | 0.906" |
| Body Diameter (mm) | 23.00mm |
| Body Diameter 1 (Decimal Inch) | 0.972" |
| Body Diameter 1 (mm) | 24.70mm |
| Body Diameter 2 (Decimal Inch) | 0.972" |
| Body Diameter 2 (mm) | 24.70mm |
| Body Length (Decimal Inch) | 0.827" |
| Body Length (mm) | 21.00mm |
| Body Length 1 (Decimal Inch) | 0.197" |
| Body Length 1 (mm) | 5.00mm |
| Body Length 2 (Decimal Inch) | 0.197" |
| Body Length 2 (mm) | 5.00mm |
| Body Length 3 (Decimal Inch) | 0.827" |
| Body Length 3 (mm) | 21.00mm |
| Functional Length (Decimal Inch) | 1.575" |
| Functional Length (mm) | 40.00mm |
| Protruding Length (Decimal Inch) | 1.575" |
| Protruding Length (mm) | 40.00mm |
| Overall Length (Decimal Inch) | 4.268" |
| Overall Length (mm) | 108.40mm |
| Body Half Taper Angle Degree) | 9.6 Degree |
| Data Chip Provision | 1 |

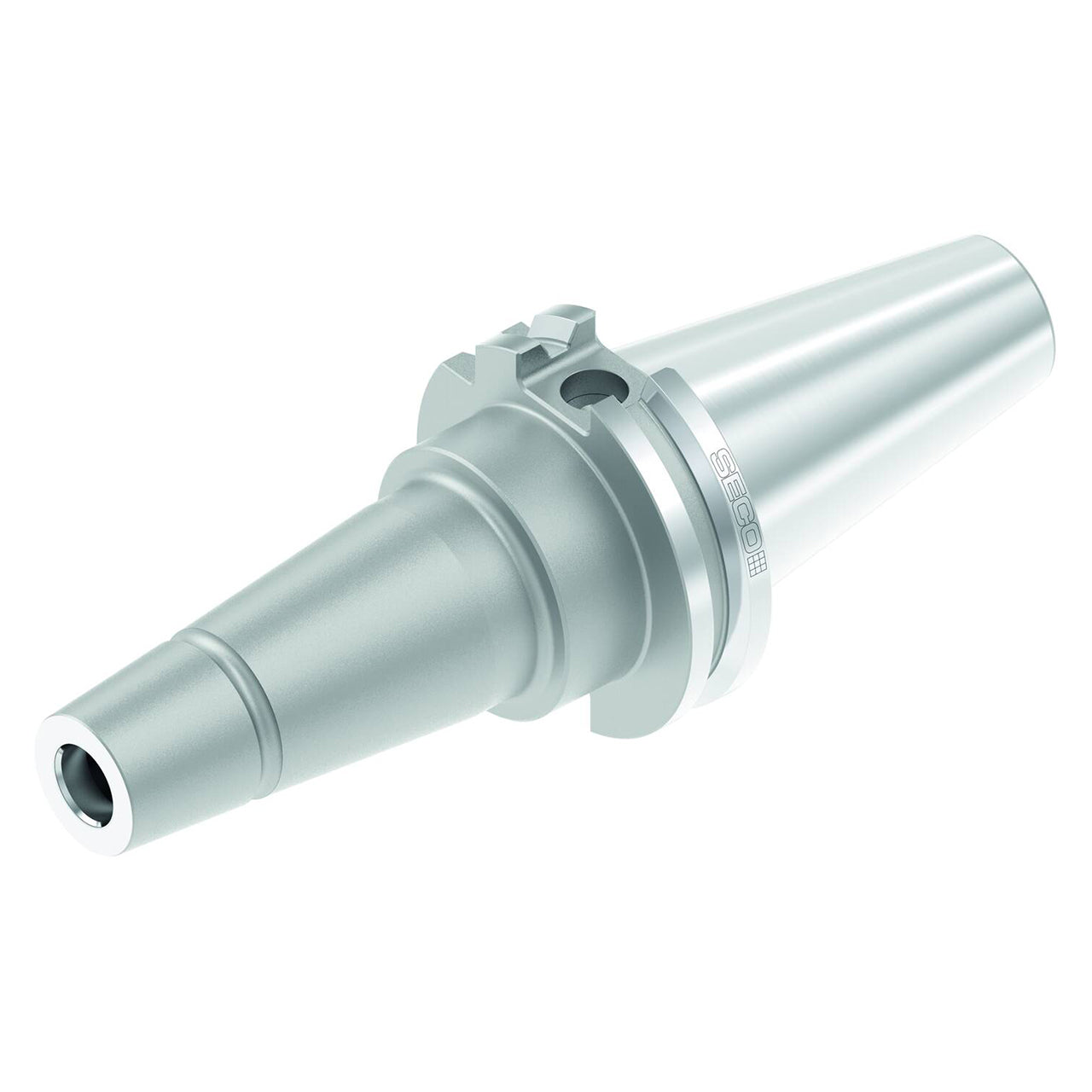

| Product Type | End Mill Holder |
