Product Specifications
| Manufacturer Part Number | 02444160 |
| Body Diameter (Decimal Inch) | 0.728" |
| Body Diameter (mm) | 18.50mm |
| Body Diameter 1 (Decimal Inch) | 0.776" |
| Body Diameter 1 (mm) | 19.70mm |
| Body Diameter 2 (Decimal Inch) | 1.083" |
| Body Diameter 2 (mm) | 27.50mm |
| Body Length (Decimal Inch) | 4.252" |
| Body Length (mm) | 108.00mm |
| Body Length 1 (Decimal Inch) | 0.787" |
| Body Length 1 (mm) | 20.00mm |
| Body Length 2 (Decimal Inch) | 3.937" |
| Body Length 2 (mm) | 100.00mm |
| Body Length 3 (Decimal Inch) | 4.252" |
| Body Length 3 (mm) | 108.00mm |
| Functional Length (Decimal Inch) | 5.315" |
| Functional Length (mm) | 135.00mm |
| Protruding Length (Decimal Inch) | 5.315" |
| Protruding Length (mm) | 135.00mm |
| Overall Length (Decimal Inch) | 7.890" |
| Overall Length (mm) | 200.40mm |
| Body Half Taper Angle Degree) | 2.8 Degree |
| Data Chip Provision | 1 |

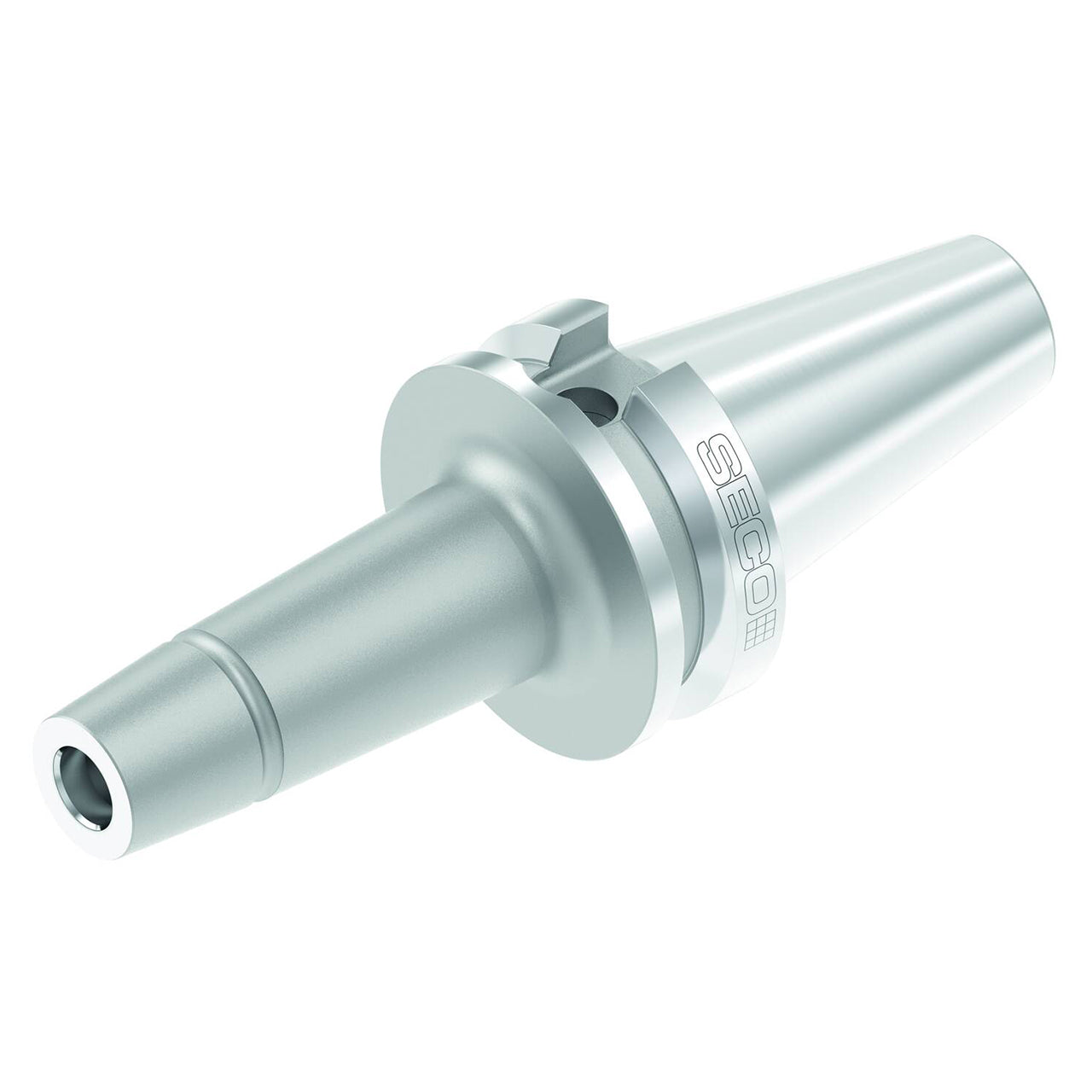

| Product Type | End Mill Holder |
