Product Specifications

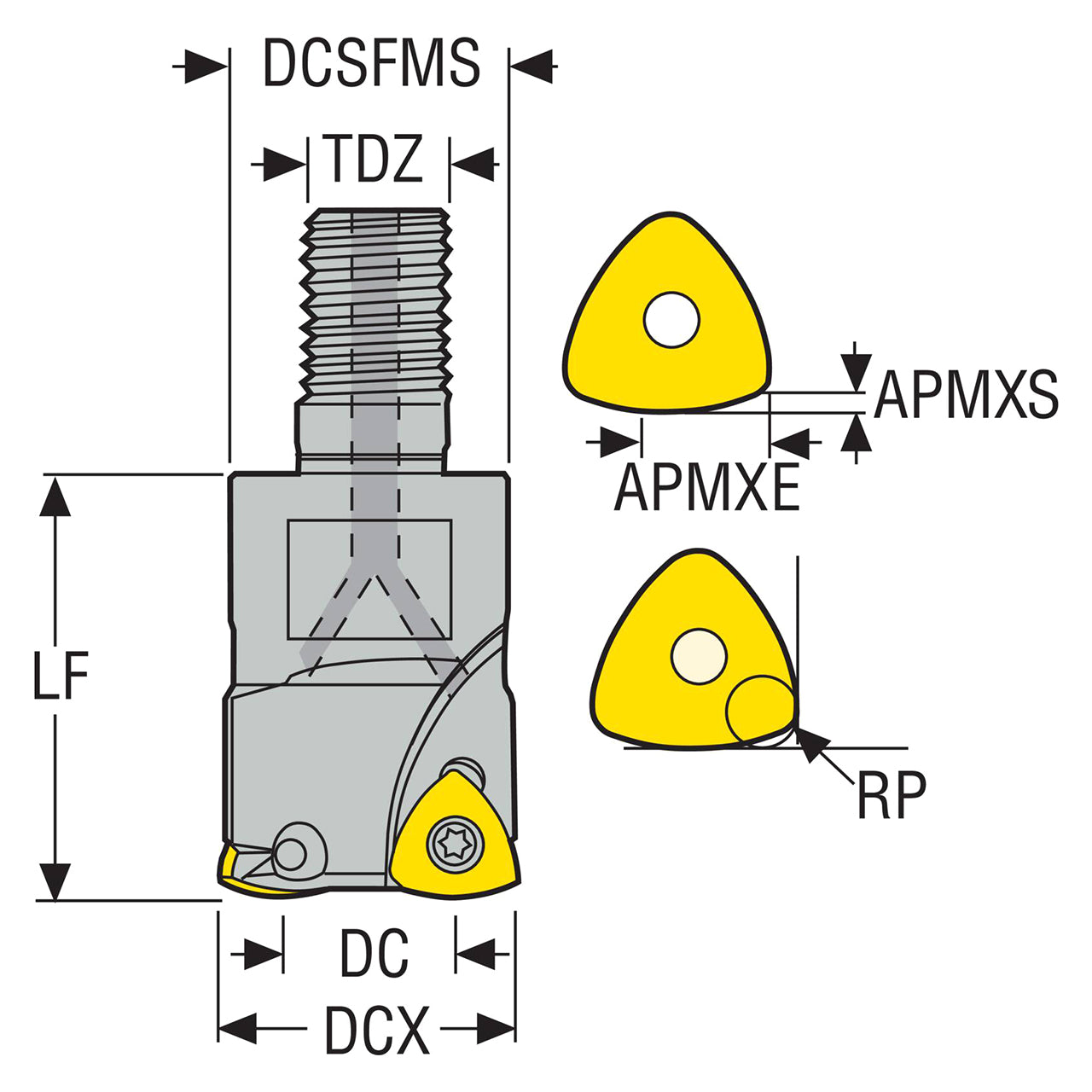

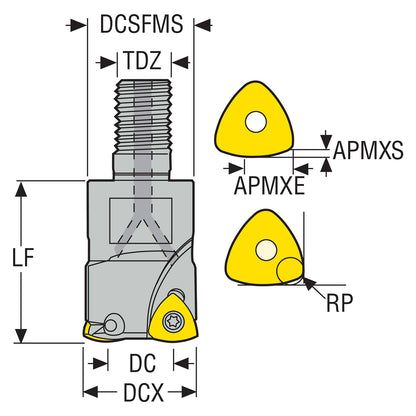

| Manufacturer Part Number | 02435615 |
| Cutting Diameter (Decimal Inch) | 1.002" |
| Cutting Diameter (mm) | 25.46mm |
| Contact Surface Diameter Machine Side (Decimal Inch) | 1.181" |
| Contact Surface Diameter Machine Side (mm) | 30.00mm |
| Maximum Cutting Diameter (Decimal Inch) | 1.500" |
| Maximum Cutting Diameter (mm) | 38.10mm |
| Thread Diameter Size | M16 |
| Maximum Helical Interpolation Hole Diameter (Decimal Inch) | 2.921" |
| Maximum Helical Interpolation Hole Diameter (mm) | 74.20mm |
| Minimum Helical Interpolation Hole Diameter (Decimal Inch) | 2.502" |
| Minimum Helical Interpolation Hole Diameter (mm) | 63.56mm |
| Functional Length (Decimal Inch) | 1.600" |
| Functional Length (mm) | 40.64mm |
| Overall Length (Decimal Inch) | 2.496" |
| Overall Length (mm) | 63.39mm |
| Maximum Depth of Cut (mm) | 1.50mm |
| Maximum Depth of Cut (Decimal Inch) | 0.059" |
| Connection Mounting Torque (Nm) | 80.0 Nm |
| Programming Radius (Decimal Inch) | 0.086" |
| Programming Radius (mm) | 2.18mm |
| Uncut Thickness (Decimal Inch) | 0.0315 |
| Uncut Thickness (mm) | 0.8 |
| Coolant Entry Style Code | 1 |
| Cutting Pitch Density | Close |
| Coolant Supply Property | 1 |
| Coolant Exit Style Code | 3 |
| Rake Radial Angle (Degree) | -5 Degree |
| Rake Radial Angle (Degree) | -5 Degree |
| Rake Orthogonal Angle (Degree) | -5 Degree |
| Axial Rake Angle (Degree) | 6 Degree |
| Maximum Ramping Angle (Degree) | 1.69 Degree |
| Maximum Rotational Speed (rpm) | 17600 rpm |
| Insert Shape Code | 218.19 |
| Shank Type | Combimaster |

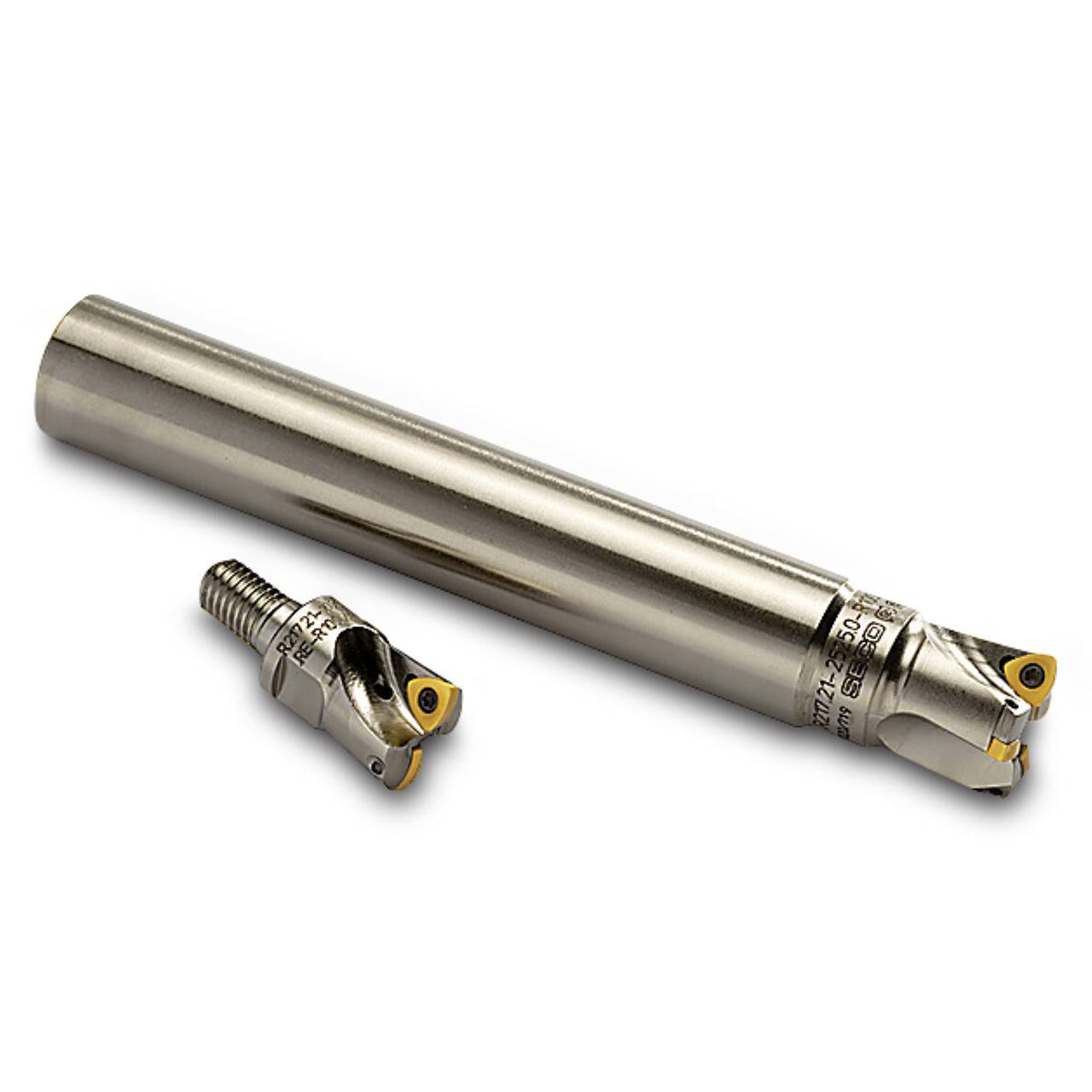

| Product Type | Indexable High-Feed End Mill |
