Product Specifications

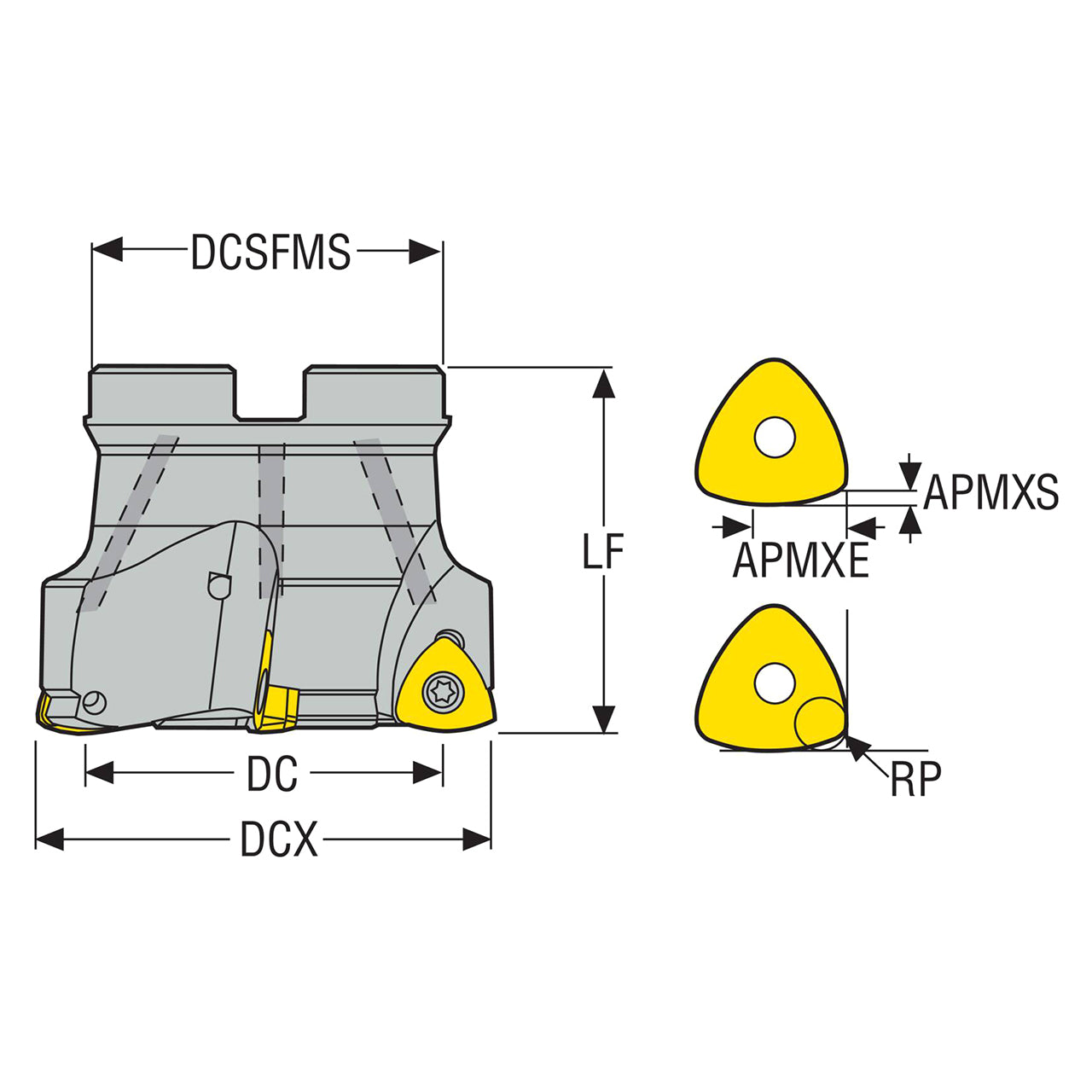

| Manufacturer Part Number | 02427189 |
| Cutting Diameter (mm) | 57.91mm |
| Cutting Diameter (Decimal Inch) | 2.280" |
| Contact Surface Diameter Machine Side (Decimal Inch) | 2.441" |
| Contact Surface Diameter Machine Side (mm) | 62.00mm |
| Maximum Cutting Diameter (Decimal Inch) | 3.000" |
| Maximum Cutting Diameter (mm) | 76.20mm |
| Functional Length (Decimal Inch) | 2.000" |
| Functional Length (mm) | 50.80mm |
| Cutting Item Material Type | Steel |
| Maximum Ramping Angle (Degree) | 0.39 Degree |
| Programming Radius (Decimal Inch) | 0.138" |
| Programming Radius (mm) | 3.50mm |
| Maximum Rotational Speed (rpm) | 10200 rpm |
| Shank Type | Arbor |
| Insert Seat Size Code | 160 |

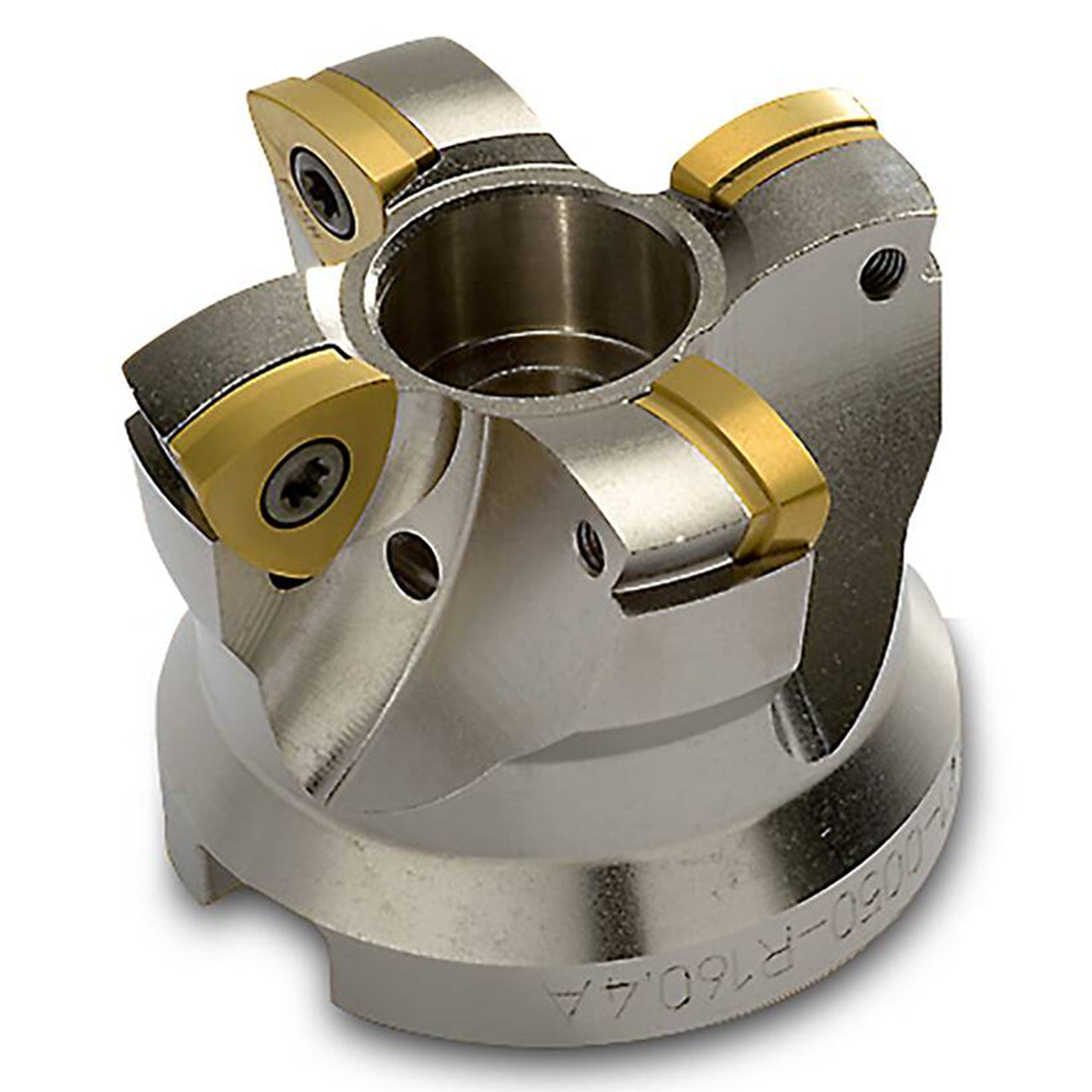

| Product Type | High Feed Trigon Shape Insert |
