Product Specifications

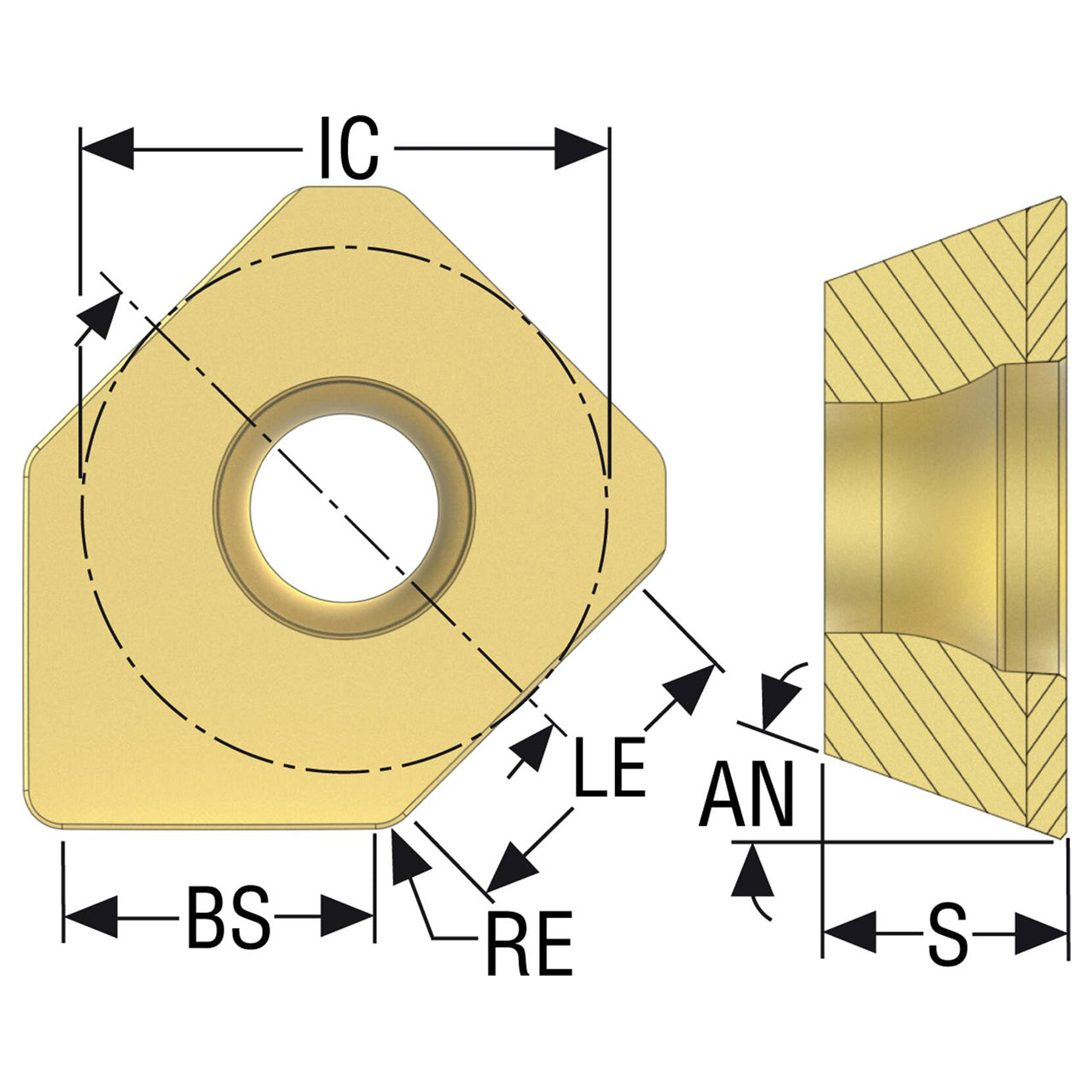

| Manufacturer Part Number | 02426814 |
| Fixing Hole Diameter (Decimal Inch) | 0.177" |
| Fixing Hole Diameter (mm) | 4.50mm |
| Inscribed Circle Diameter (Decimal Inch) | 0.500" |
| Inscribed Circle Diameter (mm) | 12.70mm |
| Wiper Edge Length (Decimal Inch) | 0.291" |
| Wiper Edge Length (mm) | 7.40mm |
| Cutting Edge Effective Length (Decimal Inch) | 0.343" |
| Cutting Edge Effective Length (mm) | 8.70mm |
| Corner Radius (Decimal Inch) | 0.044" |
| Corner Radius (mm) | 1.12mm |
| Insert Thickness (Decimal Inch) | 0.187" |
| Insert Thickness (mm) | 4.76mm |
| Clearance Angle Major (Degree) | 20 Degree |
| Cutting Edge Count | 1 |
| Cutting Geometry Type Technical | M14 |
| Pocket Seat Code of The Cutter | SE.X1204 |
| Insert Size And Shape | SEEX1204ZZ |
| Insert Rake Angle (Degree) | 5 Degree |
| Insert Hand | Neutral |
| Material | Carbide |

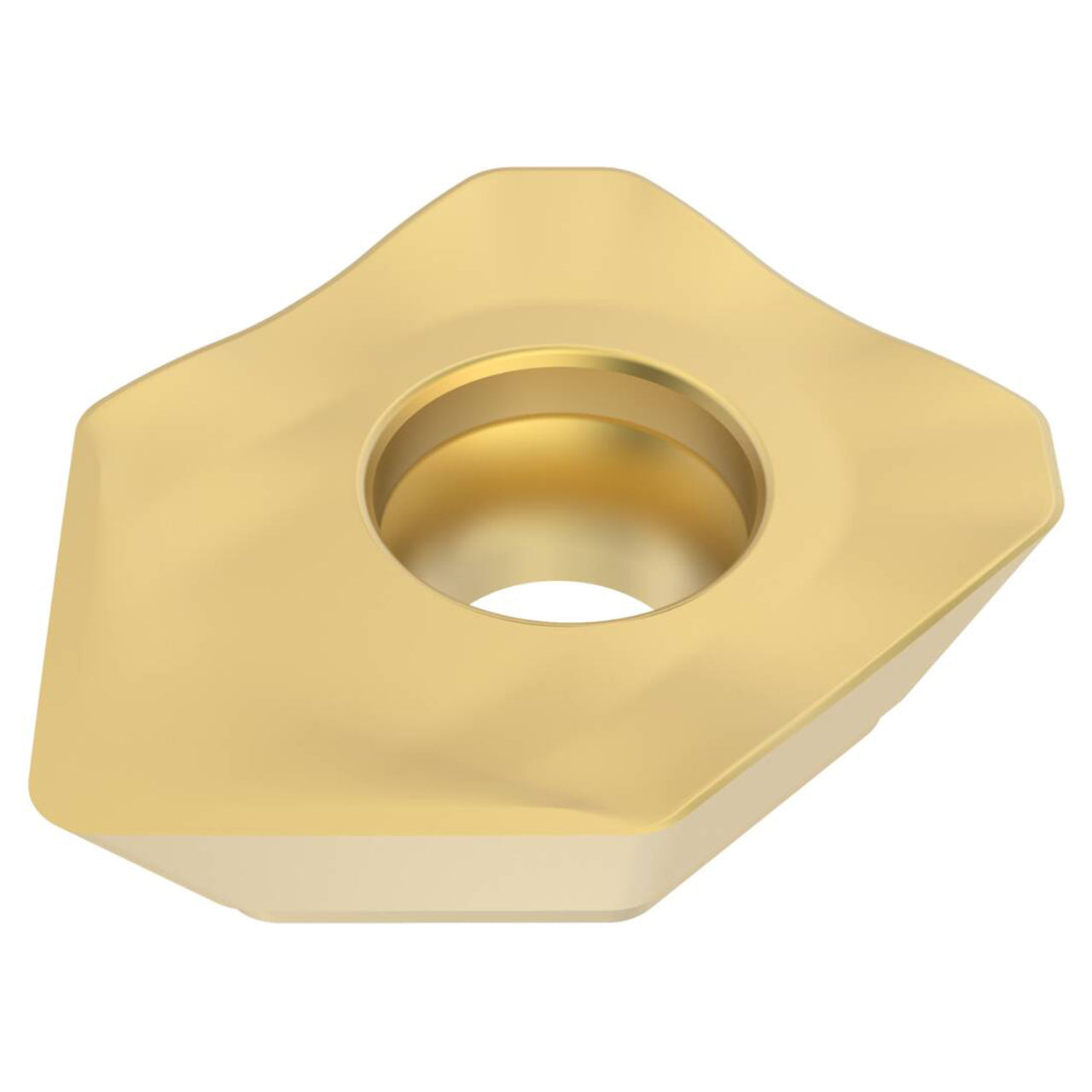

| Product Type | Quattromill Insert |
