Product Specifications

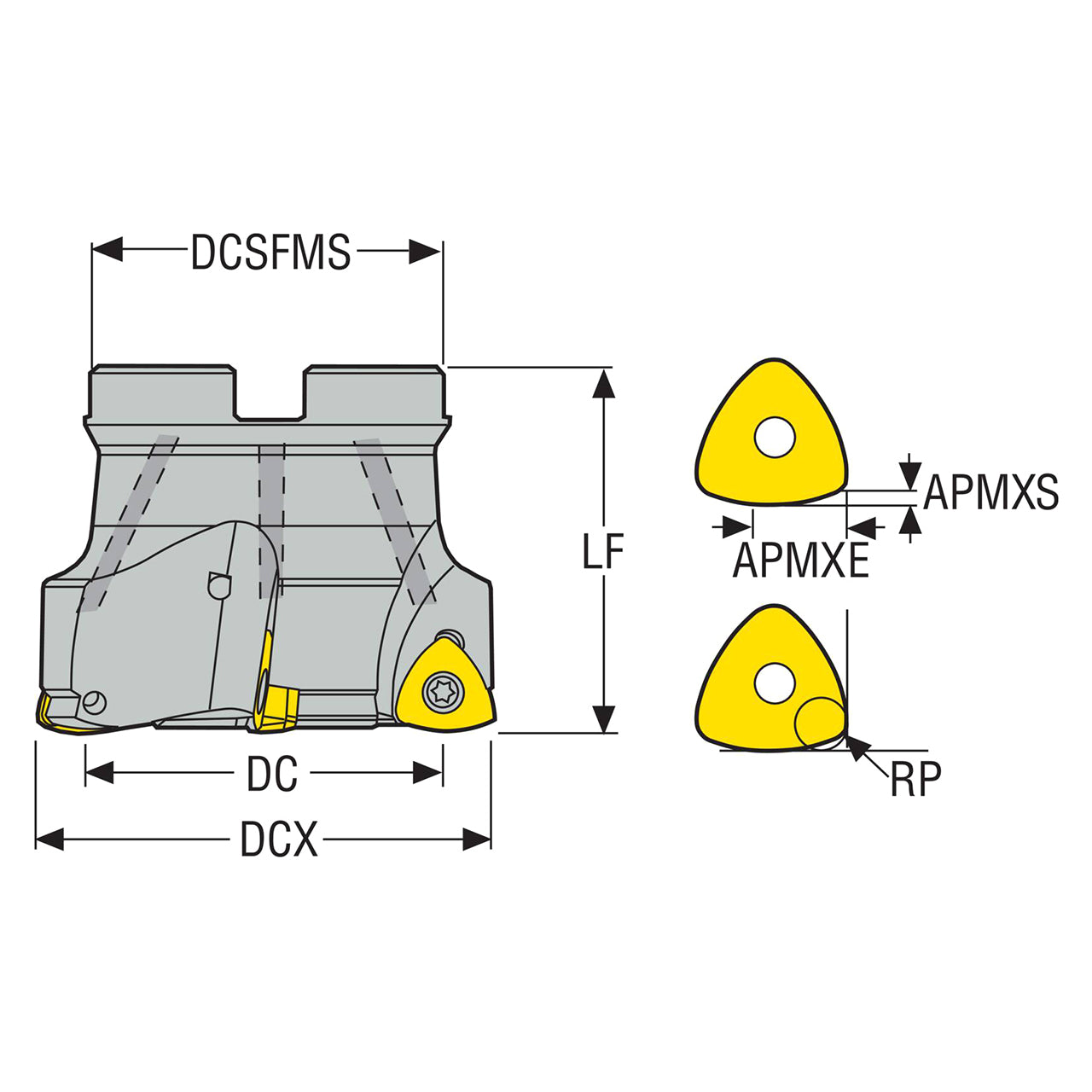

| Manufacturer Part Number | 02425827 |
| Cutting Diameter (mm) | 36.19mm |
| Contact Surface Diameter Machine Side (mm) | 47.00mm |
| Maximum Cutting Diameter (mm) | 52.00mm |
| Functional Length (mm) | 40.00mm |
| Cutting Item Material Type | Steel |
| Maximum Ramping Angle (Degree) | 1.38 Degree |
| Programming Radius (mm) | 2.85mm |
| Maximum Rotational Speed (rpm) | 12700 rpm |
| Shank Type | Arbor |
| Insert Seat Size Code | 160 |

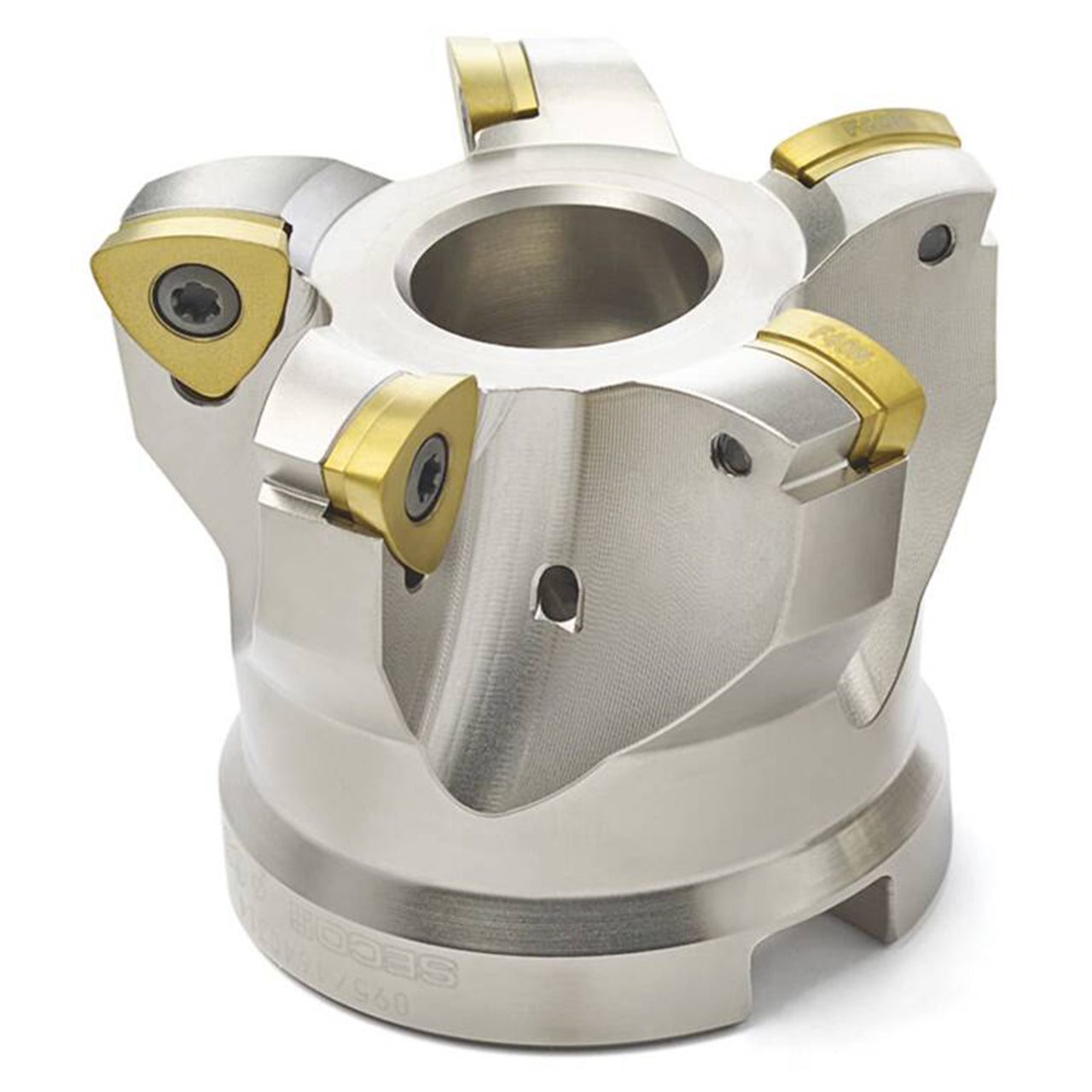

| Product Type | High Feed Trigon Shape Insert |
