Product Specifications
| Manufacturer Part Number | 02425021 |

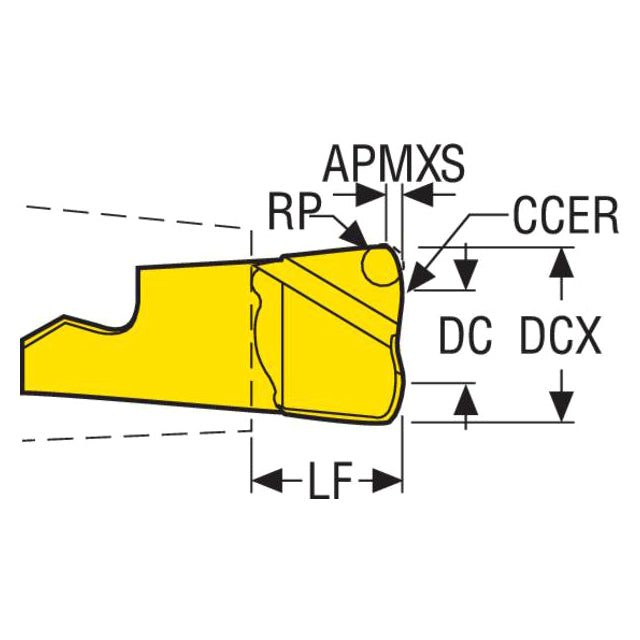

| Cutting Diameter (Decimal Inch) | 0.236" |
| Cutting Diameter (mm) | 6.00mm |
| Maximum Cutting Diameter (Decimal Inch) | 0.472" |
| Maximum Cutting Diameter (mm) | 12.00mm |
| Maximum Helical Interpolation Hole Diameter (Decimal Inch) | 0.874" |
| Maximum Helical Interpolation Hole Diameter (mm) | 22.20mm |
| Minimum Helical Interpolation Hole Diameter (Decimal Inch) | 0.575" |
| Minimum Helical Interpolation Hole Diameter (mm) | 14.60mm |
| Maximum Depth of Cut (Decimal Inch) | 0.020" |
| Maximum Depth of Cut (mm) | 0.51mm |
| Curved Cutting Edge Radius (Decimal Inch) | 0.256" |
| Curved Cutting Edge Radius (mm) | 6.50mm |
| Functional Length (Decimal Inch) | 0.404" |
| Functional Length (mm) | 10.25mm |
| Torque (Nm) | 12Nm |
| Cutting Edge Count | 1 |
| Material | Carbide |
| Tool Cutting Edge Angle In Feed Direction Side (Degree) | 90 Degree |
| Corner Radius (Decimal Inch) | 0.032" |
| Corner Radius (mm) | 0.80mm |
| Maximum Ramping Angle (Degree) | 5 Degree |
| Programming Radius (Decimal Inch) | 0.048" |
| Programming Radius (mm) | 1.21mm |
| Peripheral Effective Cutting Edge Count | 2 |
| Peripheral Edges In The Tool | 2 |
| Product Type | Slotting Milling Tip Insert |
