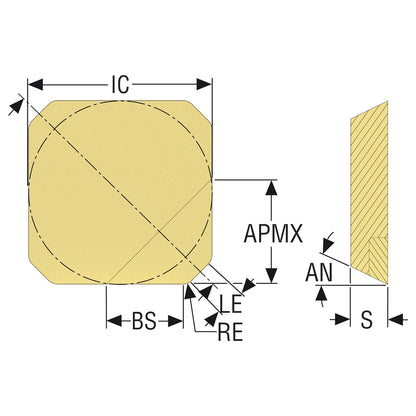

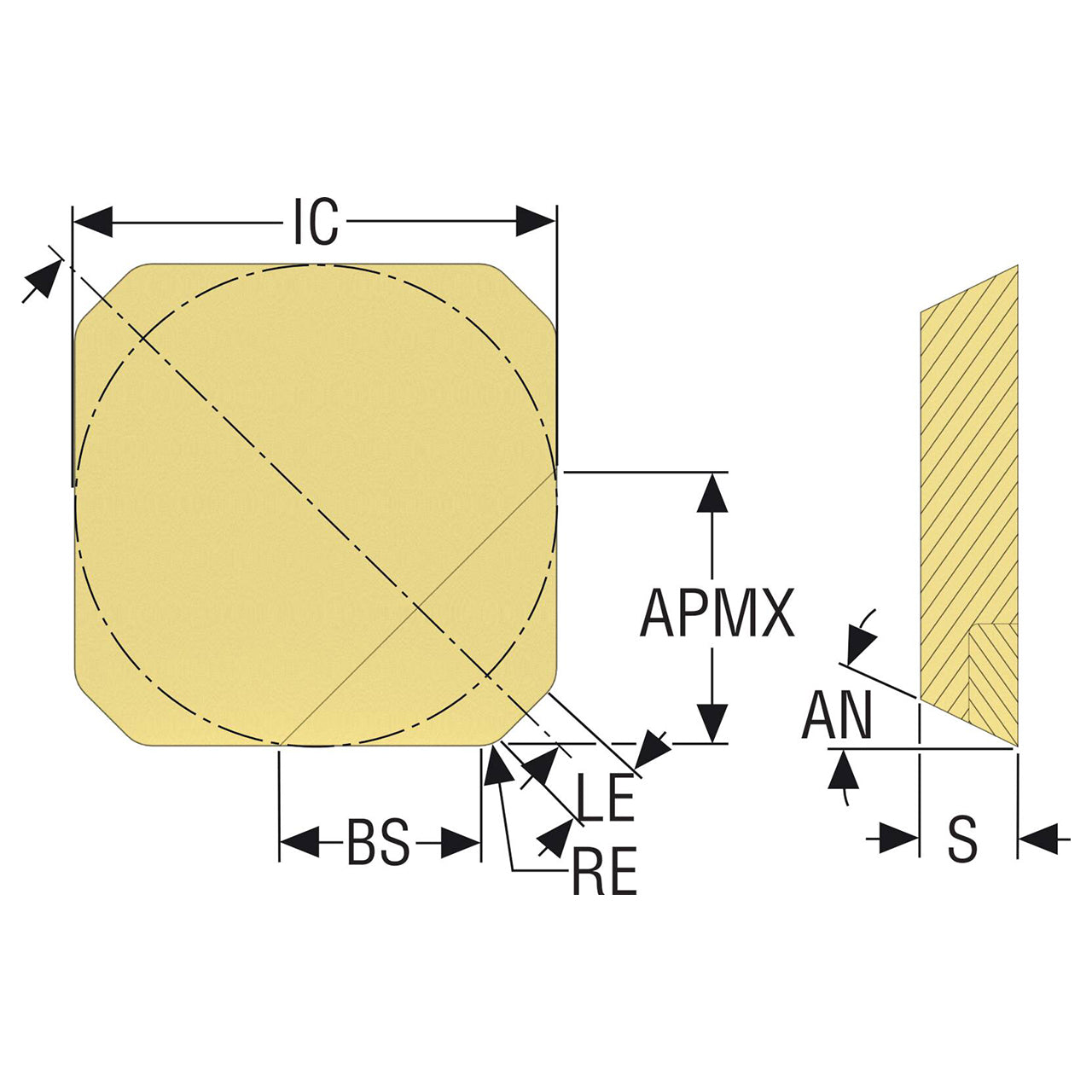

Product Specifications
| Manufacturer Part Number | 02424332 |
| Inscribed Circle Diameter (Decimal Inch) | 0.500" |
| Inscribed Circle Diameter (mm) | 12.70mm |
| Wiper Edge Length (Decimal Inch) | 0.063" |
| Wiper Edge Length (mm) | 1.60mm |
| Cutting Edge Effective Length (Decimal Inch) | 0.102" |
| Cutting Edge Effective Length (mm) | 2.60mm |
| Corner Radius (Decimal Inch) | 0.039" |
| Corner Radius (mm) | 1.00mm |
| Insert Thickness (Decimal Inch) | 0.125" |
| Insert Thickness (mm) | 3.18mm |
| Clearance Angle Major (Degree) | 26 Degree |
| Cutting Edge Condition Code | F |
| Cutting Edge Count | 1 |
| Insert Included Angle (Degree) | 90 Degree |
| Material | PCD |
| Product Type | Milling Insert |
