Product Specifications
| Manufacturer Part Number | 02422070 |
| Body Diameter (Decimal Inch) | 3.071" |
| Body Diameter (mm) | 78.00mm |
| Connection Diameter Workpiece Side (Decimal Inch) | 1.260" |
| Connection Diameter Workpiece Side (mm) | 32.00mm |
| Shank Diameter (Decimal Inch) | 1.260" |
| Shank Diameter (mm) | 32.00mm |
| Body Length (Decimal Inch) | 0.551" |
| Body Length (mm) | 14.00mm |
| Functional Length (Decimal Inch) | 1.575" |
| Functional Length (mm) | 40.00mm |
| Clamping Length (Decimal Inch) | 0.945" |
| Clamping Length (mm) | 24.00mm |
| Overall Length (Decimal Inch) | 4.095" |
| Overall Length (mm) | 104.00mm |
| Body Half Taper Angle Degree) | 30 Degree |

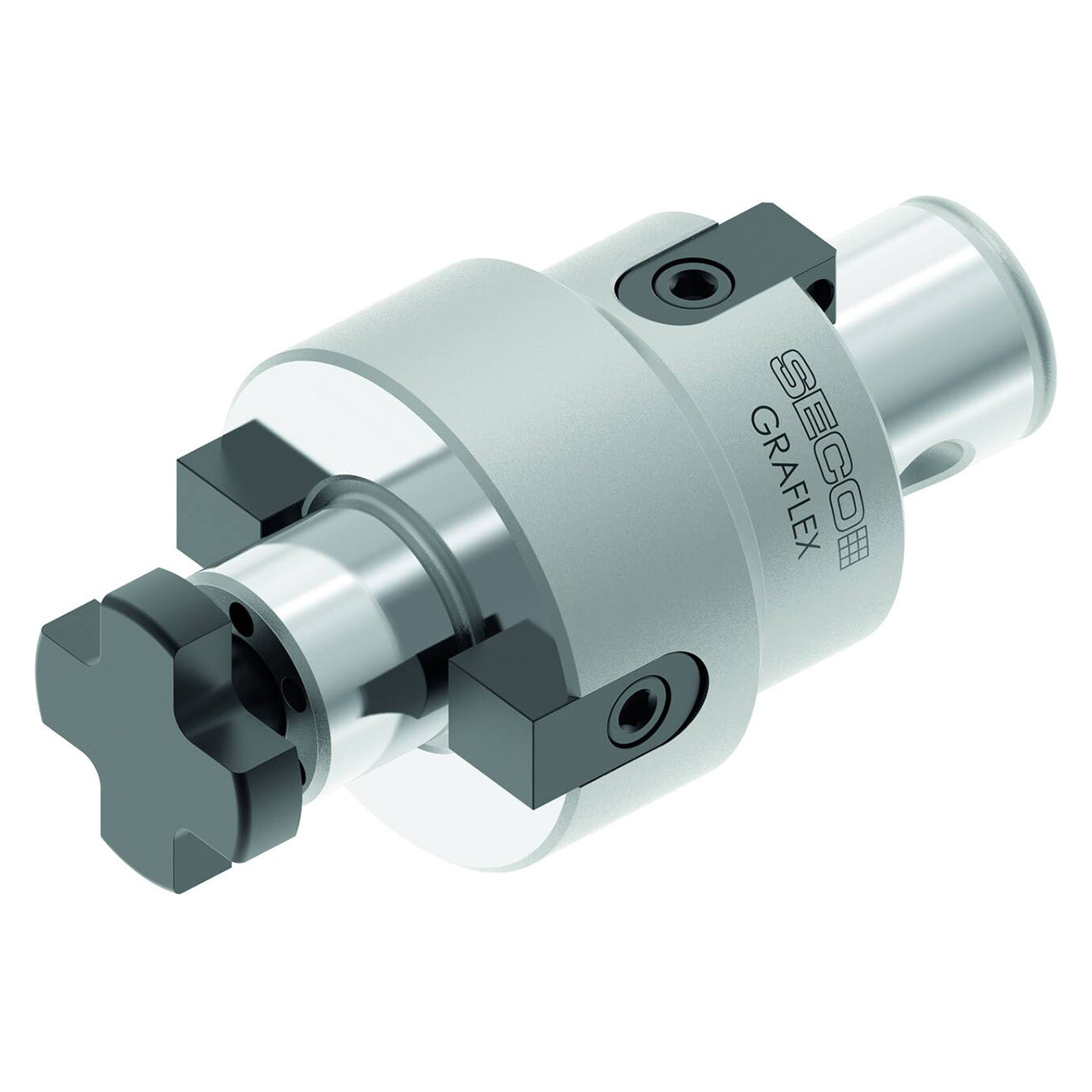

| Product Type | Shell Mill Holder |
