Product Specifications
| Manufacturer Part Number | 02411154 |
| Minimum Cutting Diameter Internal (mm) | 32.00mm |
| Connection Diameter Machine Side (mm) | 25.00mm |
| Shank Diameter (mm) | 25.00mm |
| Functional Length (mm) | 300.00mm |
| Head Length (mm) | 45.00mm |
| Shank Width (mm) | 23.00mm |
| Maximum Radial Cutting Depth (mm) | 4.50mm |
| Maximum Cutting Depth (mm) | 4.50mm |
| Height of Tool Holder Shank (mm) | 23.00mm |
| Functional Width (mm) | 17.00mm |
| Rake Orthogonal Angle (Degree) | -6 Degree |
| Cutting Direction | Left Hand |
| Insert Clamping System | P |
| Tool Cutting Edge Angle (Degree) | 93 Degree |
| Tool Cutting Edge Angle Code | U |
| Tool Cutting Edge Angle In Feed Direction End (Degree) | 93 Degree |
| Tool Cutting Edge Angle In Feed Direction Side (Degree) | 122 Degree |
| Inclination Angle (Degree) | -13 Degree |
| Insert Shape Code | D |
| Shank Type | Cylindrical |

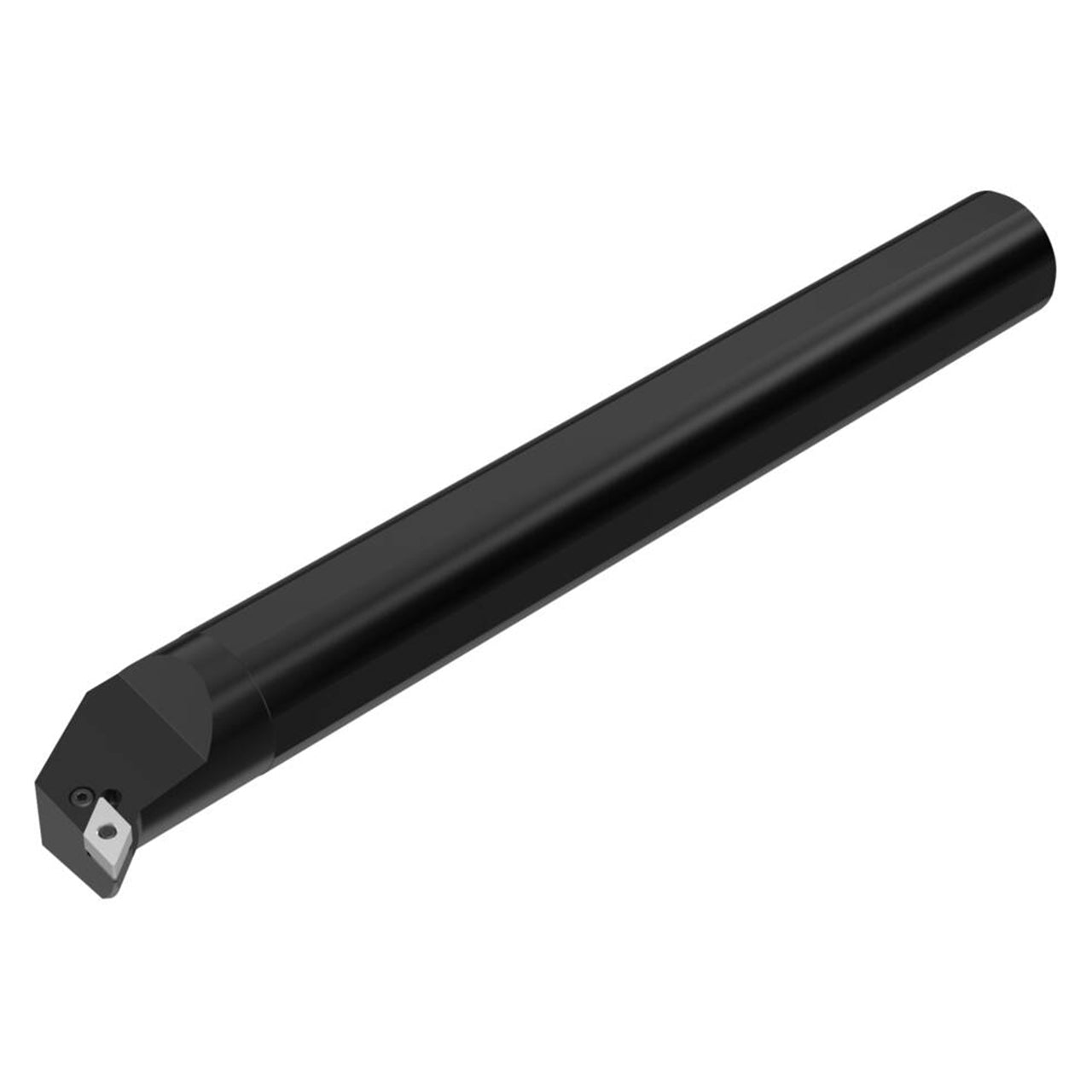

| Product Type | Indexable Boring Bar |
