Product Specifications
| Manufacturer Part Number | 02411151 |
| Minimum Cutting Diameter Internal (mm) | 50.00mm |
| Connection Diameter Machine Side (mm) | 40.00mm |
| Shank Diameter (mm) | 40.00mm |
| Functional Length (mm) | 400.00mm |
| Head Length (mm) | 60.00mm |
| Shank Width (mm) | 37.50mm |
| Height of Tool Holder Shank (mm) | 37.00mm |
| Functional Width (mm) | 27.00mm |
| Rake Orthogonal Angle (Degree) | -6 Degree |
| Cutting Direction | Right Hand |
| Insert Clamping System | P |
| Tool Cutting Edge Angle (Degree) | 95 Degree |
| Tool Cutting Edge Angle Code | L |
| Tool Cutting Edge Angle In Feed Direction End (Degree) | 95 Degree |
| Tool Cutting Edge Angle In Feed Direction Side (Degree) | 95 Degree |
| Inclination Angle (Degree) | -10 Degree |
| Insert Shape Code | C |
| Shank Type | Cylindrical |

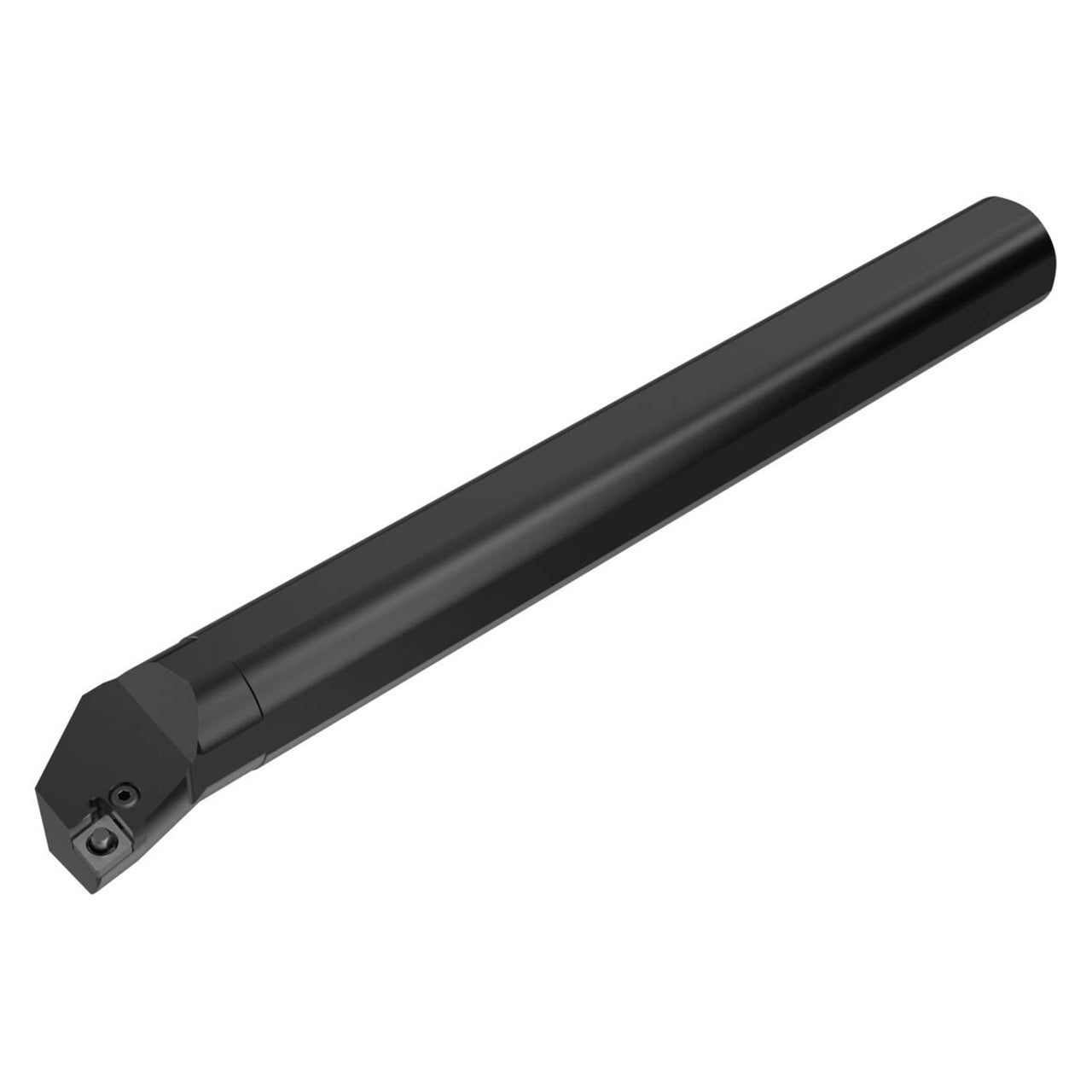

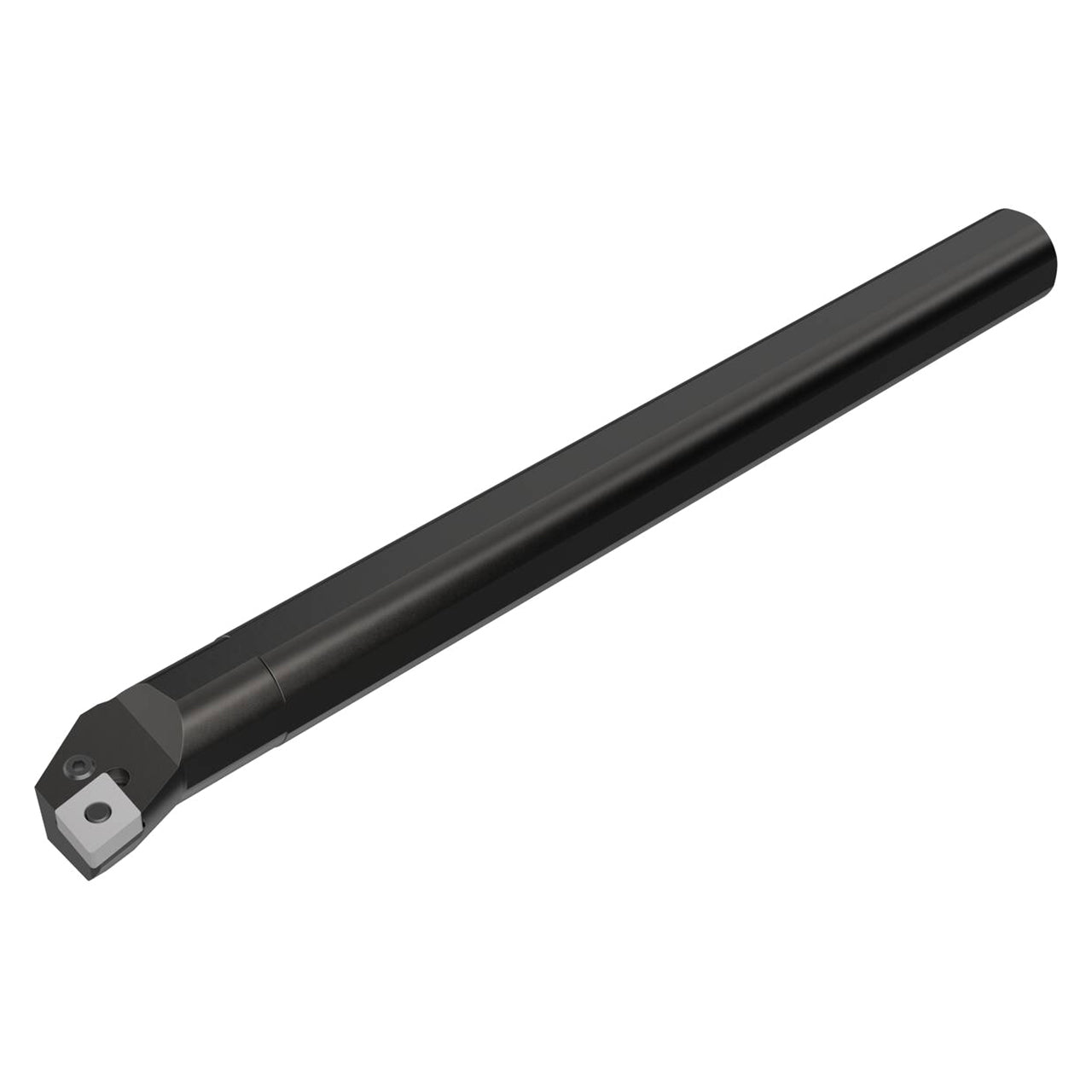

| Product Type | Indexable Boring Bar |
