Product Specifications
| Manufacturer Part Number | 00099664 |
| Body Diameter 1 (Decimal Inch) | 2.205" |
| Body Diameter 1 (mm) | 56.00mm |
| Minimum Connection Bore Diameter (Decimal Inch) | 0.098" |
| Minimum Connection Bore Diameter (mm) | 2.50mm |
| Maximum Connection Bore Diameter (Decimal Inch) | 0.630" |
| Maximum Connection Bore Diameter (mm) | 16.00mm |
| Body Length (Decimal Inch) | 3.661" |
| Body Length (mm) | 93.00mm |
| Functional Length (Decimal Inch) | 4.409" |
| Functional Length (mm) | 112.00mm |
| Protruding Length (Decimal Inch) | 4.409" |
| Protruding Length (mm) | 112.00mm |
| Overall Length (Decimal Inch) | 8.413" |
| Overall Length (mm) | 213.70mm |
| Data Chip Provision | 1 |

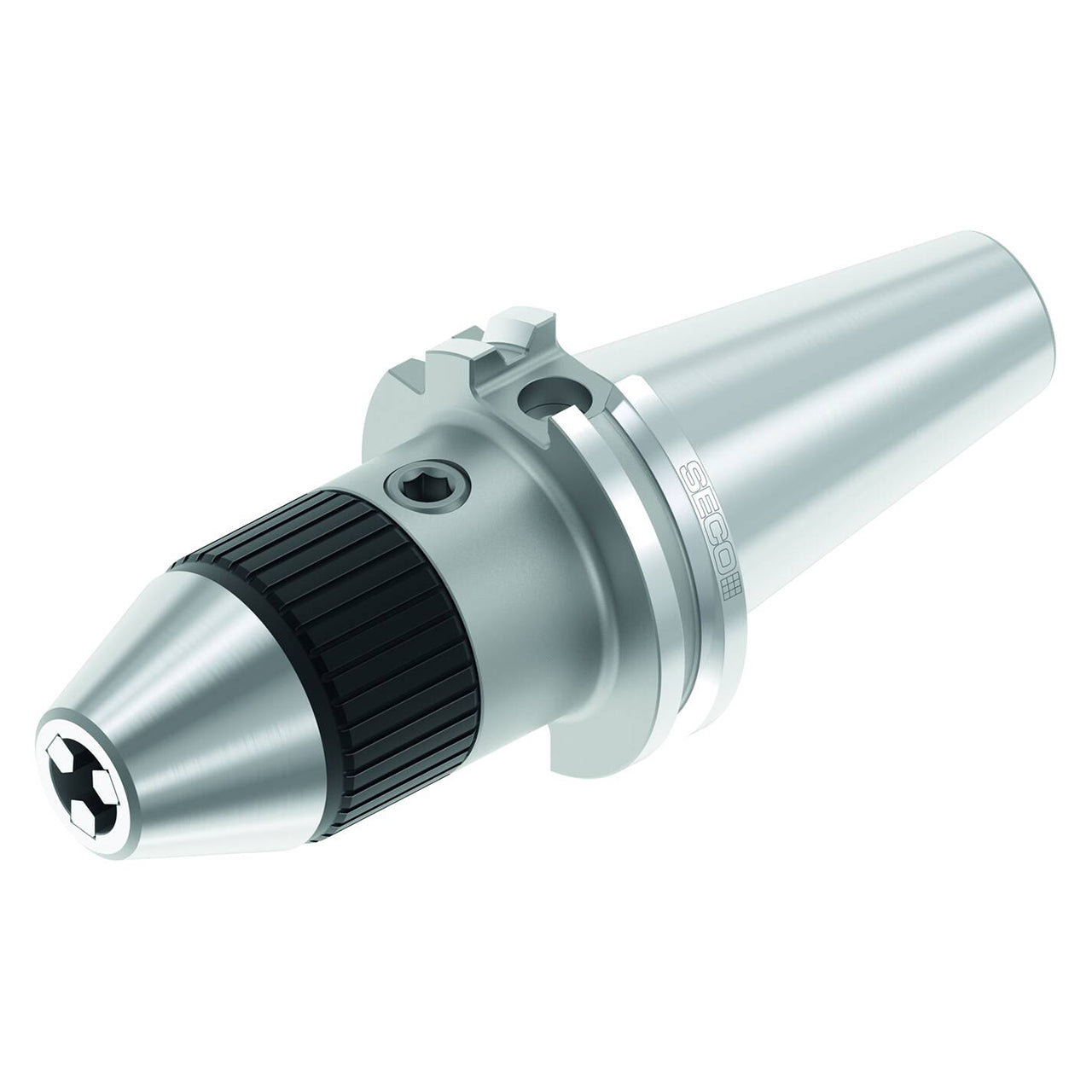

| Product Type | Drill Chuck |
