Product Specifications
| Manufacturer Part Number | 00099029 |

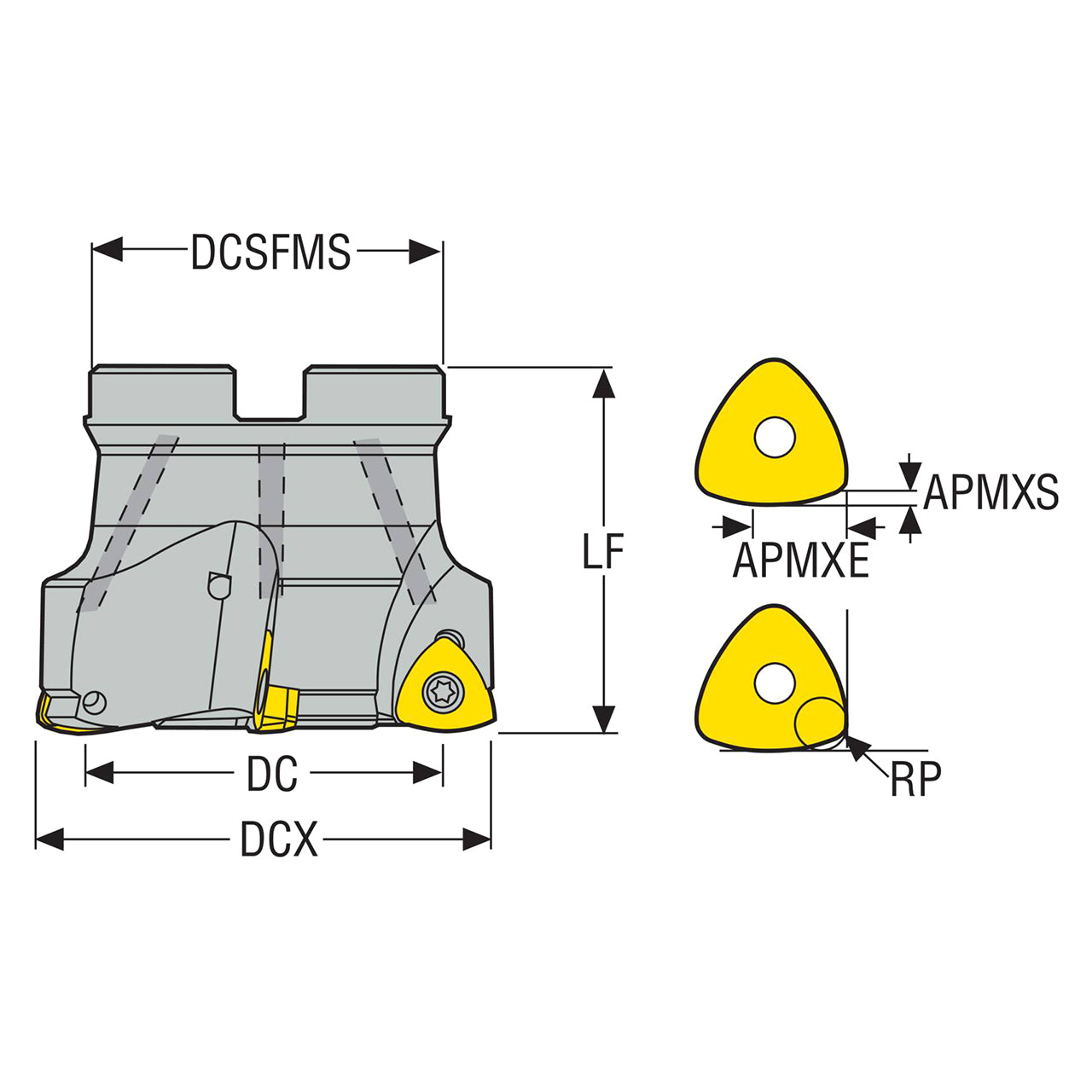

| Cutting Diameter (mm) | 46.80mm |
| Cutting Diameter (Decimal Inch) | 1.843" |
| Contact Surface Diameter Machine Side (Decimal Inch) | 2.350" |
| Contact Surface Diameter Machine Side (mm) | 59.70mm |
| Maximum Cutting Diameter (Decimal Inch) | 2.500" |
| Maximum Cutting Diameter (mm) | 63.50mm |
| Functional Length (Decimal Inch) | 2.000" |
| Functional Length (mm) | 50.80mm |
| Cutting Item Material Type | Steel |
| Maximum Ramping Angle (Degree) | 0.83 Degree |
| Programming Radius (Decimal Inch) | 0.119" |
| Programming Radius (mm) | 3.02mm |
| Maximum Rotational Speed (rpm) | 11500 rpm |
| Shank Type | Arbor |
| Insert Seat Size Code | 160 |

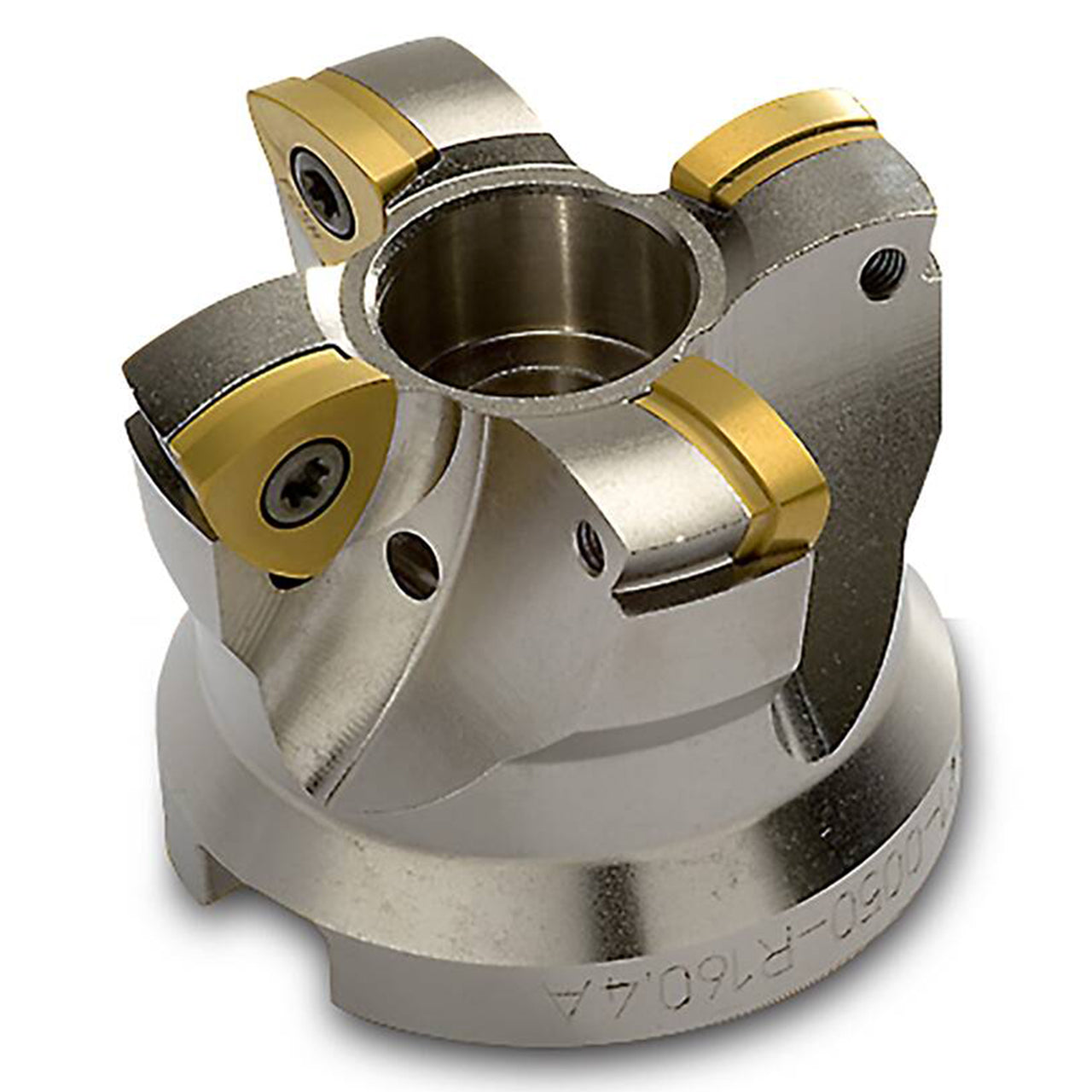

| Product Type | High Feed Trigon Shape Insert |
