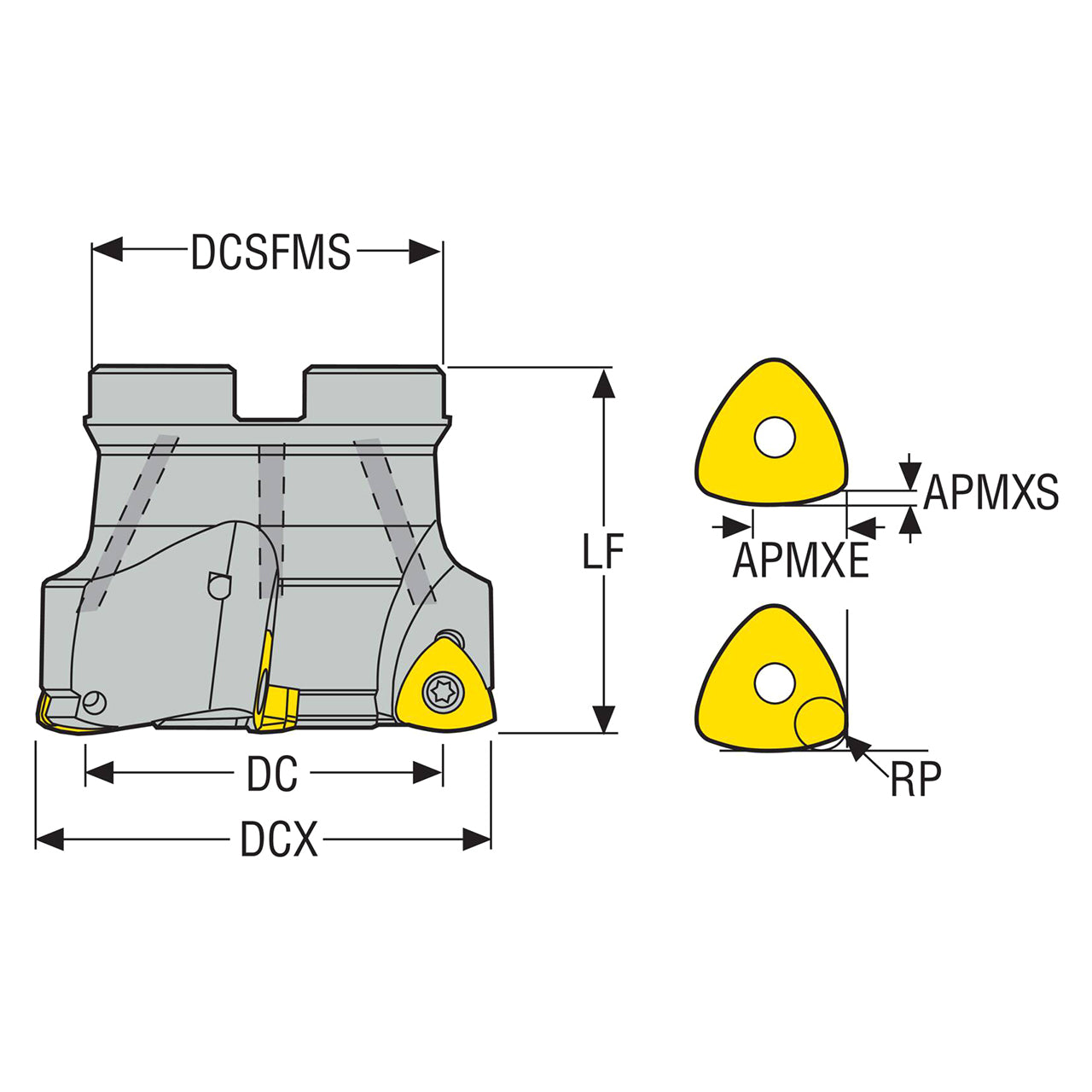

Product Specifications
| Manufacturer Part Number | 00098952 |
| Cutting Diameter (mm) | 34.18mm |
| Cutting Diameter (Decimal Inch) | 1.346" |
| Contact Surface Diameter Machine Side (Decimal Inch) | 1.850" |
| Contact Surface Diameter Machine Side (mm) | 47.00mm |
| Maximum Cutting Diameter (Decimal Inch) | 2.000" |
| Maximum Cutting Diameter (mm) | 50.80mm |
| Functional Length (Decimal Inch) | 1.600" |
| Functional Length (mm) | 40.64mm |
| Cutting Item Material Type | Steel |
| Maximum Ramping Angle (Degree) | 1.17 Degree |
| Programming Radius (Decimal Inch) | 0.119" |
| Programming Radius (mm) | 3.03mm |
| Maximum Rotational Speed (rpm) | 12900 rpm |
| Shank Type | Arbor |
| Insert Seat Size Code | 160 |
| Product Type | High Feed Trigon Shape Insert |
