Product Specifications
| Manufacturer Part Number | 00098850 |

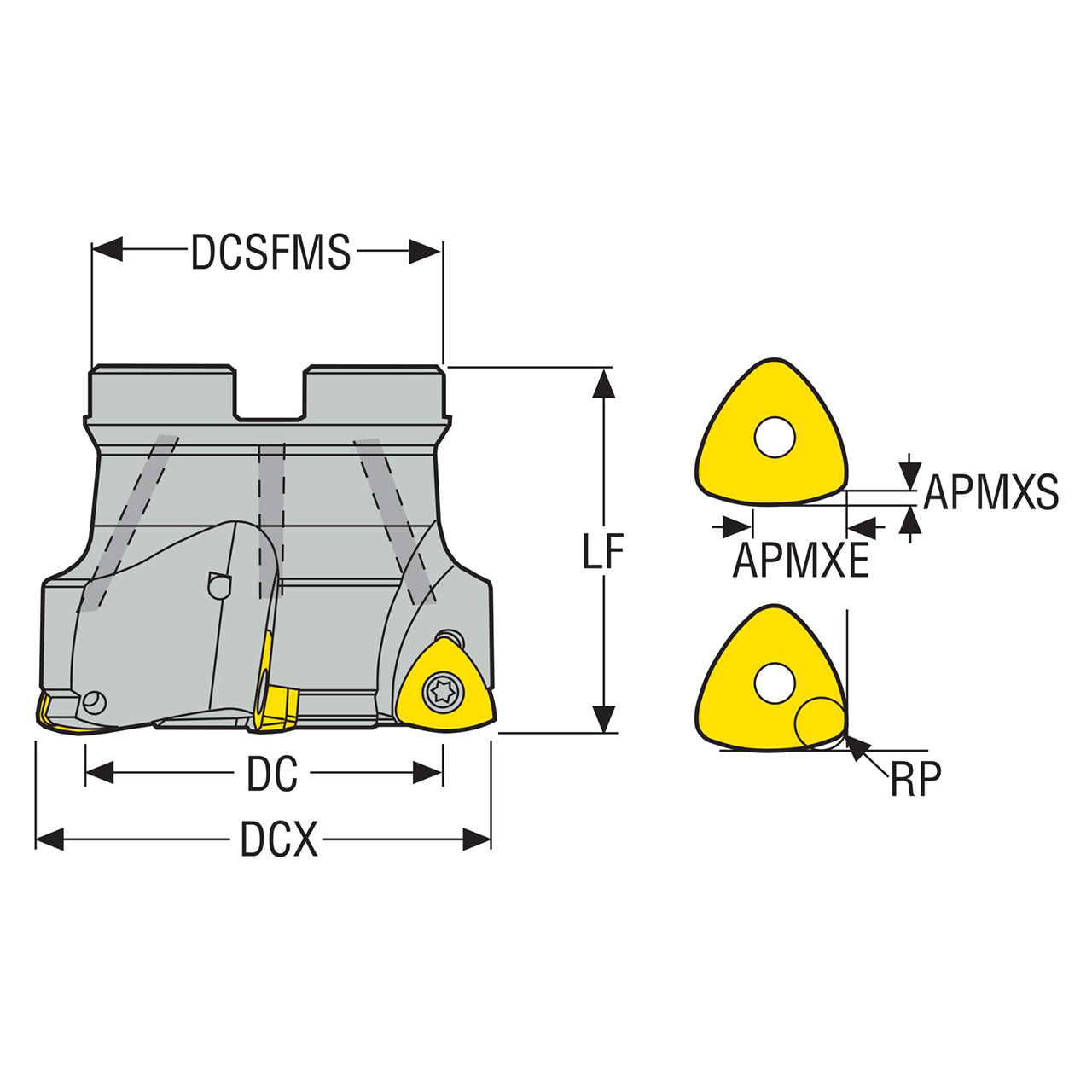

| Cutting Diameter (mm) | 25.46mm |
| Cutting Diameter (Decimal Inch) | 1.002" |
| Contact Surface Diameter Machine Side (Decimal Inch) | 1.378" |
| Contact Surface Diameter Machine Side (mm) | 35.00mm |
| Maximum Cutting Diameter (Decimal Inch) | 1.500" |
| Maximum Cutting Diameter (mm) | 38.10mm |
| Functional Length (Decimal Inch) | 1.600" |
| Functional Length (mm) | 40.64mm |
| Cutting Item Material Type | Steel |
| Maximum Ramping Angle (Degree) | 1.69 Degree |
| Programming Radius (Decimal Inch) | 0.087" |
| Programming Radius (mm) | 2.20mm |
| Maximum Rotational Speed (rpm) | 17600 rpm |
| Shank Type | Arbor |
| Insert Seat Size Code | 125 |

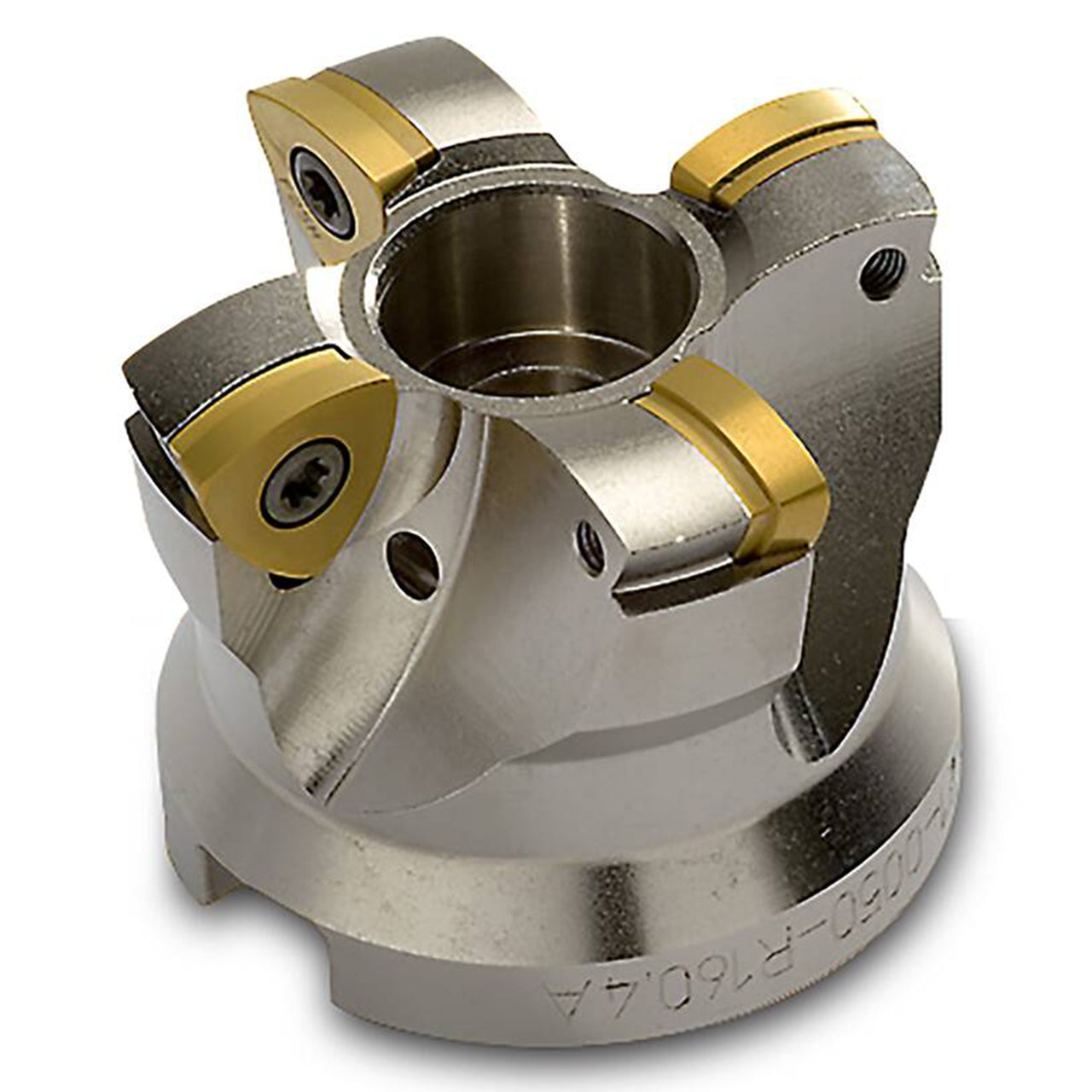

| Product Type | High Feed Trigon Shape Insert |
