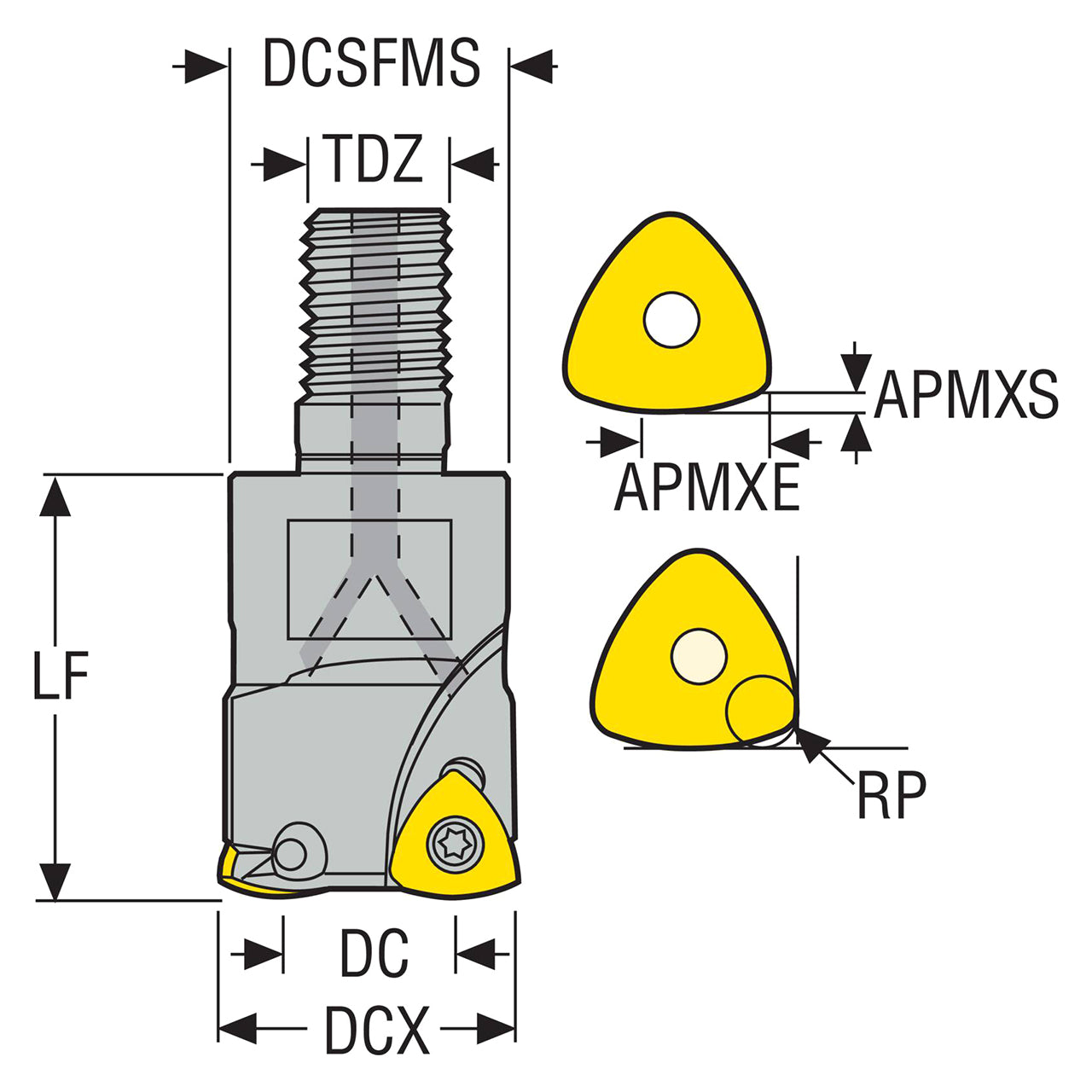

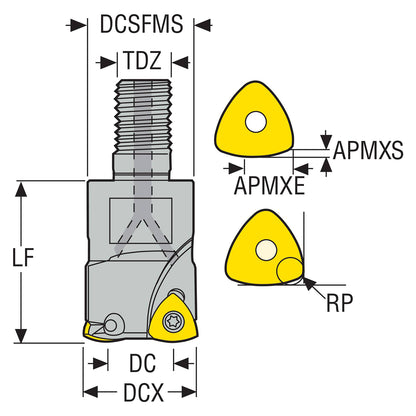

Product Specifications
| Manufacturer Part Number | 00098330 |
| Cutting Diameter (Decimal Inch) | 0.663" |
| Cutting Diameter (mm) | 16.85mm |
| Contact Surface Diameter Machine Side (Decimal Inch) | 0.906" |
| Contact Surface Diameter Machine Side (mm) | 23.00mm |
| Maximum Cutting Diameter (Decimal Inch) | 1.000" |
| Maximum Cutting Diameter (mm) | 25.40mm |
| Thread Diameter Size | M12 |
| Maximum Helical Interpolation Hole Diameter (Decimal Inch) | 1.921" |
| Maximum Helical Interpolation Hole Diameter (mm) | 48.80mm |
| Minimum Helical Interpolation Hole Diameter (Decimal Inch) | 1.663" |
| Minimum Helical Interpolation Hole Diameter (mm) | 42.25mm |
| Functional Length (Decimal Inch) | 1.400" |
| Functional Length (mm) | 35.56mm |
| Overall Length (Decimal Inch) | 2.256" |
| Overall Length (mm) | 57.31mm |
| Maximum Depth of Cut (mm) | 0.70mm |
| Maximum Depth of Cut (Decimal Inch) | 0.028" |
| Connection Mounting Torque (Nm) | 60.0 Nm |
| Programming Radius (Decimal Inch) | 0.058" |
| Programming Radius (mm) | 1.47mm |
| Uncut Thickness (Decimal Inch) | 0.0177 |
| Uncut Thickness (mm) | 0.45 |
| Coolant Entry Style Code | 1 |
| Cutting Pitch Density | Close |
| Coolant Supply Property | 1 |
| Coolant Exit Style Code | 3 |
| Rake Radial Angle (Degree) | -4 Degree |
| Rake Radial Angle (Degree) | -4 Degree |
| Rake Orthogonal Angle (Degree) | -4 Degree |
| Axial Rake Angle (Degree) | 6 Degree |
| Maximum Ramping Angle (Degree) | 3.38 Degree |
| Maximum Rotational Speed (rpm) | 29100 rpm |
| Insert Shape Code | 218.19 |
| Shank Type | Combimaster |

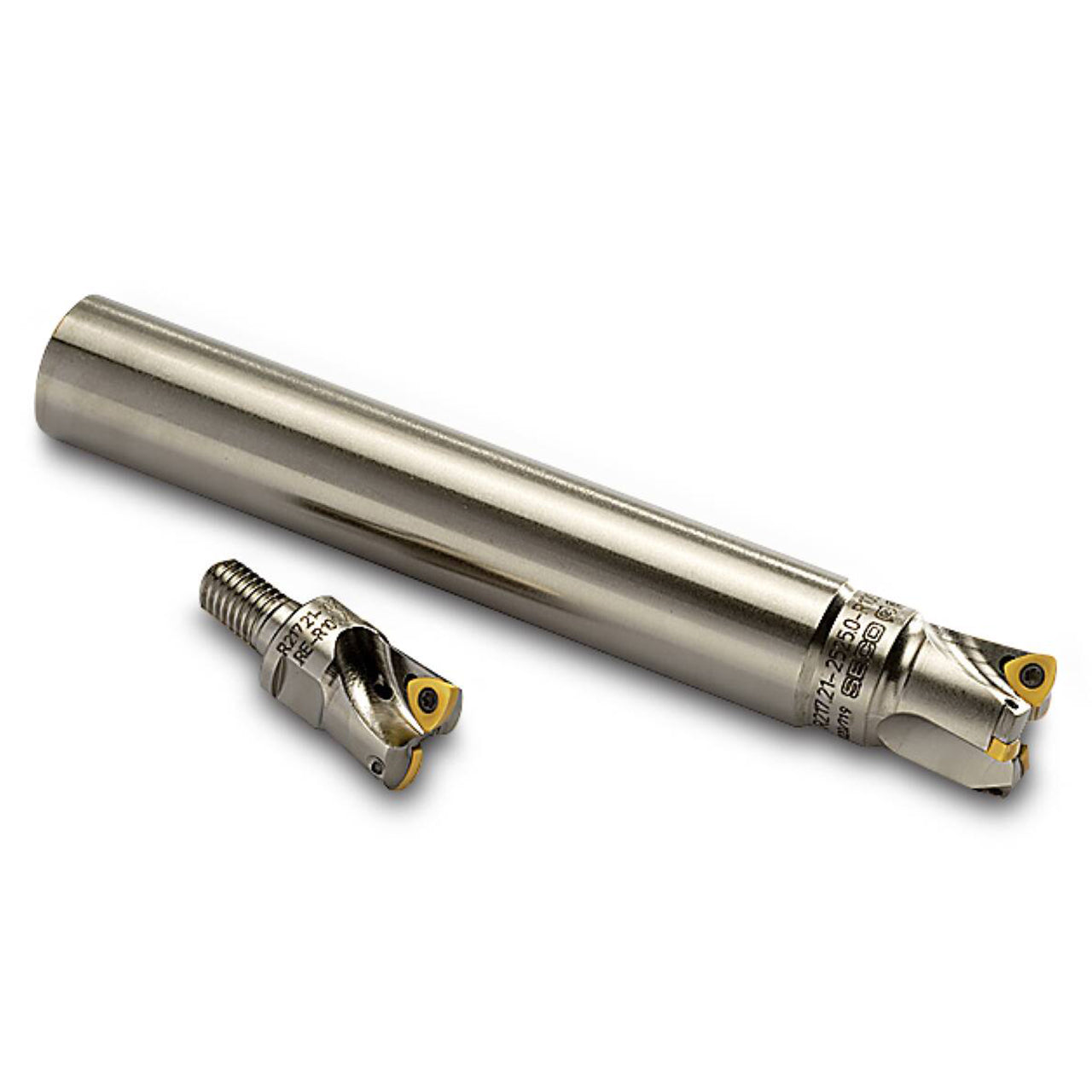

| Product Type | Indexable High-Feed End Mill |
