Product Specifications

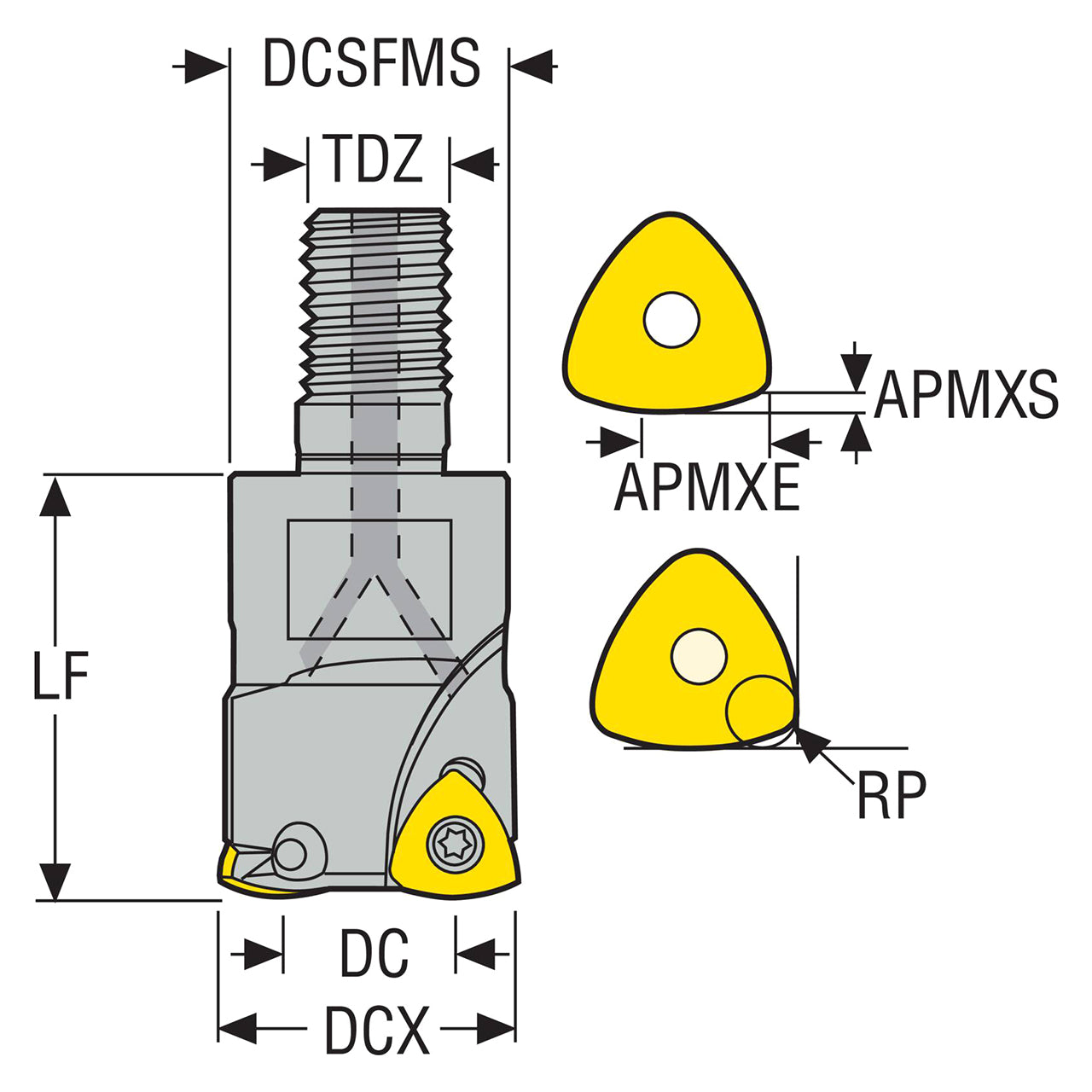

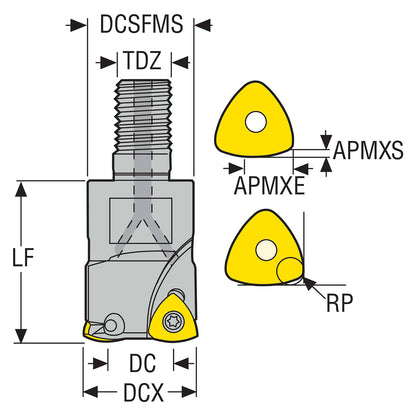

| Manufacturer Part Number | 00098320 |
| Cutting Diameter (Decimal Inch) | 0.414" |
| Cutting Diameter (mm) | 10.52mm |
| Contact Surface Diameter Machine Side (Decimal Inch) | 0.728" |
| Contact Surface Diameter Machine Side (mm) | 18.50mm |
| Maximum Cutting Diameter (Decimal Inch) | 0.750" |
| Maximum Cutting Diameter (mm) | 19.05mm |
| Thread Diameter Size | M10 |
| Maximum Helical Interpolation Hole Diameter (Decimal Inch) | 1.421" |
| Maximum Helical Interpolation Hole Diameter (mm) | 36.10mm |
| Minimum Helical Interpolation Hole Diameter (Decimal Inch) | 1.164" |
| Minimum Helical Interpolation Hole Diameter (mm) | 29.57mm |
| Functional Length (Decimal Inch) | 1.100" |
| Functional Length (mm) | 27.94mm |
| Overall Length (Decimal Inch) | 1.838" |
| Overall Length (mm) | 46.69mm |
| Maximum Depth of Cut (mm) | 0.70mm |
| Maximum Depth of Cut (Decimal Inch) | 0.028" |
| Connection Mounting Torque (Nm) | 40.0 Nm |
| Programming Radius (Decimal Inch) | 0.058" |
| Programming Radius (mm) | 1.47mm |
| Uncut Thickness (Decimal Inch) | 0.0173 |
| Uncut Thickness (mm) | 0.44 |
| Coolant Entry Style Code | 1 |
| Cutting Pitch Density | Normal |
| Coolant Supply Property | 1 |
| Coolant Exit Style Code | 3 |
| Rake Radial Angle (Degree) | -3 Degree |
| Rake Radial Angle (Degree) | -3 Degree |
| Rake Orthogonal Angle (Degree) | -3 Degree |
| Axial Rake Angle (Degree) | 6 Degree |
| Maximum Ramping Angle (Degree) | 6.45 Degree |
| Maximum Rotational Speed (rpm) | 32600 rpm |
| Insert Shape Code | 218.19 |
| Shank Type | Combimaster |

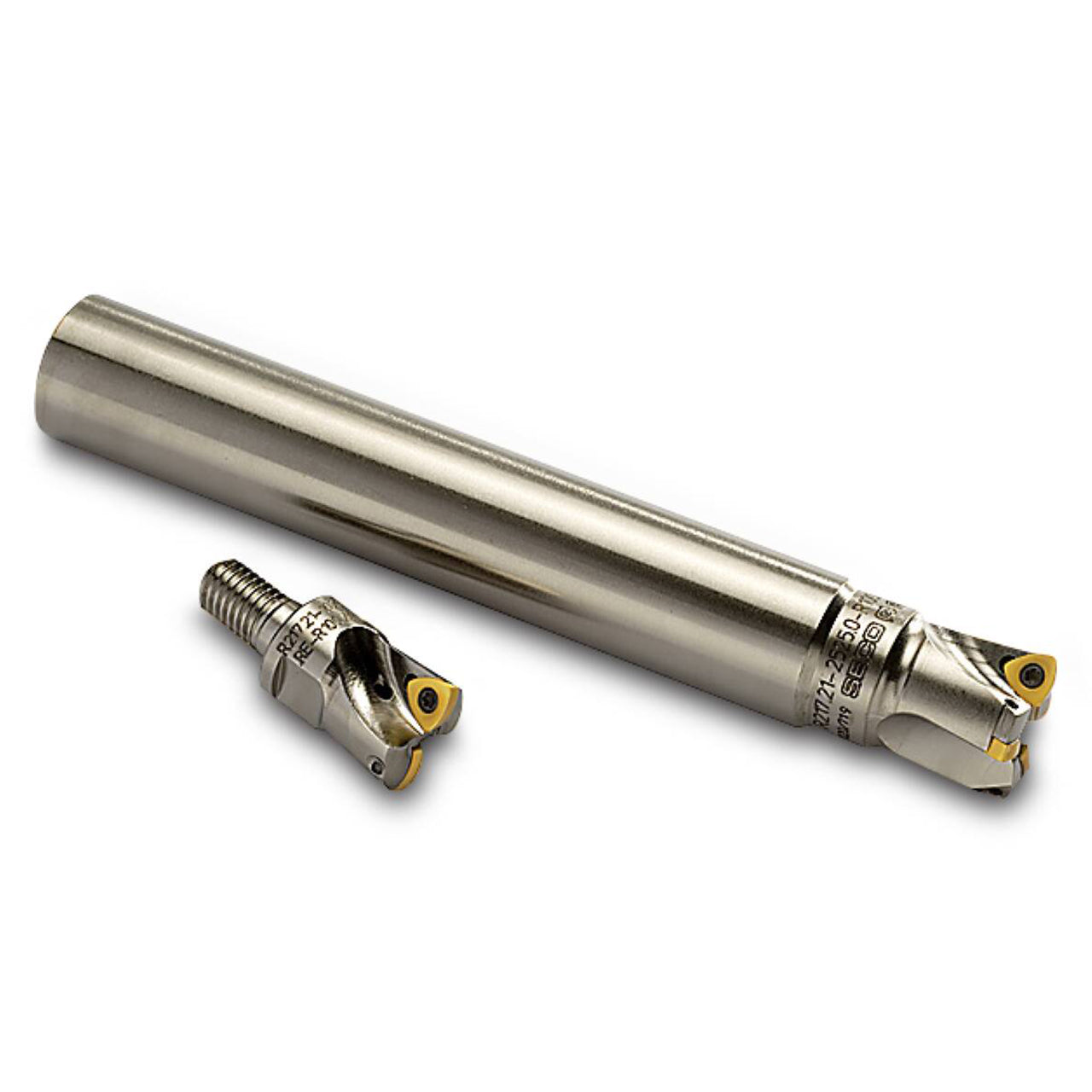

| Product Type | Indexable High-Feed End Mill |
