Product Specifications

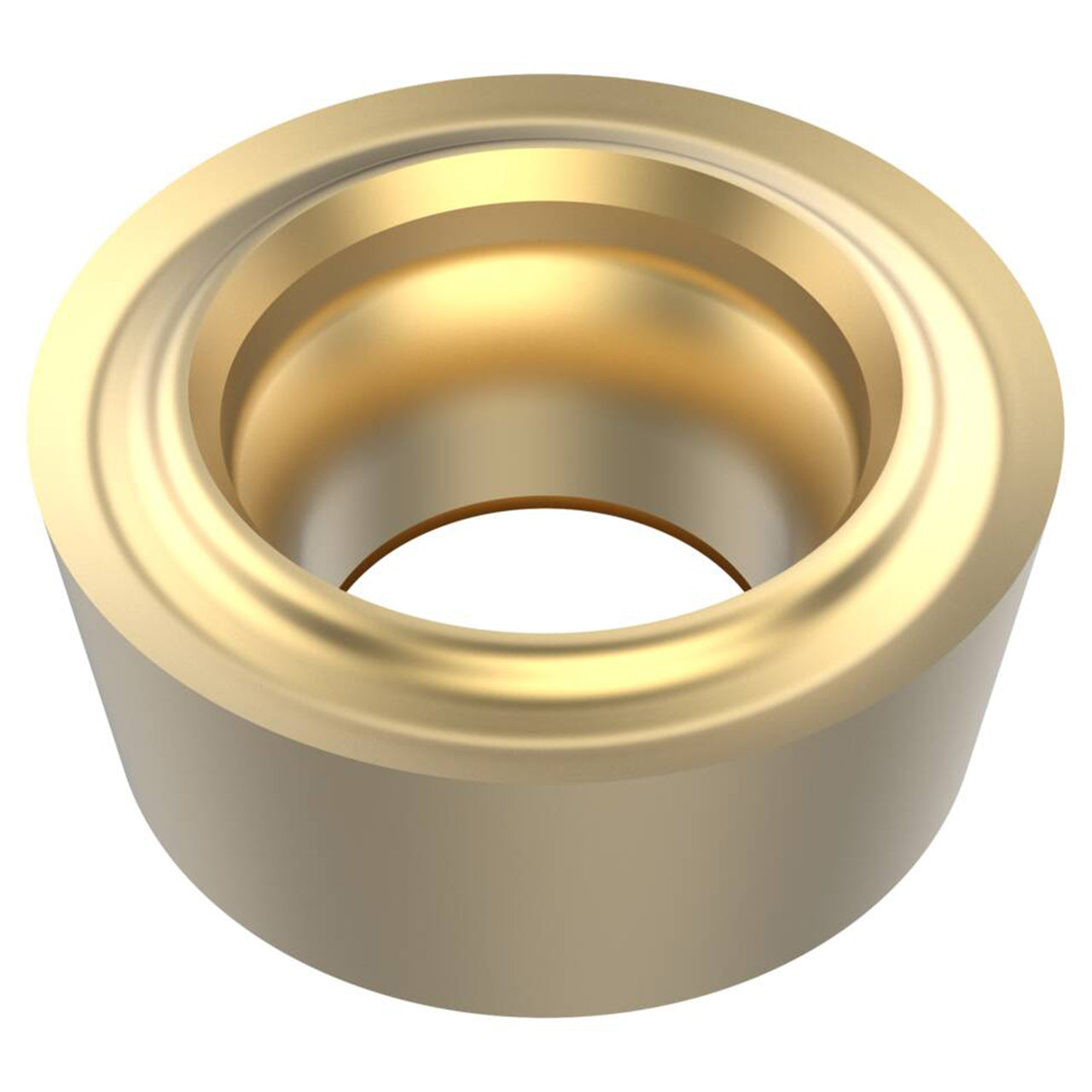

| Manufacturer Part Number | 00098008 |
| Fixing Hole Diameter (Decimal Inch) | 0.114" |
| Fixing Hole Diameter (mm) | 2.90mm |
| Insert Diameter (Decimal Inch) | 0.236" |
| Insert Diameter (mm) | 6.00mm |
| Corner Chamfer Width (Decimal Inch) | 0.005" |
| Corner Chamfer Width (mm) | 0.12mm |
| Insert Thickness (Decimal Inch) | 0.094" |
| Insert Thickness (mm) | 2.38mm |
| Clearance Angle Major (Degree) | 7 Degree |
| Cutting Edge Count | 4 |
| Insert Size And Shape | RC0602 |
| Insert Hand | Neutral |
| Material | Carbide |
| Product Type | Turning Insert |
