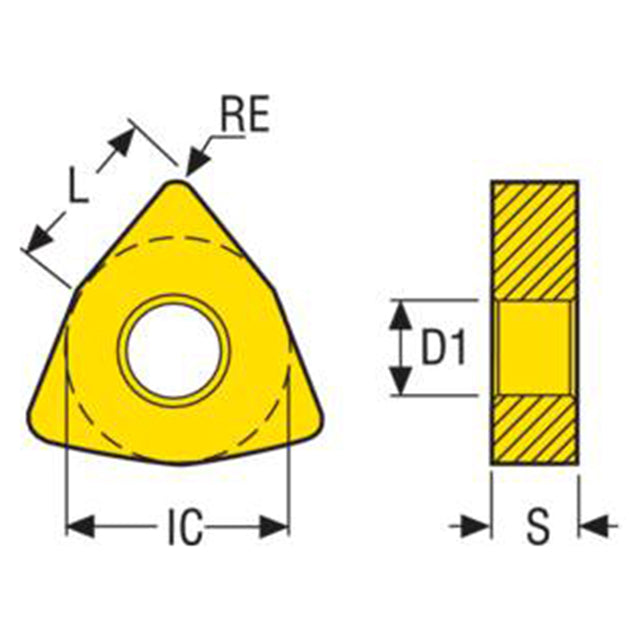

Product Specifications
| Manufacturer Part Number | 00096761 |
| Fixing Hole Diameter (Decimal Inch) | 0.093" |
| Fixing Hole Diameter (mm) | 2.36mm |
| Inscribed Circle Diameter (Decimal Inch) | 0.156" |
| Inscribed Circle Diameter (mm) | 3.97mm |
| Cutting Edge Effective Length (Decimal Inch) | 0.189" |
| Cutting Edge Effective Length (mm) | 4.80mm |
| Theoretical Cutting Edge Length (Decimal Inch) | 0.197" |
| Theoretical Cutting Edge Length (mm) | 5.00mm |
| Corner Radius (Decimal Inch) | 0.008" |
| Corner Radius (mm) | 0.20mm |
| Insert Thickness (Decimal Inch) | 0.063" |
| Insert Thickness (mm) | 1.59mm |
| Cutting Edge Count | 3 |
| Clearance Angle Major (Degree) | 5 Degree |
| Insert Included Angle (Degree) | 80 Degree |
| Insert Hand | Neutral |
| Insert Size And Shape | WB0301 |
| Insert Shape Code | B |
| Material | Carbide |
| Product Type | Turning Insert |
