Product Specifications
| Manufacturer Part Number | 00096487 |
| Body Diameter 1 (Decimal Inch) | 0.866" |
| Body Diameter 1 (mm) | 22.00mm |
| Body Diameter 2 (Decimal Inch) | 1.817" |
| Body Diameter 2 (mm) | 46.14mm |
| Connection Bore Diameter (Decimal Inch) | 0.551" |
| Connection Bore Diameter (mm) | 14.00mm |
| Minimum Connection Bore Diameter (Decimal Inch) | 0.551" |
| Minimum Connection Bore Diameter (mm) | 14.00mm |
| Maximum Connection Bore Diameter (Decimal Inch) | 0.551" |
| Maximum Connection Bore Diameter (mm) | 14.00mm |
| Body Length (Decimal Inch) | 6.063" |
| Body Length (mm) | 154.00mm |
| Body Length 1 (Decimal Inch) | 1.575" |
| Body Length 1 (mm) | 40.00mm |
| Body Length 2 (Decimal Inch) | 1.575" |
| Body Length 2 (mm) | 40.00mm |
| Functional Length (Decimal Inch) | 5.748" |
| Functional Length (mm) | 146.00mm |
| Minimum Functional Length (Decimal Inch) | 5.256" |
| Protruding Length (Decimal Inch) | 7.087" |
| Protruding Length (mm) | 180.00mm |
| Clamping Length (Decimal Inch) | 1.339" |
| Clamping Length (mm) | 34.00mm |
| Overall Length (Decimal Inch) | 8.347" |
| Overall Length (mm) | 212.00mm |
| Connection Bore Depth (mm) | 48.00mm |
| Body Half Taper Angle 1 (Degree) | 5 Degree |
| Body Half Taper Angle Degree) | 3 Degree |
| Data Chip Provision | 1 |

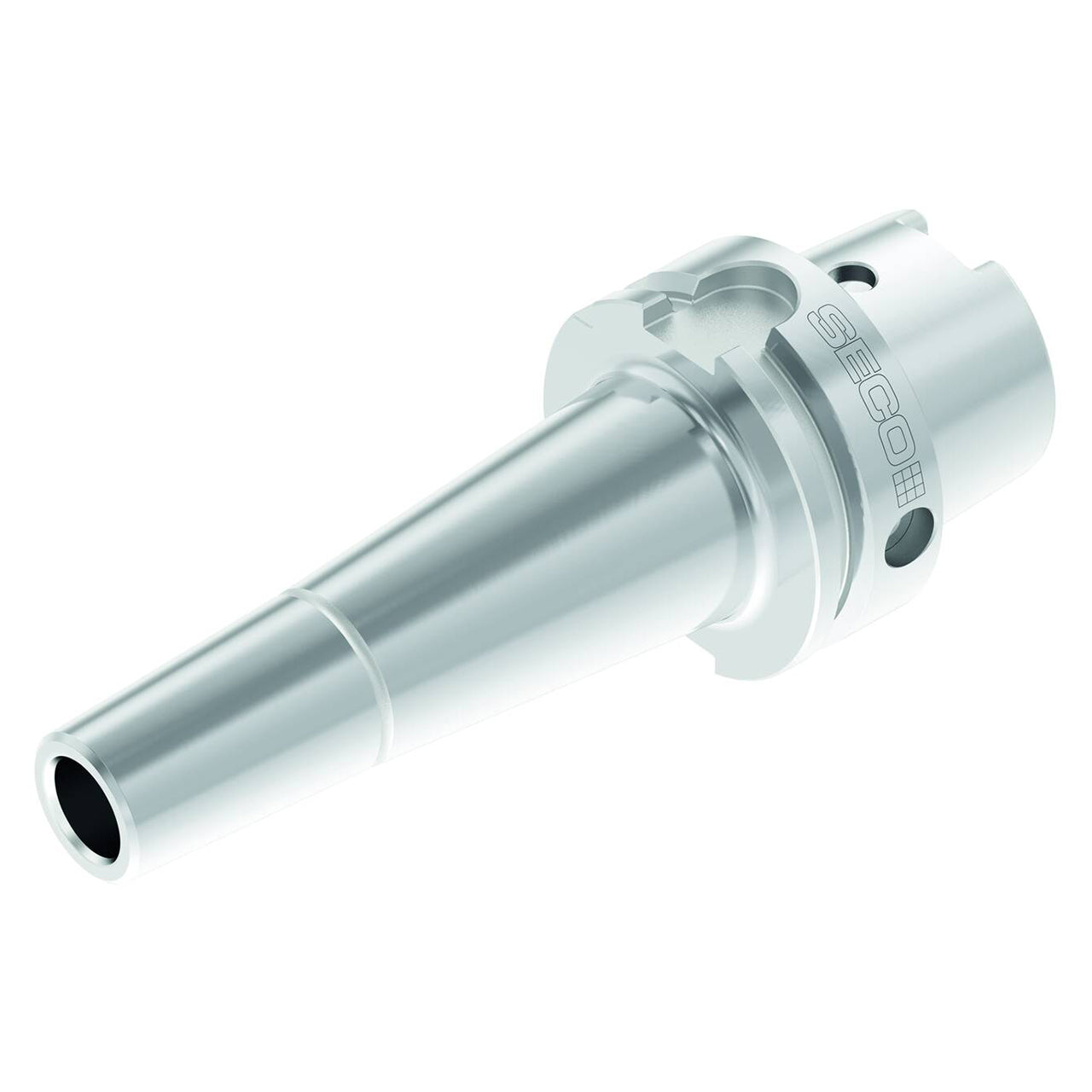

| Product Type | Shrink-Fit Tool Holder |
