Product Specifications
| Manufacturer Part Number | 00096470 |
| Body Diameter 1 (Decimal Inch) | 0.354" |
| Body Diameter 1 (mm) | 9.00mm |
| Body Diameter 2 (Decimal Inch) | 0.795" |
| Body Diameter 2 (mm) | 20.19mm |
| Connection Bore Diameter (Decimal Inch) | 0.118" |
| Connection Bore Diameter (mm) | 3.00mm |
| Minimum Connection Bore Diameter (Decimal Inch) | 0.118" |
| Minimum Connection Bore Diameter (mm) | 3.00mm |
| Maximum Connection Bore Diameter (Decimal Inch) | 0.118" |
| Maximum Connection Bore Diameter (mm) | 3.00mm |
| Body Length (Decimal Inch) | 2.913" |
| Body Length (mm) | 74.00mm |
| Body Length 1 (Decimal Inch) | 0.984" |
| Body Length 1 (mm) | 25.00mm |
| Body Length 2 (Decimal Inch) | 0.984" |
| Body Length 2 (mm) | 25.00mm |
| Functional Length (Decimal Inch) | 3.425" |
| Functional Length (mm) | 87.00mm |
| Minimum Functional Length (Decimal Inch) | 3.366" |
| Protruding Length (Decimal Inch) | 3.937" |
| Protruding Length (mm) | 100.00mm |
| Clamping Length (Decimal Inch) | 0.512" |
| Clamping Length (mm) | 13.00mm |
| Overall Length (Decimal Inch) | 5.197" |
| Overall Length (mm) | 132.00mm |
| Body Half Taper Angle 1 (Degree) | 5 Degree |
| Body Half Taper Angle Degree) | 3 Degree |
| Data Chip Provision | 1 |

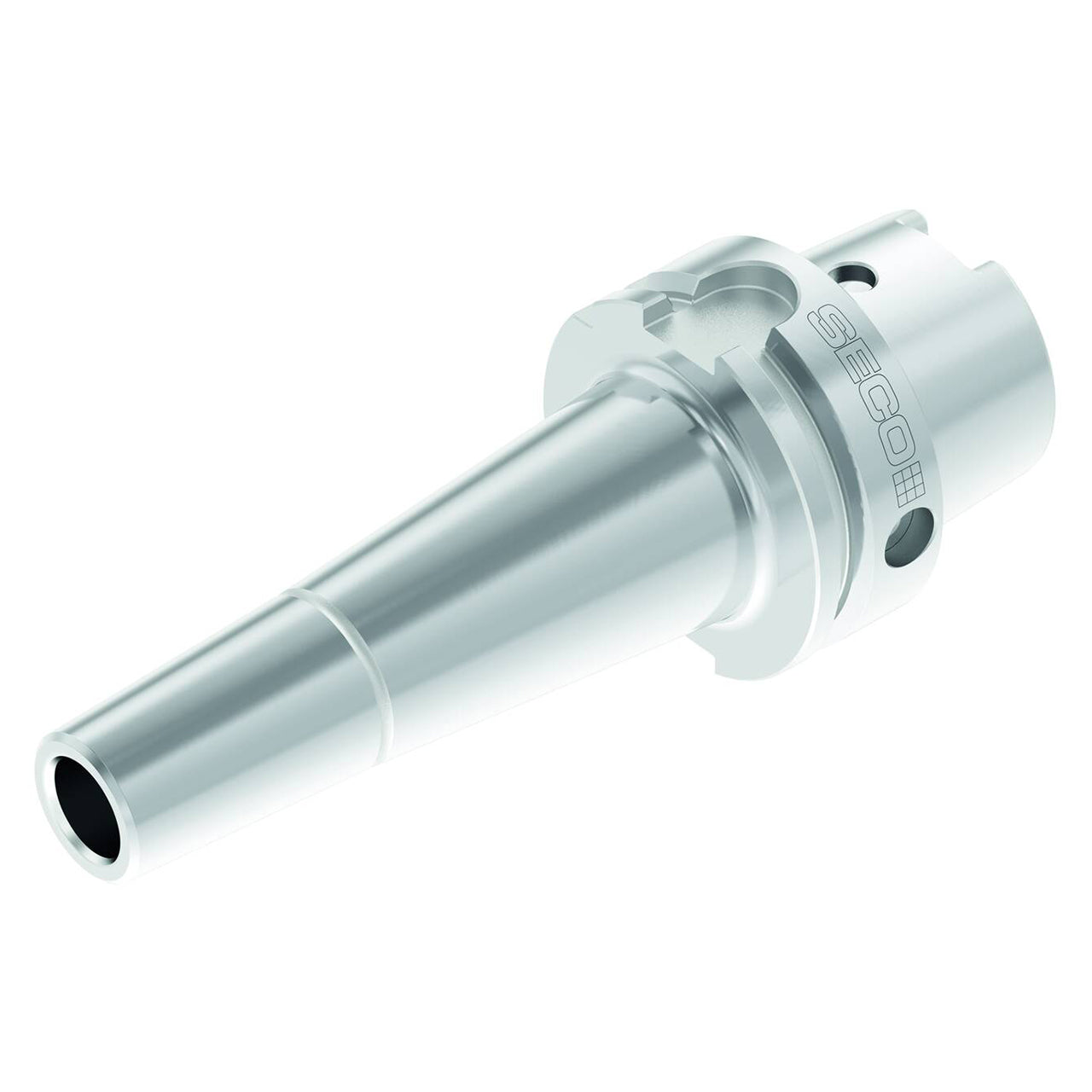

| Product Type | Shrink-Fit Tool Holder |
