Product Specifications
| Manufacturer Part Number | 00096468 |
| Body Diameter 1 (Decimal Inch) | 0.945" |
| Body Diameter 1 (mm) | 24.00mm |
| Body Diameter 2 (Decimal Inch) | 1.999" |
| Body Diameter 2 (mm) | 50.76mm |
| Connection Bore Diameter (Decimal Inch) | 0.630" |
| Connection Bore Diameter (mm) | 16.00mm |
| Minimum Connection Bore Diameter (Decimal Inch) | 0.630" |
| Minimum Connection Bore Diameter (mm) | 16.00mm |
| Maximum Connection Bore Diameter (Decimal Inch) | 0.630" |
| Maximum Connection Bore Diameter (mm) | 16.00mm |
| Body Length (Decimal Inch) | 6.732" |
| Body Length (mm) | 171.00mm |
| Body Length 1 (Decimal Inch) | 1.772" |
| Body Length 1 (mm) | 45.00mm |
| Body Length 2 (Decimal Inch) | 1.772" |
| Body Length 2 (mm) | 45.00mm |
| Functional Length (Decimal Inch) | 6.378" |
| Functional Length (mm) | 162.00mm |
| Minimum Functional Length (Decimal Inch) | 5.886" |
| Protruding Length (Decimal Inch) | 7.874" |
| Protruding Length (mm) | 200.00mm |
| Clamping Length (Decimal Inch) | 1.496" |
| Clamping Length (mm) | 38.00mm |
| Overall Length (Decimal Inch) | 9.843" |
| Overall Length (mm) | 250.00mm |
| Connection Bore Depth (mm) | 52.00mm |
| Body Half Taper Angle 1 (Degree) | 5 Degree |
| Body Half Taper Angle Degree) | 3 Degree |
| Data Chip Provision | 1 |

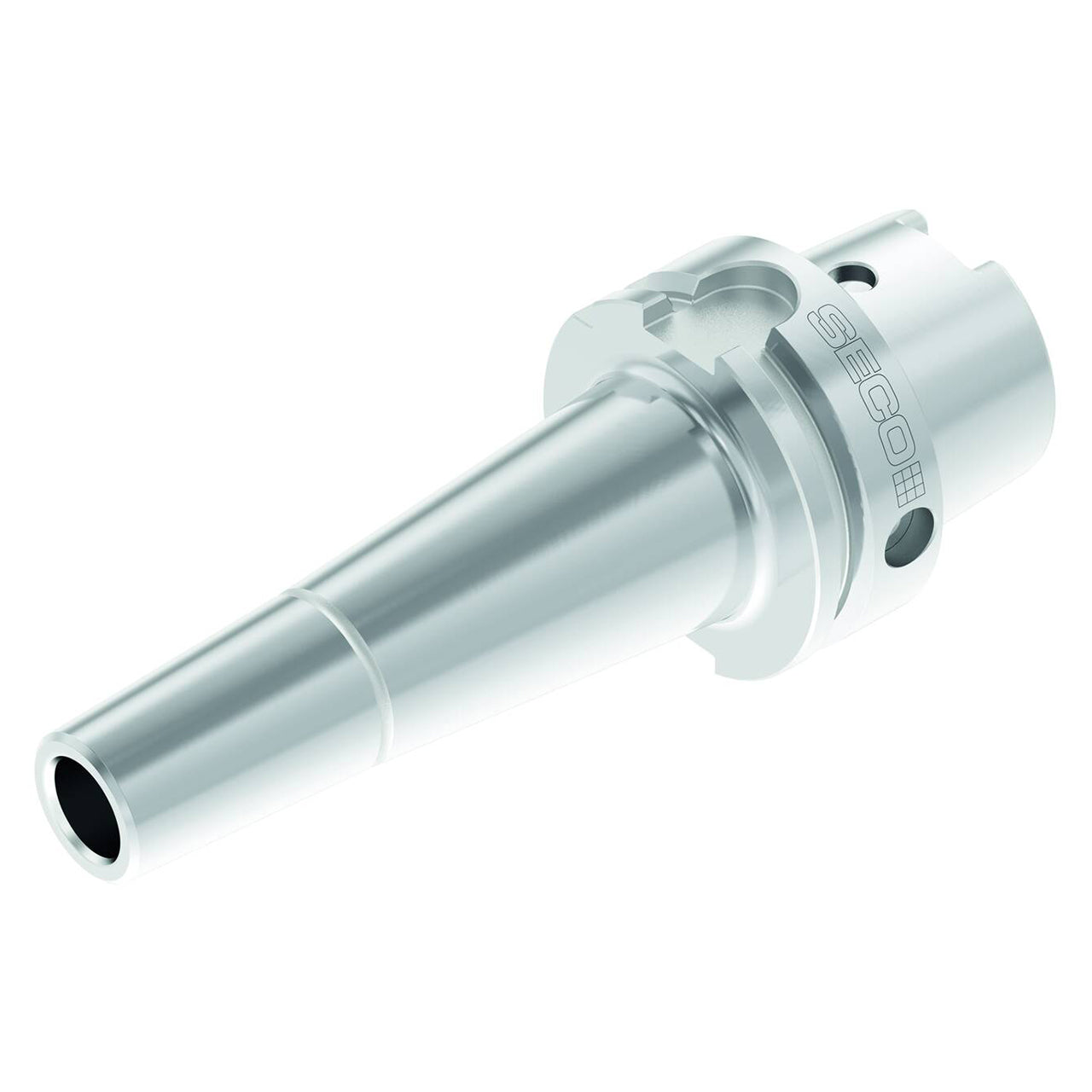

| Product Type | Shrink-Fit Tool Holder |
