Product Specifications
| Manufacturer Part Number | 00096374 |
| Body Diameter 1 (Decimal Inch) | 0.354" |
| Body Diameter 1 (mm) | 9.00mm |
| Body Diameter 2 (Decimal Inch) | 1.064" |
| Body Diameter 2 (mm) | 27.02mm |
| Connection Bore Diameter (Decimal Inch) | 0.118" |
| Connection Bore Diameter (mm) | 3.00mm |
| Minimum Connection Bore Diameter (Decimal Inch) | 0.118" |
| Minimum Connection Bore Diameter (mm) | 3.00mm |
| Maximum Connection Bore Diameter (Decimal Inch) | 0.118" |
| Maximum Connection Bore Diameter (mm) | 3.00mm |
| Body Length (Decimal Inch) | 4.449" |
| Body Length (mm) | 113.00mm |
| Body Length 1 (Decimal Inch) | 0.984" |
| Body Length 1 (mm) | 25.00mm |
| Functional Length (Decimal Inch) | 5.000" |
| Functional Length (mm) | 127.00mm |
| Minimum Functional Length (Decimal Inch) | 4.941" |
| Protruding Length (Decimal Inch) | 5.512" |
| Protruding Length (mm) | 140.00mm |
| Clamping Length (Decimal Inch) | 0.512" |
| Clamping Length (mm) | 13.00mm |
| Overall Length (Decimal Inch) | 8.087" |
| Overall Length (mm) | 205.40mm |
| Body Half Taper Angle 1 (Degree) | 5 Degree |
| Body Half Taper Angle Degree) | 3 Degree |
| Data Chip Provision | 1 |

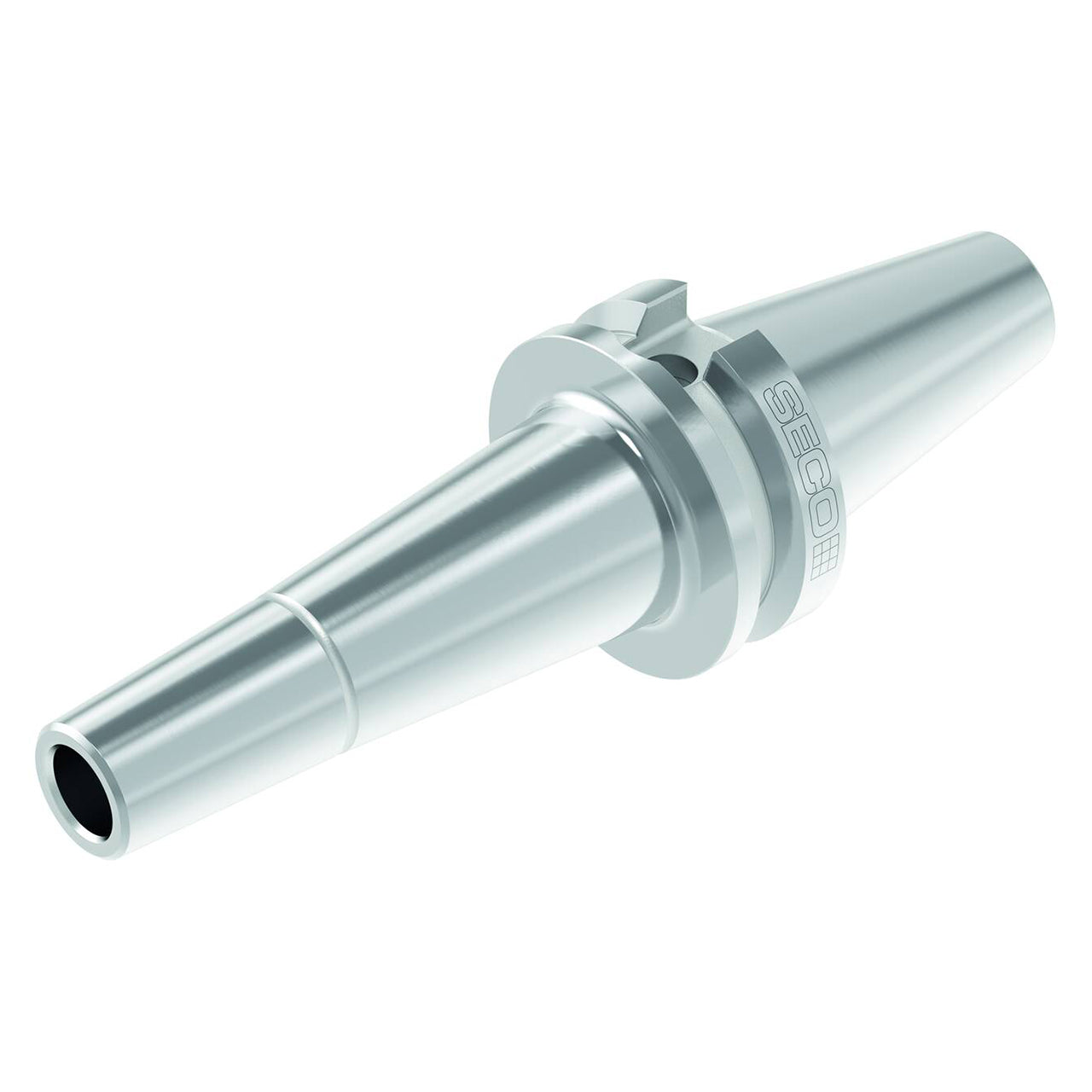

| Product Type | Shrink-Fit Tool Holder |
