Product Specifications
| Manufacturer Part Number | 00093876 |
| Minimum Cutting Diameter Internal (mm) | 27.00mm |
| Connection Diameter Machine Side (mm) | 20.00mm |
| Shank Diameter (mm) | 20.00mm |
| Functional Length (mm) | 250.00mm |
| Head Length (mm) | 25.00mm |
| Shank Width (mm) | 18.50mm |
| Maximum Radial Cutting Depth (mm) | 4.50mm |
| Maximum Cutting Depth (mm) | 4.50mm |
| Height of Tool Holder Shank (mm) | 18.00mm |
| Functional Width (mm) | 15.00mm |
| Coolant Supply Property | 1 |
| Cutting Direction | Left Hand |
| Insert Clamping System | S |
| Tool Cutting Edge Angle (Degree) | 107.5 Degree |
| Tool Cutting Edge Angle Code | Q |
| Tool Cutting Edge Angle In Feed Direction End (Degree) | 107.5 Degree |
| Tool Cutting Edge Angle In Feed Direction Side (Degree) | 127.5 Degree |
| Inclination Angle (Degree) | -6 Degree |
| Insert Shape Code | V |
| Shank Type | Cylindrical |

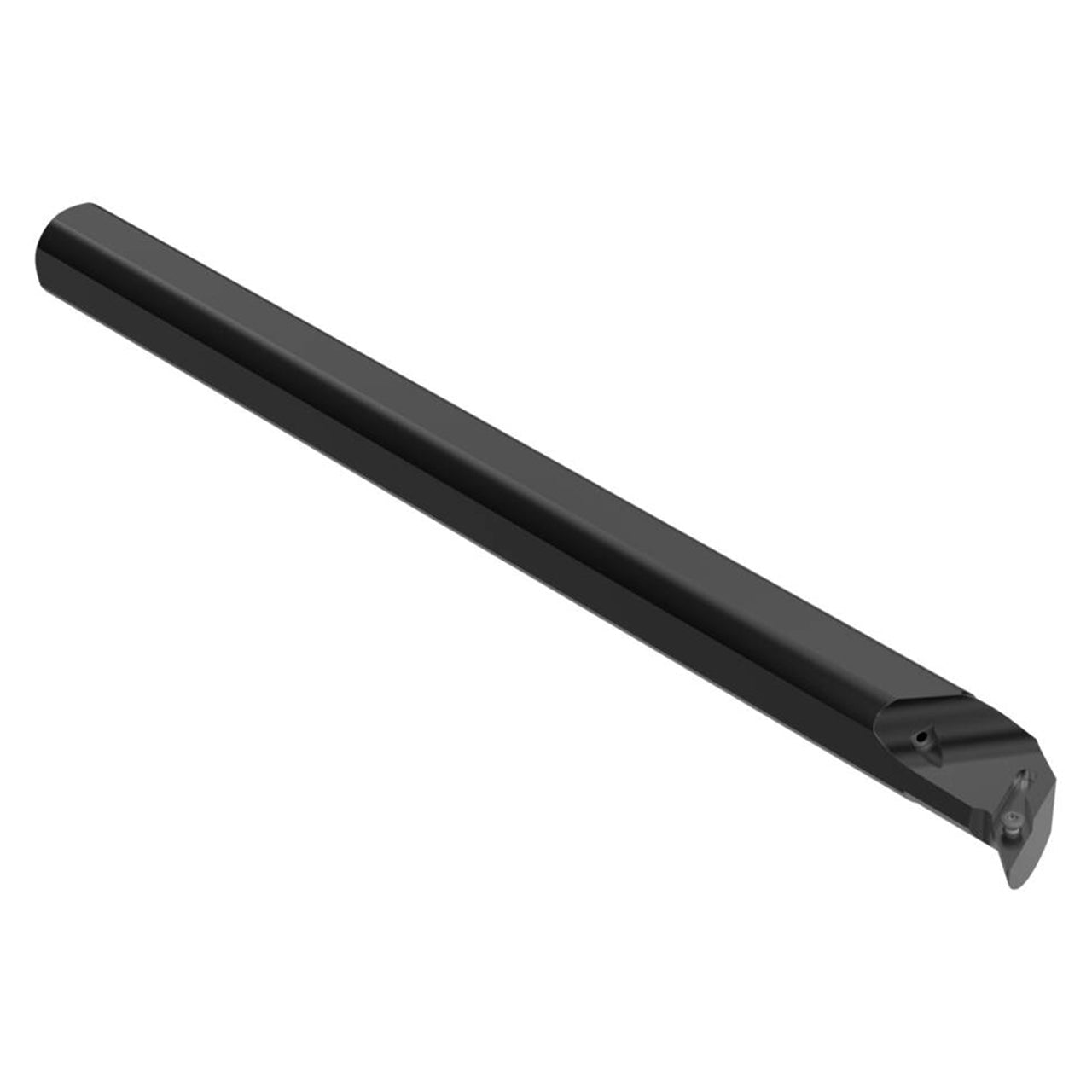

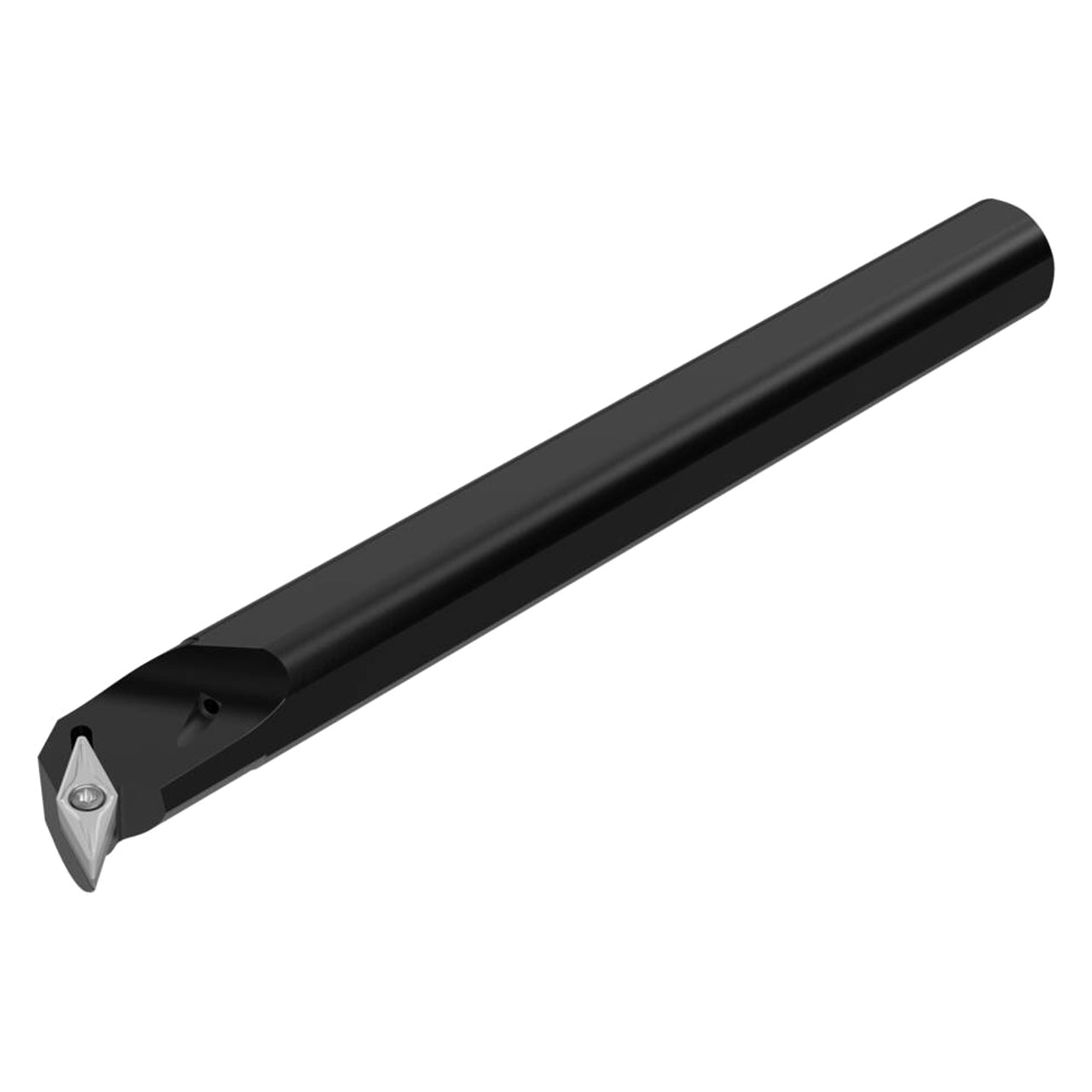

| Product Type | Indexable Boring Bar |
