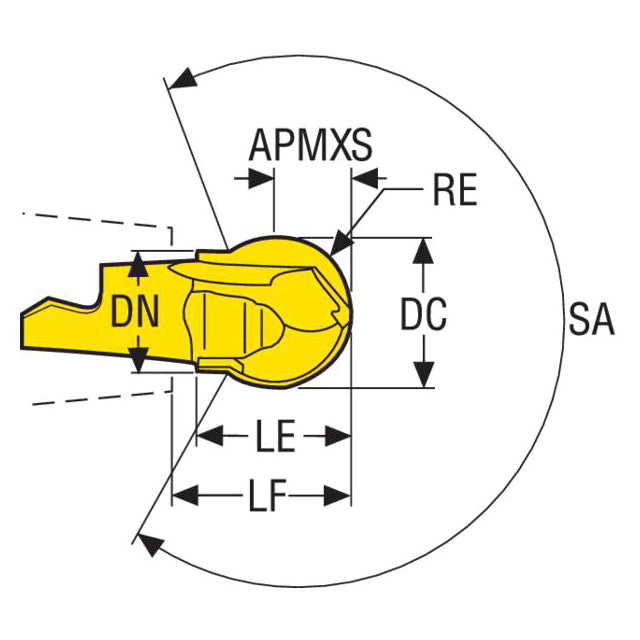

Product Specifications
| Manufacturer Part Number | 00093761 |
| Cutting Diameter (Decimal Inch) | 0.500" |
| Cutting Diameter (mm) | 12.70mm |
| Neck Diameter (Decimal Inch) | 0.394" |
| Neck Diameter (mm) | 10.00mm |
| Maximum Helical Interpolation Hole Diameter (Decimal Inch) | 0.941" |
| Maximum Helical Interpolation Hole Diameter (mm) | 23.90mm |
| Minimum Helical Interpolation Hole Diameter (Decimal Inch) | 0.539" |
| Minimum Helical Interpolation Hole Diameter (mm) | 13.70mm |
| Maximum Depth of Cut (Decimal Inch) | 0.250" |
| Maximum Depth of Cut (mm) | 6.35mm |
| Cutting Edge Effective Length (Decimal Inch) | 0.488" |
| Cutting Edge Effective Length (mm) | 12.40mm |
| Functional Length (Decimal Inch) | 0.534" |
| Functional Length (mm) | 13.56mm |
| Torque (Nm) | 12Nm |
| Cutting Edge Count | 1 |
| Material | Carbide |
| Tool Cutting Edge Angle In Feed Direction Side (Degree) | 90 Degree |
| Corner Radius (Decimal Inch) | 0.250" |
| Corner Radius (mm) | 6.35mm |
| Maximum Ramping Angle (Degree) | 15 Degree |
| Sphere Angle (Degree) | 256 Degree |
| Peripheral Effective Cutting Edge Count | 2 |
| Peripheral Edges In The Tool | 2 |
| Product Type | Profile Milling Tip Insert |
