Product Specifications
| Manufacturer Part Number | 00093024 |
| Body Diameter 1 (Decimal Inch) | 2.047" |
| Body Diameter 1 (mm) | 52.00mm |
| Minimum Connection Bore Diameter (Decimal Inch) | 0.125" |
| Minimum Connection Bore Diameter (mm) | 3.18mm |
| Maximum Connection Bore Diameter (Decimal Inch) | 0.750" |
| Maximum Connection Bore Diameter (mm) | 19.05mm |
| Body Length (Decimal Inch) | 2.717" |
| Body Length (mm) | 69.00mm |
| Protruding Length (Decimal Inch) | 3.740" |
| Protruding Length (mm) | 95.00mm |
| Overall Length (Decimal Inch) | 5.000" |
| Overall Length (mm) | 127.00mm |
| Connection Bore Depth (mm) | 62.99mm |

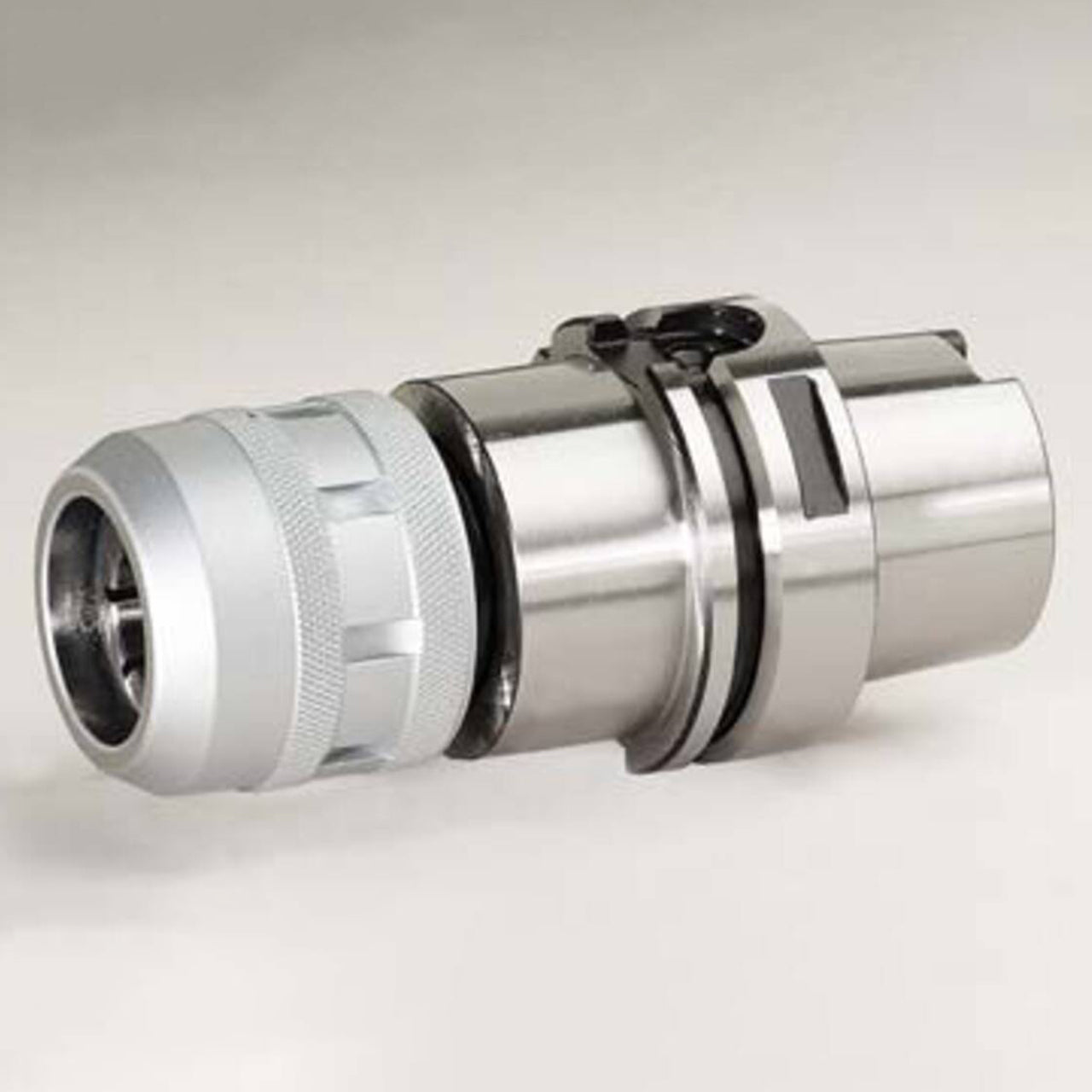

| Product Type | Milling Chuck |
