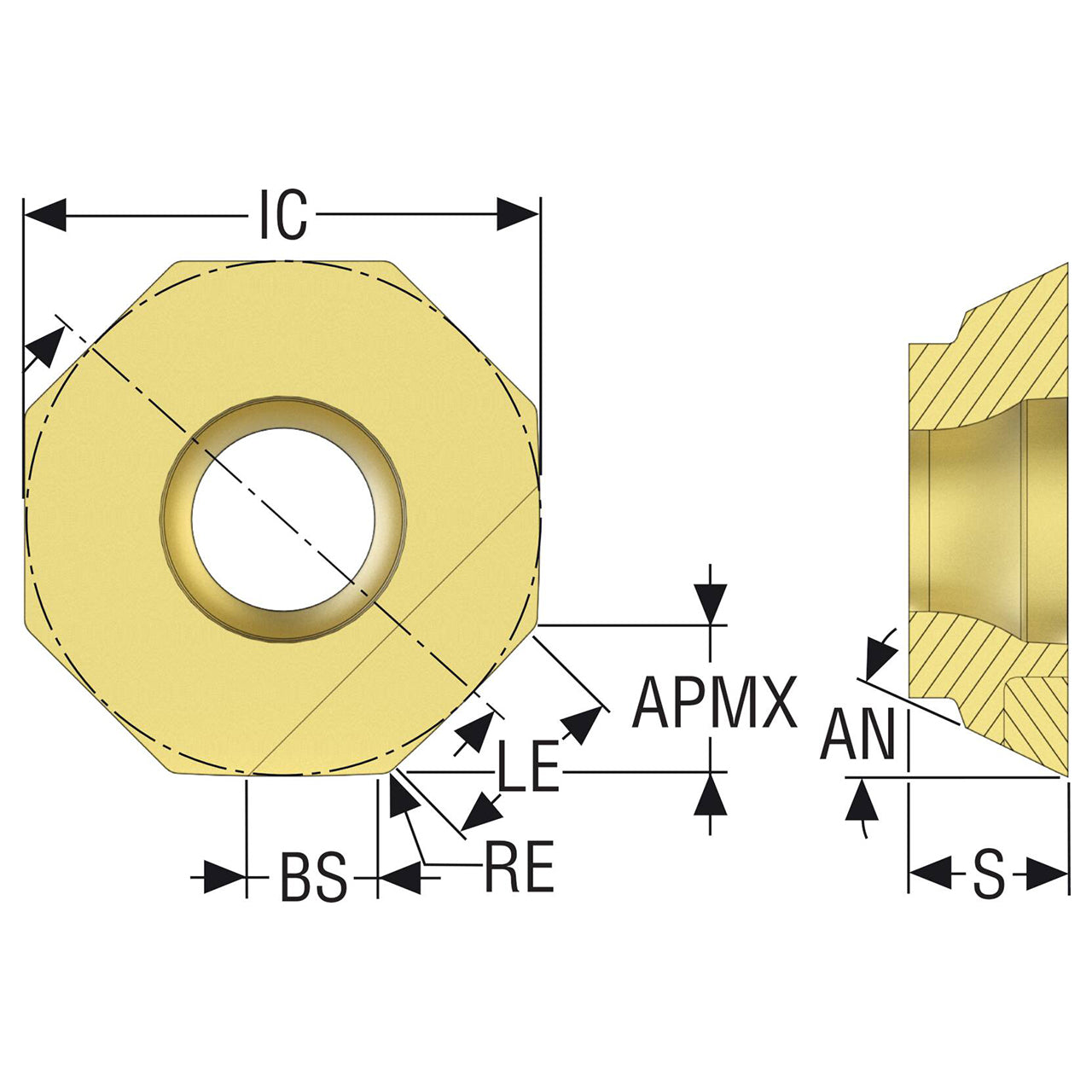

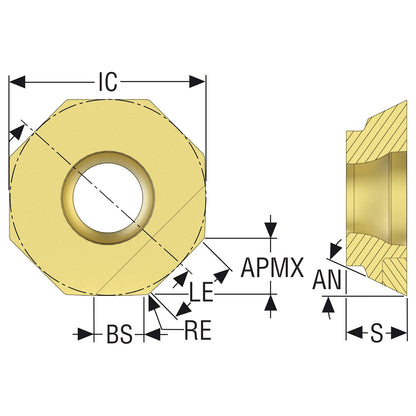

Product Specifications
| Manufacturer Part Number | 00092120 |
| Fixing Hole Diameter (Decimal Inch) | 0.177" |
| Fixing Hole Diameter (mm) | 4.50mm |
| Inscribed Circle Diameter (Decimal Inch) | 0.504" |
| Inscribed Circle Diameter (mm) | 12.79mm |
| Wiper Edge Length (Decimal Inch) | 0.095" |
| Wiper Edge Length (mm) | 2.40mm |
| Cutting Edge Effective Length (Decimal Inch) | 0.138" |
| Cutting Edge Effective Length (mm) | 3.50mm |
| Maximum Depth of Cut (Decimal Inch) | 0.118" |
| Maximum Depth of Cut (mm) | 3.00mm |
| Corner Radius (Decimal Inch) | 0.020" |
| Corner Radius (mm) | 0.50mm |
| Insert Thickness (Decimal Inch) | 0.156" |
| Insert Thickness (mm) | 3.97mm |
| Clearance Angle Major (Degree) | 26 Degree |
| Cutting Edge Condition Code | F |
| Cutting Edge Count | 1 |
| Cutting Geometry Type | M |
| Cutting Geometry Type Technical | M05 |
| Pocket Seat Code of The Cutter | OF..05 |
| Insert Size And Shape | OFEX05T3 |
| Insert Hand | Neutral |
| Material | PCD |
| Product Type | Milling Insert |
