Product Specifications
| Manufacturer Part Number | 00089977 |
| Body Diameter (Decimal Inch) | 1.752" |
| Body Diameter (mm) | 44.50mm |
| Connection Bore Diameter (Decimal Inch) | 0.750" |
| Connection Bore Diameter (mm) | 19.05mm |
| Minimum Connection Bore Diameter (Decimal Inch) | 0.750" |
| Minimum Connection Bore Diameter (mm) | 19.05mm |
| Maximum Connection Bore Diameter (Decimal Inch) | 0.750" |
| Maximum Connection Bore Diameter (mm) | 19.05mm |
| Body Length (Decimal Inch) | 1.510" |
| Body Length (mm) | 38.35mm |
| Functional Length (Decimal Inch) | 1.380" |
| Functional Length (mm) | 35.05mm |
| Minimum Functional Length (Decimal Inch) | 1.380" |
| Functional Length Secondary (Decimal Inch) | 1.378" |
| Functional Length Secondary (mm) | 35.00mm |
| Protruding Length (Decimal Inch) | 2.360" |
| Protruding Length (mm) | 59.94mm |
| Clamping Length (Decimal Inch) | 2.008" |
| Clamping Length (mm) | 51.00mm |
| Overall Length (Decimal Inch) | 3.541" |
| Overall Length (mm) | 89.94mm |
| Body Half Taper Angle Degree) | 60 Degree |

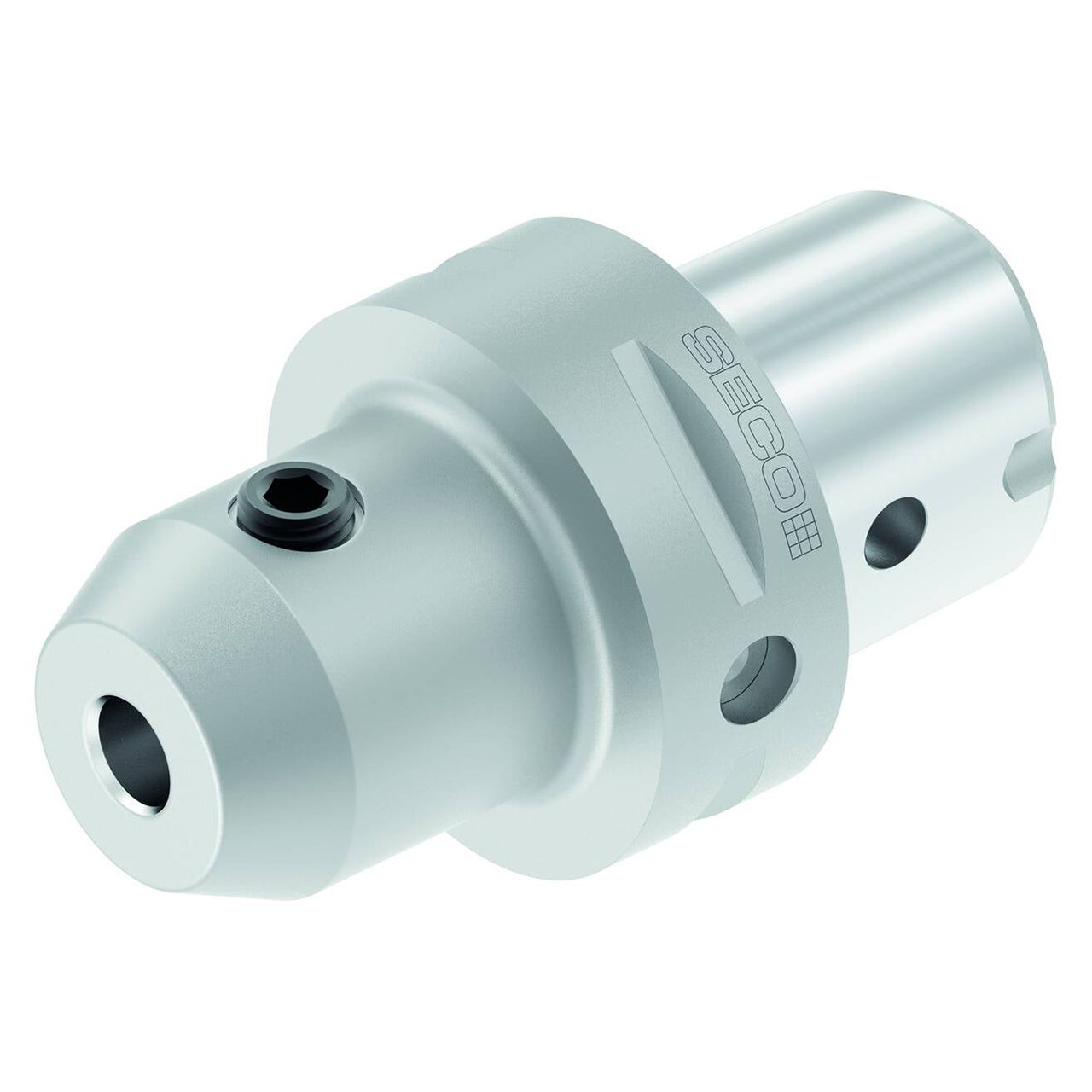

| Product Type | End Mill Holder |
