Product Specifications
| Manufacturer Part Number | 00087573 |
| Cutting Diameter (Decimal Inch) | 0.750" |
| Cutting Diameter (mm) | 19.05mm |
| Connection Diameter Machine Side (Decimal Inch) | 0.750" |
| Connection Diameter Machine Side (mm) | 19.05mm |
| Shank Diameter (Decimal Inch) | 0.750" |
| Shank Diameter (mm) | 19.05mm |
| Functional Length (Decimal Inch) | 3.015" |
| Functional Length (mm) | 76.58mm |
| Protruding Length (Decimal Inch) | 2.047" |
| Protruding Length (mm) | 52.00mm |
| Shank Length (Decimal Inch) | 2.583" |
| Shank Length (mm) | 65.60mm |
| Overall Length (Decimal Inch) | 4.032" |
| Overall Length (mm) | 102.40mm |
| Number of Flute | 2 |
| Maximum Depth of Cut (Decimal Inch) | 0.835" |
| Maximum Depth of Cut (mm) | 21.20mm |
| Tool Cutting Edge Angle (Degree) | 90 Degree |
| Tool Cutting Edge Angle In Feed Direction End (Degree) | 90 Degree |
| Tool Cutting Edge Angle In Feed Direction Side (Degree) | 90 Degree |
| Maximum Rotational Speed (rpm) | 26200 rpm |
| Sphere Angle (Degree) | 180 Degree |
| Coolant Entry Style Code | 1 |
| Cutting Pitch Density | Normal |
| Pocket Seat Code of The Cutter | 218.19-100 / SPMX0703AP |
| Coolant Exit Style Code | 3 |
| Cutting Item Material Type | Toolox 44HRc |
| Shank Type | Weldon |
| Insert Shape Code | 218.19 / S |

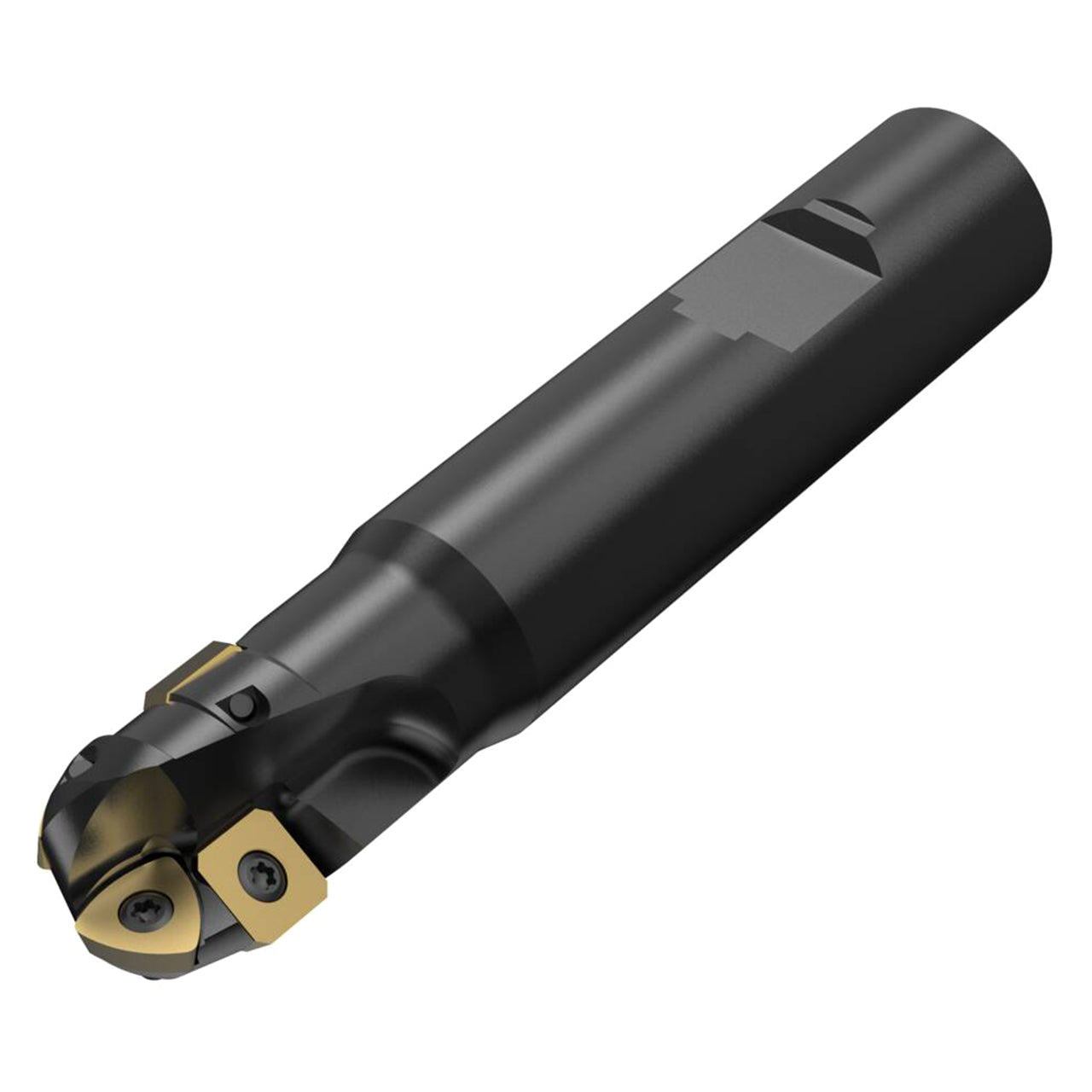

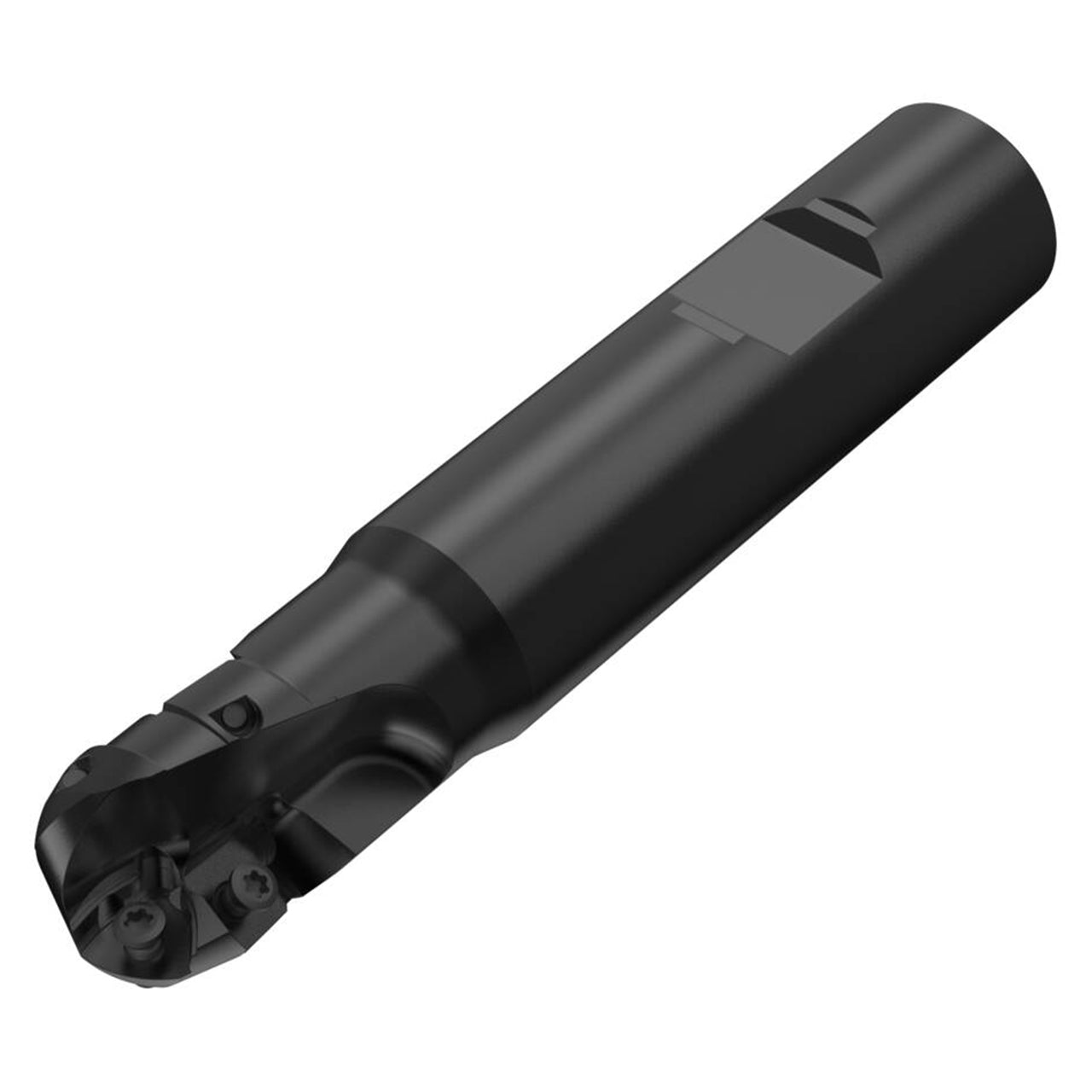

| Product Type | Indexable Ball Nose End Mill |
