Product Specifications
| Manufacturer Part Number | 00086938 |
| Body Diameter (Decimal Inch) | 0.551" |
| Body Diameter (mm) | 14.00mm |
| Connection Bore Diameter (Decimal Inch) | 0.315" |
| Connection Bore Diameter (mm) | 8.00mm |
| Minimum Cutting Diameter (Decimal Inch) | 0.591" |
| Minimum Cutting Diameter (mm) | 15.00mm |
| Maximum Cutting Diameter (Decimal Inch) | 0.728" |
| Maximum Cutting Diameter (mm) | 18.50mm |
| Body Length (Decimal Inch) | 2.953" |
| Body Length (mm) | 75.00mm |
| Functional Length (Decimal Inch) | 6.102" |
| Functional Length (mm) | 155.00mm |
| Protruding Length (Decimal Inch) | 4.724" |
| Protruding Length (mm) | 120.00mm |
| Usable Length (Decimal Inch) | 4.331" |
| Usable Length (mm) | 110.00mm |
| Overall Length (Decimal Inch) | 4.724" |
| Overall Length (mm) | 120.00mm |

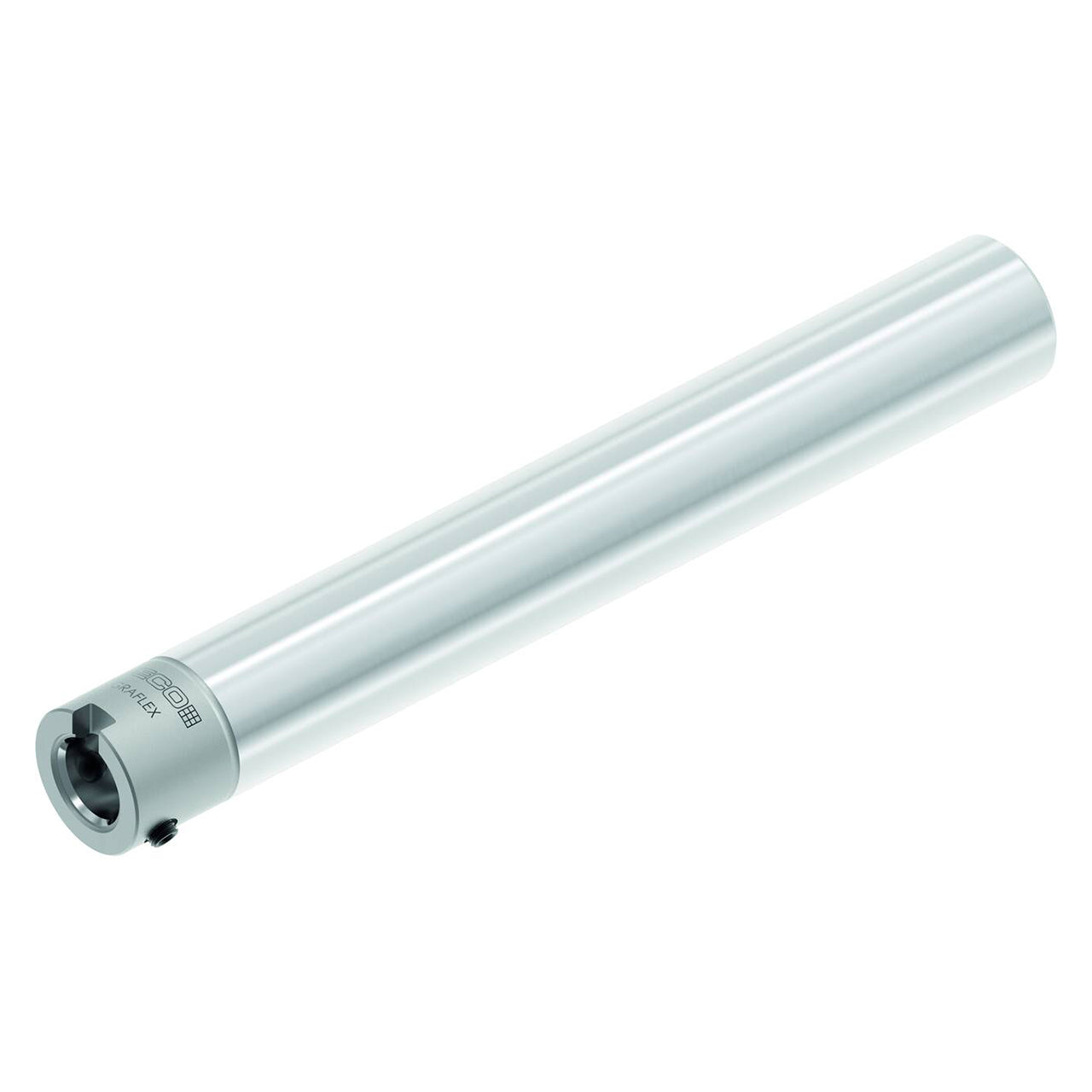

| Product Type | Boring Head Shank |
