Product Specifications
| Manufacturer Part Number | 00086840 |
| Cutting Diameter (Decimal Inch) | 3.150" |
| Cutting Diameter (mm) | 80.00mm |
| Connection Bore Diameter (Decimal Inch) | 1.000" |
| Connection Bore Diameter (mm) | 25.40mm |
| Maximum Cutting Diameter (Decimal Inch) | 3.622" |
| Maximum Cutting Diameter (mm) | 92.00mm |
| Contact Surface Diameter Machine Side (Decimal Inch) | 2.441" |
| Contact Surface Diameter Machine Side (mm) | 62.00mm |
| Functional Length (Decimal Inch) | 1.969" |
| Functional Length (mm) | 50.00mm |
| Keyway Width (Decimal Inch) | 0.382" |
| Keyway Width (mm) | 9.70mm |
| Maximum Depth of Cut (Decimal Inch) | 0.138" |
| Maximum Depth of Cut (mm) | 3.50mm |
| Depth of Key Way (Decimal Inch) | 0.224" |
| Depth of Key Way (mm) | 5.70mm |
| Tool Cutting Edge Angle (Degree) | 43 Degree |
| Tool Cutting Edge Angle In Feed Direction End (Degree) | 90 Degree |
| Tool Cutting Edge Angle In Feed Direction Side (Degree) | 43 Degree |
| Rake Radial Angle (Degree) | 5 Degree |
| Rake Orthogonal Angle (Degree) | 15 Degree |
| Cutting Direction | Right Hand |
| Maximum Rotational Speed (rpm) | 9400 rpm |
| Cutting Pitch Differential | 1 |
| Cutting Pitch Density | Normal |
| Pocket Seat Code of The Cutter | OF..05 |
| Cutting Item Material Type | Steel |
| Shank Type | Arbor |
| Insert Shape Code | O |

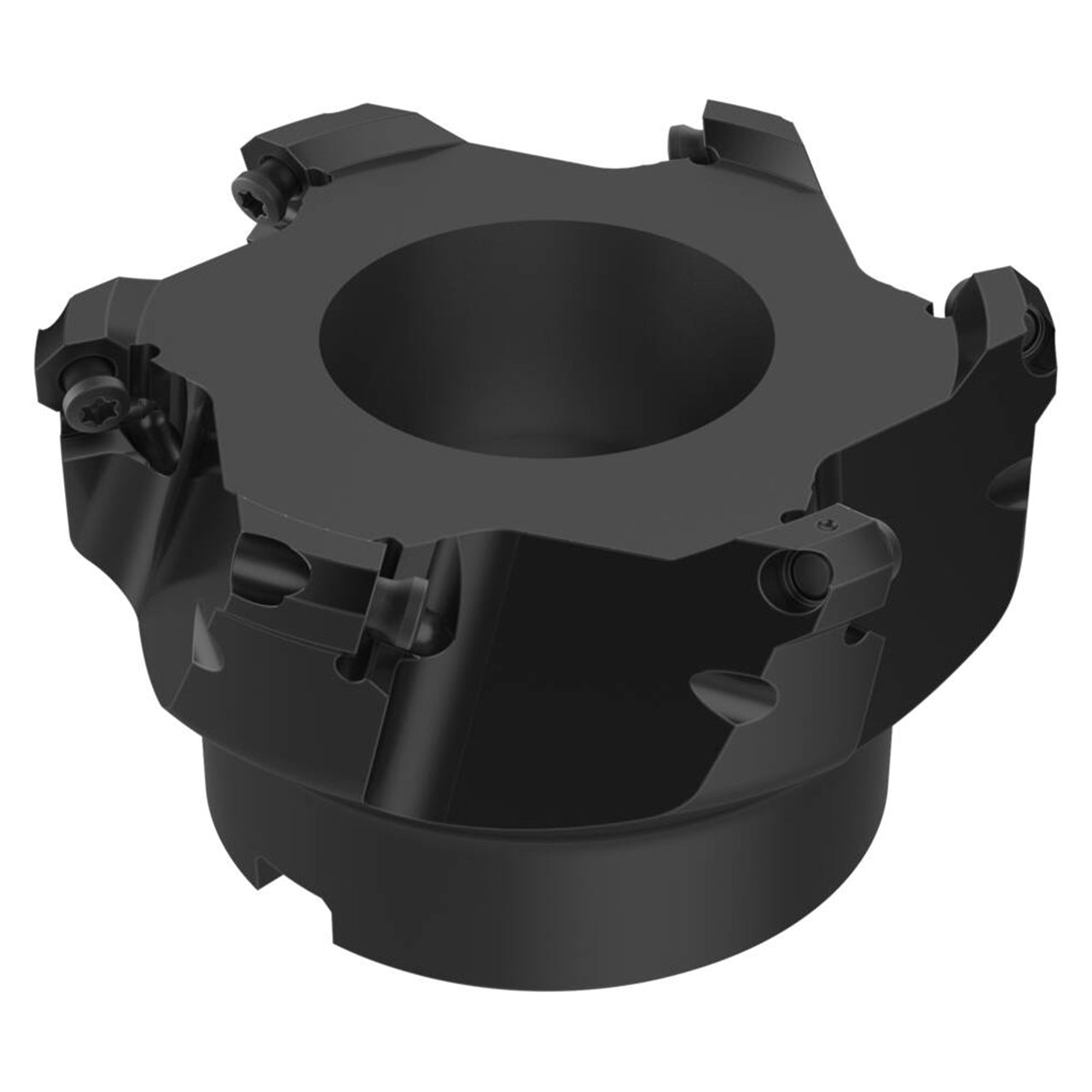

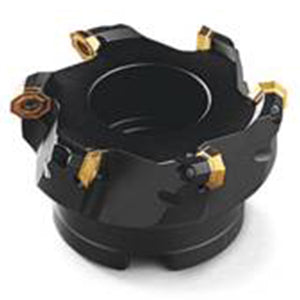

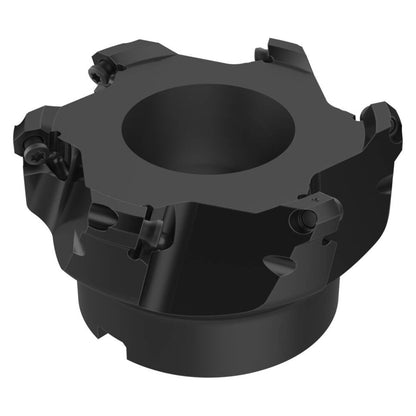

| Product Type | Indexable Face Mills |
